The Commercial Vehicles blind area early warning radar system is developed based on the millimeter wave sensor chip, which is highly intelligent, precise and precise ranging sensor module. The sensor adopts FMCW waveform, combined with radar processing, and has a built-in intelligent moving object sensing algorithm to detect the approaching state of moving targets in the early warning area monitor. And remind drivers and pedestrians through indoor and outdoor sound and light alarms and can trigger enlarged monitoring pictures at the same time.

Main Features:

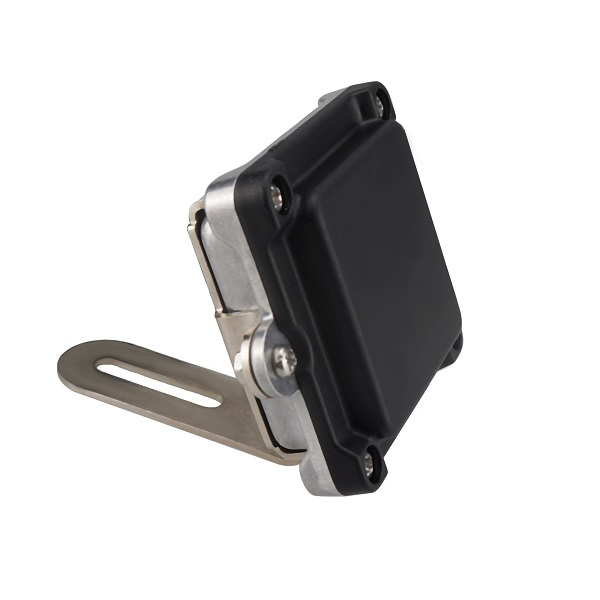

1. 24Ghz millimeter wave Radar Control box
2. Adopt wide voltage power supply design, can support DC12-36V
3. Professional design of large host in blind area, better and more durable
4. Professional aviation connection line speed, waterproof, dustproof, more reliable
5. Interior Sound and Light Alarm, 4 modes alarm voice settings, alarm voice can be customized
6. External Sound and Light Alarm, Default is DaDaDa audio, alarm voice can be customized
7. Early warning area Length:12M Width:3M

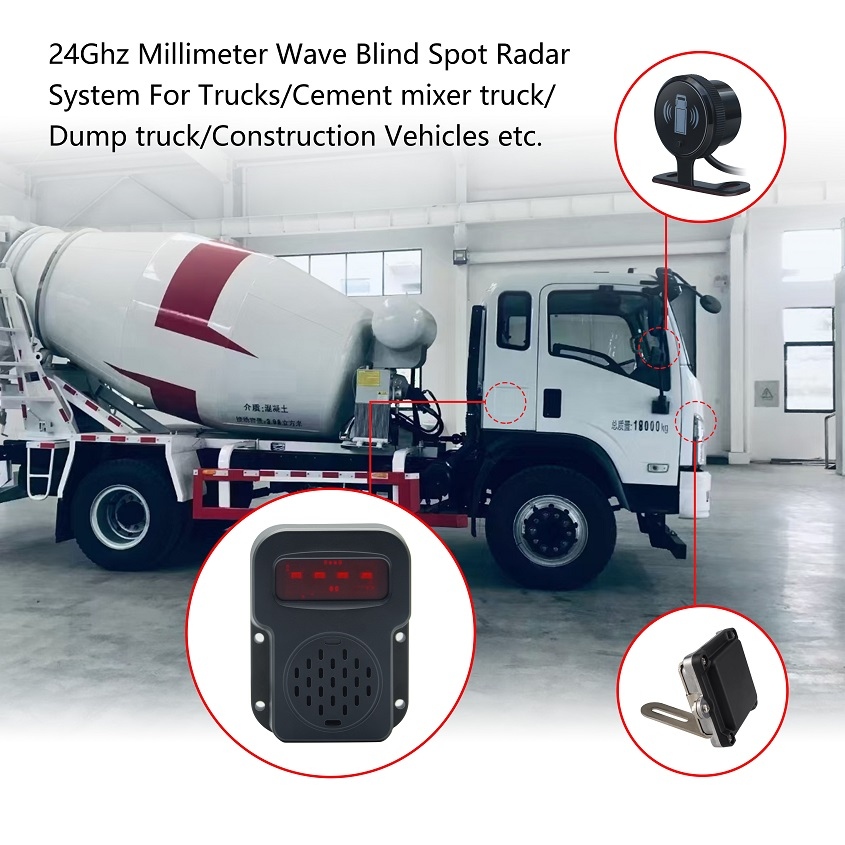

8. Mainly application for Trucks/Cement mixer truck/Dump truck/Construction Vehicles etc.

Technical Parameters：
24Ghz millimeter wave controller	Rated voltage	DC24V
	Operating Voltage	DC12V-36V
	Power consumption	≤300mA
	radar band	24GHz
	Modulation	FMCW
	Ranging accuracy	0.1 Meter
	distance resolution	0.55M/S
	Detection range	12M
	angle	Horizontal 45° Vertical 20°
	Warning speed range	1KM/H~76KM/H
	Start Time	＜1S
	update rate	20MS
	Self-test function	yes
	Working power	＜3W
	Working temperature	-40~85℃
	Installation method	Right side or left side of vehicle body
Interior Sound and Light Alarm	Early warning mode	ACC mode (silent) Steering mode (sound and light, more sensitive early warning)
	Rated voltage	DC24V
	Working voltage	DC12V-36V
	Power consumption	＜2W
	Alarm mode	Voice+light
	Light mode	Steady or flashing
	Start reminder	Please check the surrounding conditions of the vehicle and pay attention to safety
	Reminder voice	1. Please  attention the right
		2. Da da sound
		3. Please  attention to the left
		4. Mute
External Sound and Light Alarm	Start reminder	Default is DaDaDa audio, alarm voice can be customized
	Rated voltage	DC24V
	Working voltage	DC12V-36V
	Alarm method	You have entered the blind spot, please do not approach + lights
	Alarm decibel	120dB±10%
	Power consumption	＜4W

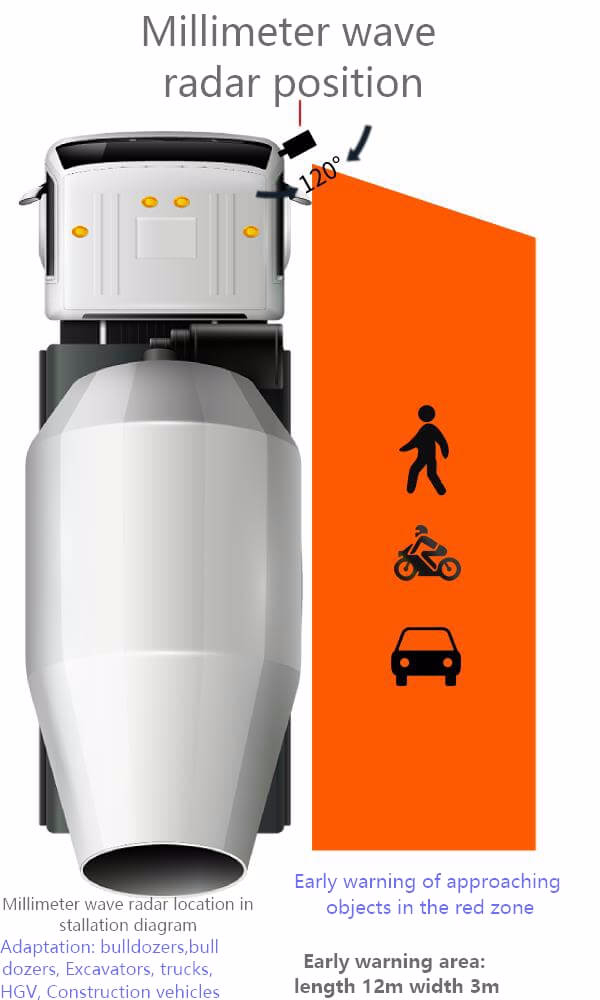

Schematic diagram of early warning:

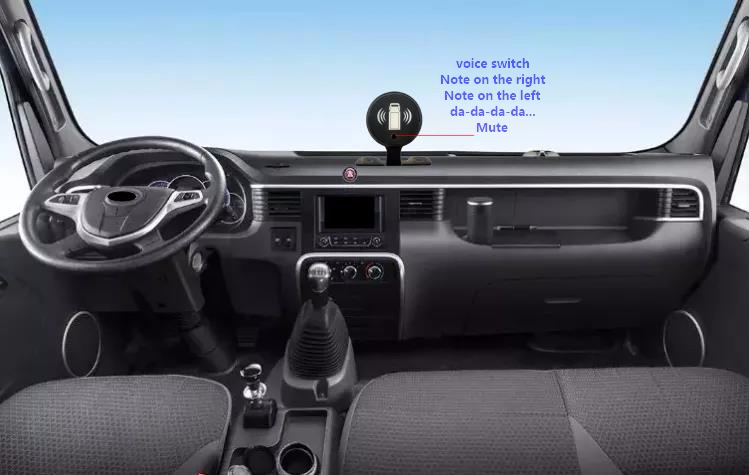

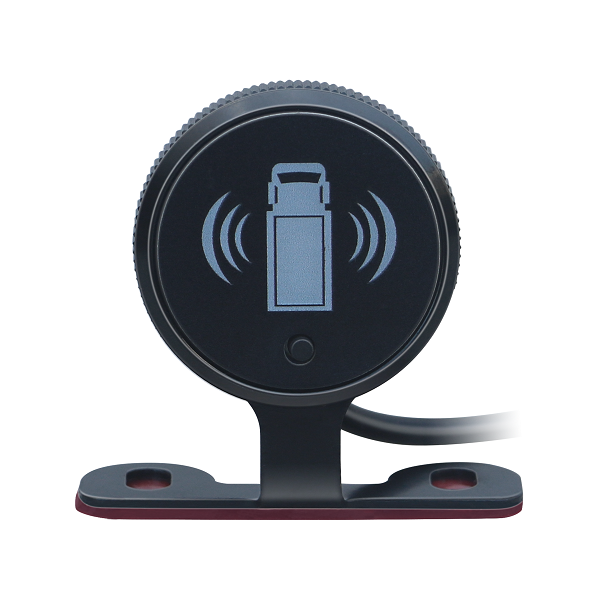

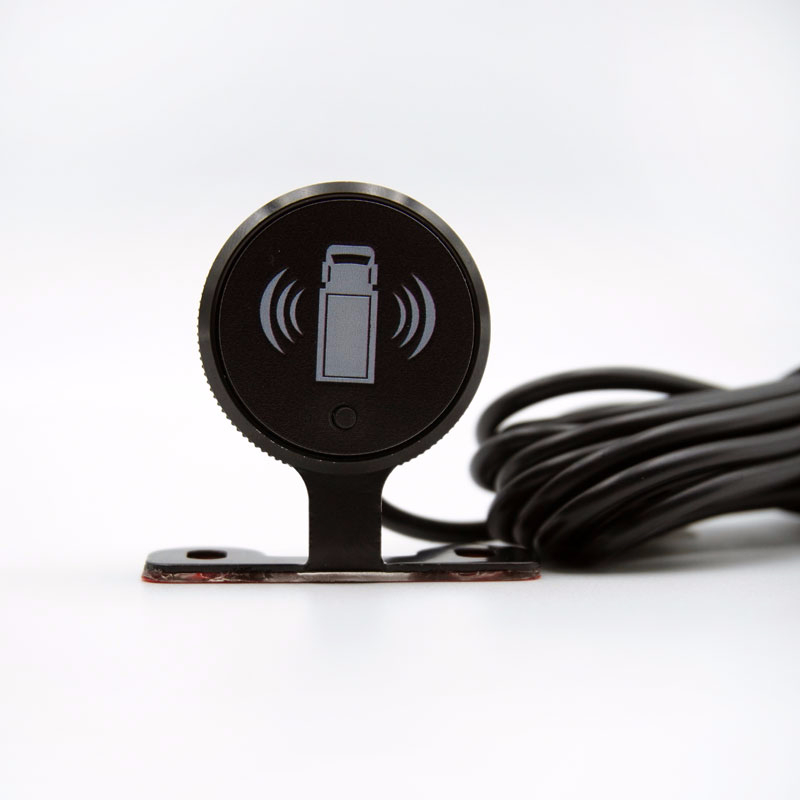

Interior Sound and Light Alarm：

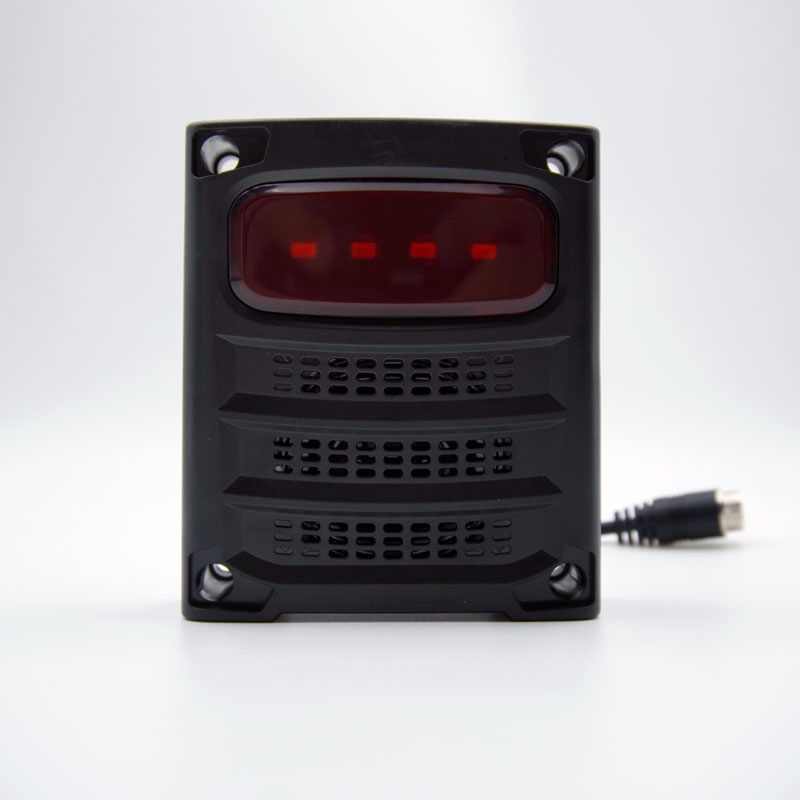

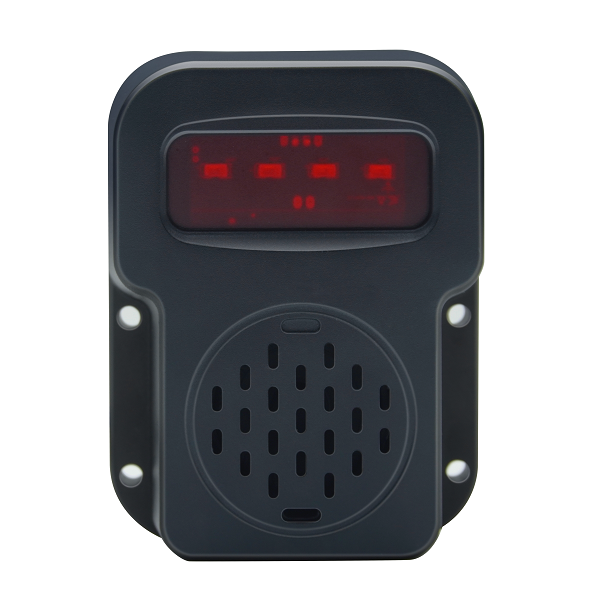

External sound and light alarm:

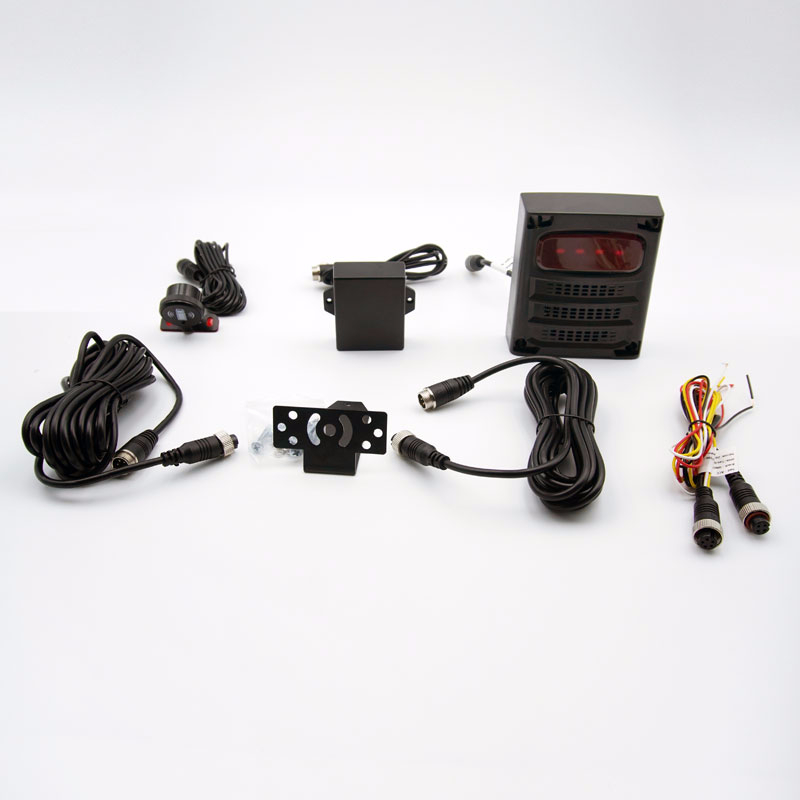

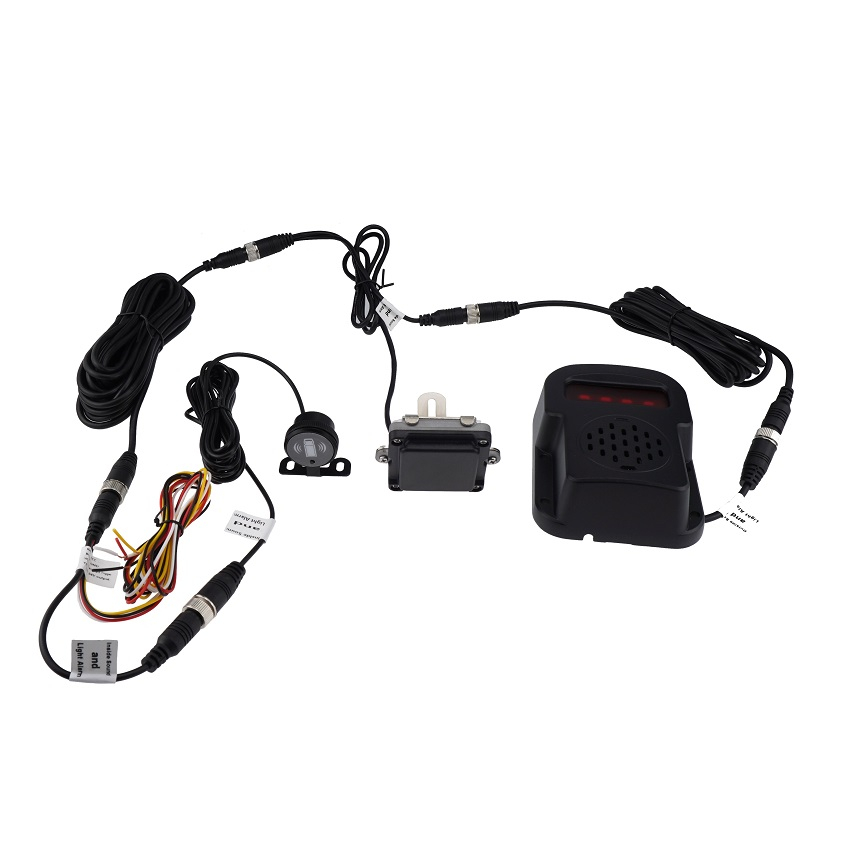

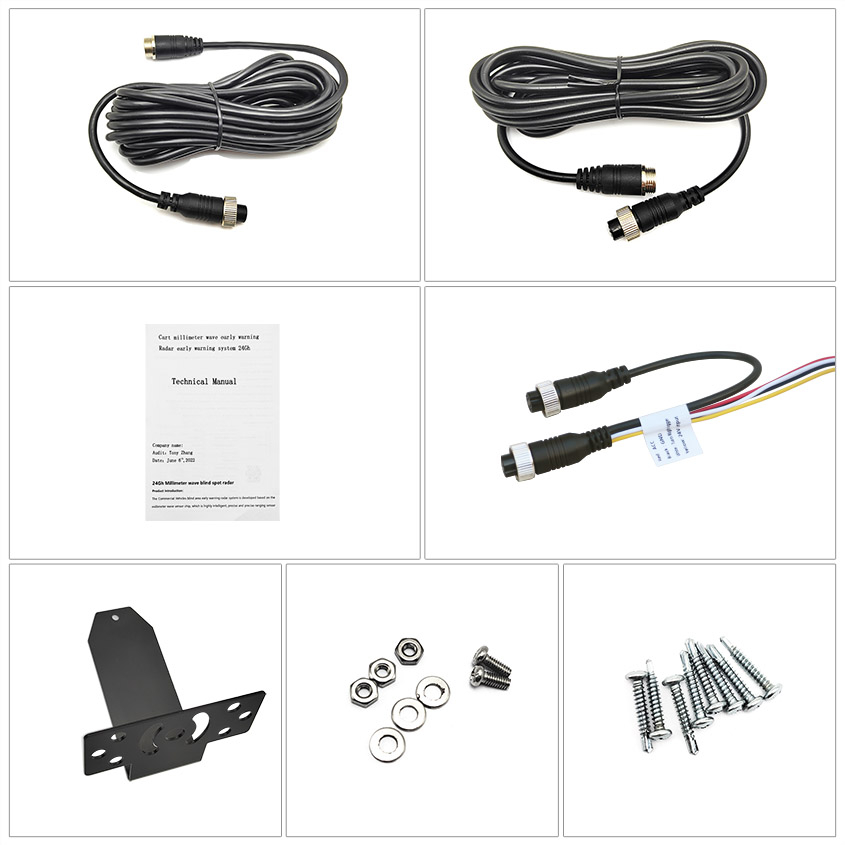

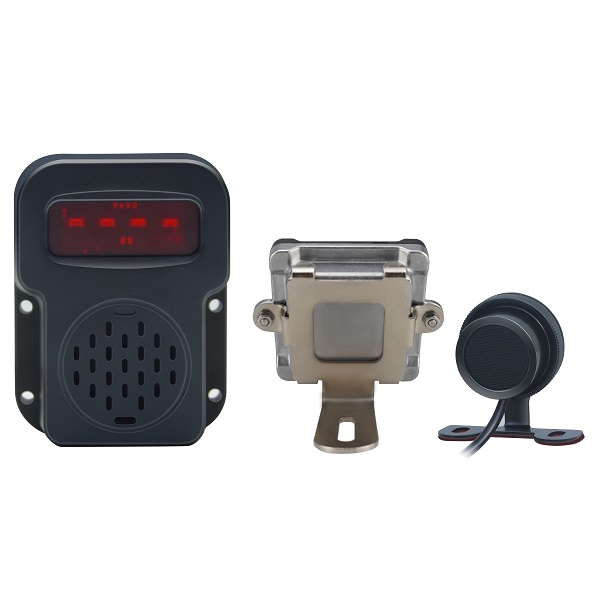

Item included:
