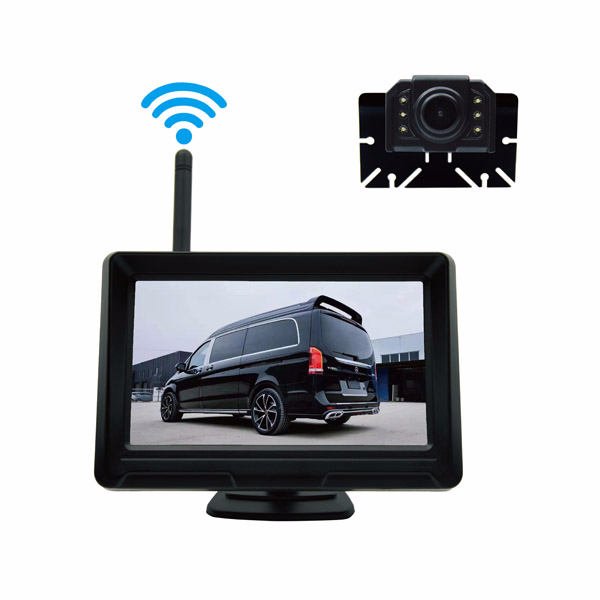

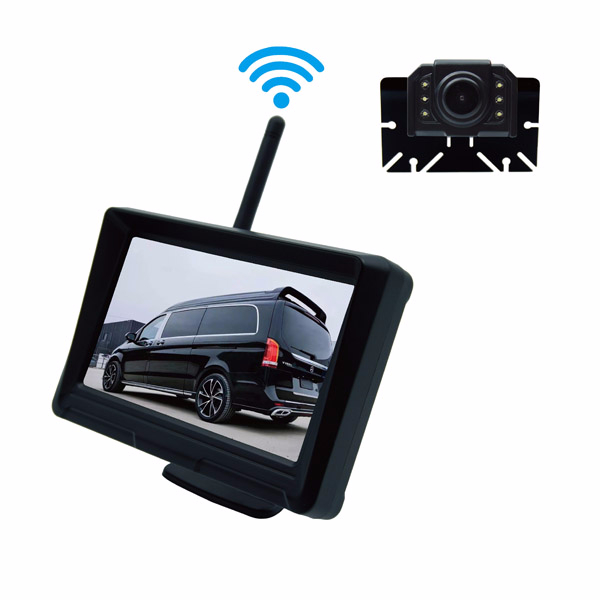

Item number:ST-502WRS
1. 5inch HD Monitor, 800*480*RGB,
2. 170 degree angle view,1.0MP IP68 waterproof
3. 6pcs high-bright LEDs driving assist at night or dark environment
4. Applied for both backing up & driving observation assist
5. Guide line can be choose
6. Mainly for Car Rv Suv Trailer Rv
5" HD 2.4G digital wireless Monitor Specification | |
LCD Size | 5Inch IPS |
Resolution | 800*480*RGB |
TV System | PAL/NTSC |
Power supply | DC 12-24V |
Brightness | 400 cd/m2 |
Viewing angle | L/R: 85/85 U/D: 85/85 |
Operating Frequency | 2.4GHz~2.4835GHz |
RX Sensitivity | -85dBm@10%PER |
Power consumption | 240±20mA@DC12V |
Receiver Distance | 100m |
Operating temperature | -20℃~+70℃ |
Storage temperature | -30℃~+80℃ |
HD 720P 2.4G Digital Wireless Camera | |
Image sensor | 1/3" CMOS HD |
Effective Resolution | 1280*720P |
Viewing angle | 170 Degree |
Power Supply | DC 12V |
Waterproof rating | IP68 |
Transmission Distance(barrier free) | 200m |
Transmission Power | 24dB |
IR Leds | 6pcs |
Night vision distance | 8-10M |
Operation Frequency | 2.4Ghz-2.4835Ghz |
Minimum Illuination | 0.2Lux |
AGC | AUTO |
BLC | AUTO |
White Balance | AUTO |
Working temperature | -20℃ to 70℃ |
