PRODUCT INTRODUCTION

Item number: ST-722WPM

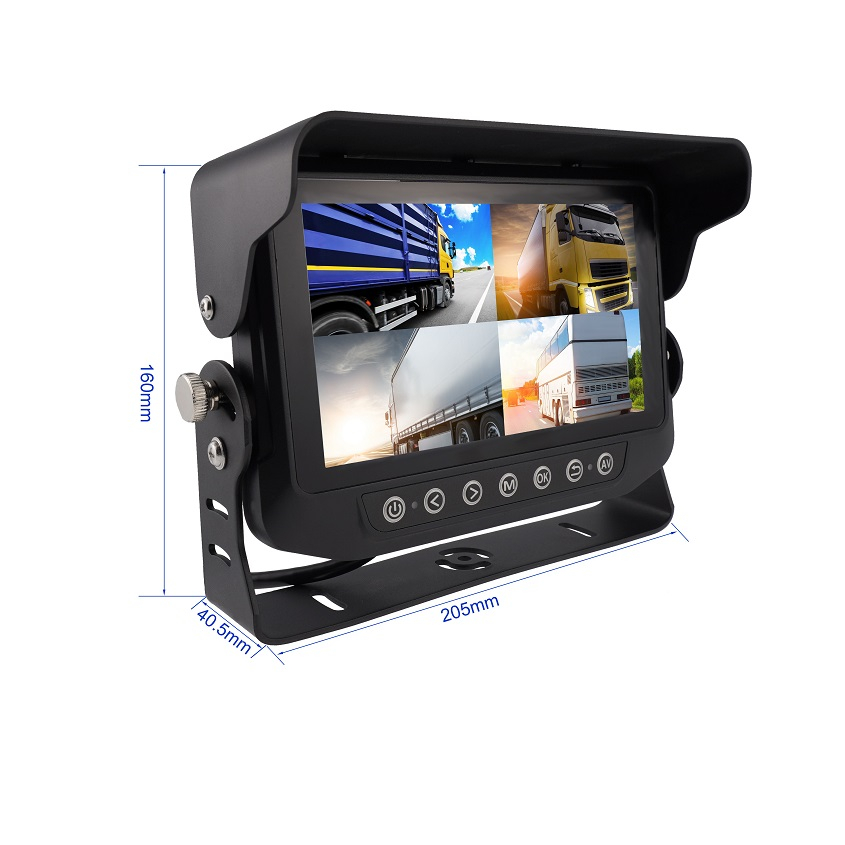

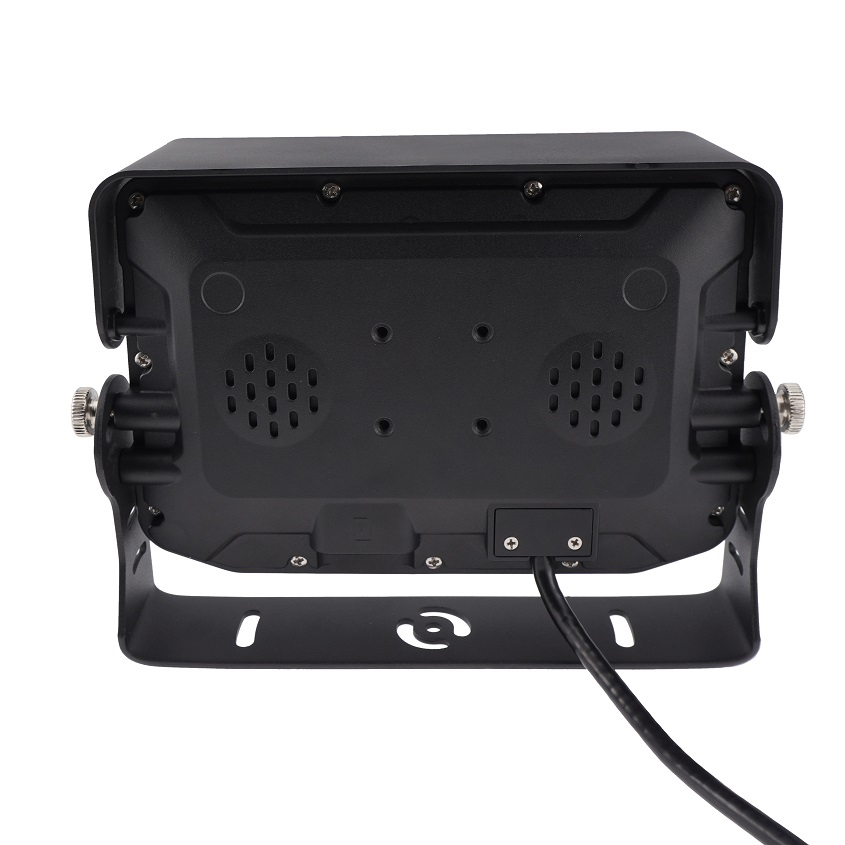

7-Inch HD 1080P Quad Waterproof Monitor

Overview:

The 7-inch 1080P Quad Waterproof Monitor is designed for trucks, RVs, trailers, buses, and heavy-duty machinery that require a reliable multi-view monitoring solution. Featuring a true HD 1080P display, IP69K waterproof construction, and four camera inputs, this monitor provides clear visibility in all driving in harsh environments.

Products Specs:

Material of Casing: Metal

Video format: AHD/CVBS

Screen size: 7"IPS HD 1080P Screen

Resolution: 1024(W)*RGB*600(H)

Display ratio: 16:9

System: PAL/NTSC

Voltage:DC 12-32V

Waterproof Level: IP69K

Brightness: LED Luminance 600cd/m2

Contrast: 500:1

Power consumption: 12W

Color: black

Four Video AV input,3 trigger wires

Split modes：13types

Adjustable image：Full /2/3/4 image

Viewing angle: L/R 85/85 U/D 85/85

Connector: 4Pin aviation

Operating Temperature: -30℃～70℃

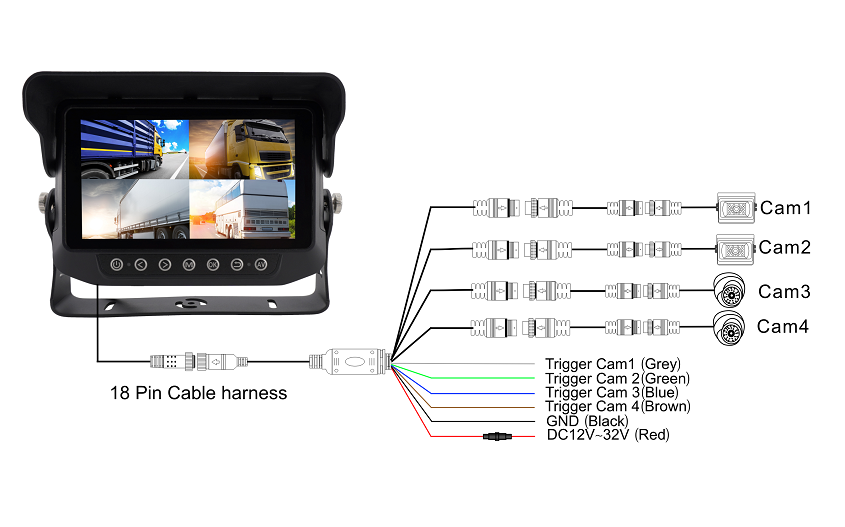

Wire Diagram:

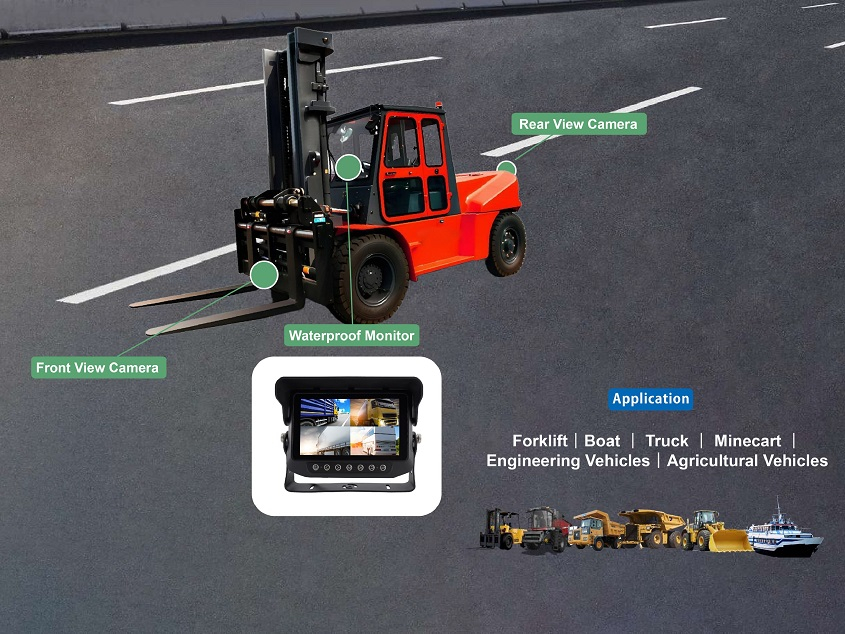

Product Applications:

Commercial Trucks & Buses – Monitor rear, side, and blind spots

RVs & Camper Vans – Safer reversing and parking assistance

Agricultural Machinery – Tractors, harvesters, and heavy equipment

Construction Vehicles – Excavators, cranes, and forklifts

Marine Use – Boats and ships requiring rugged waterproof monitoring

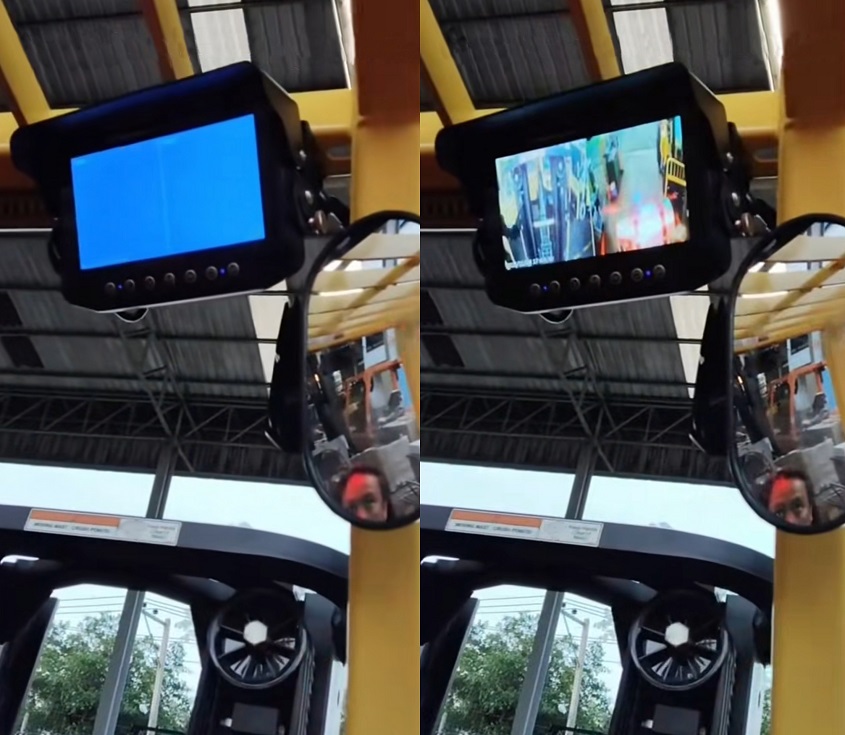

Standtop's 7-inch 1080p waterproof quad monitor works on Forklift, it was provided by our overseas customer by Sep,2025, the below image have been compressed:

In the box:

1 x 7" 1080P Waterproof Monitor
1 x U-shaped mount bracket or dash mount bracket
1 x Power Harness
1 x Screw Kit for installation
1 x Manual

Remarks:

Press the menu button for about 10s, and a lock symbol will appear in the upper left corner of the screen, and the button function will be inactive,this function is to prevent accidental key presses after the button is splashed with water. Press the menu button for about 10s to unlock the button function.
A Metal Stalk bracket for Vehicle steel tube installation is optional
For use in working environments with rainwater,applicate for agricultural machinery, engineering vehicles, tractors, harvester trucks, excavators, cranes, forklift, boat etc
