Item Number: ST-755WRS
A.Camera With Magnetic
B.Camera With Built-In 6400mA Battery
Wireless Monitor Specification | |
Products Name | 7inch AHD 1080P Rearview Monitor |
Video Format | AHD 1080P |
Resolution | 1024*600*RGB |
TV System | PAL/NTSC |
Power supply | DC 9-30V |
Power Consumption | 7.5W |
Screen ratio | 16:9 |
Backlight luminance | LED, Luminance 400 cd/m2 |
Signal input | 1ch AHD 1080P input |
Trigger | The signal is turned on, then monitor display the camera image |
Operating Frequency | Digital wireless |
Video Decode | H.264 |

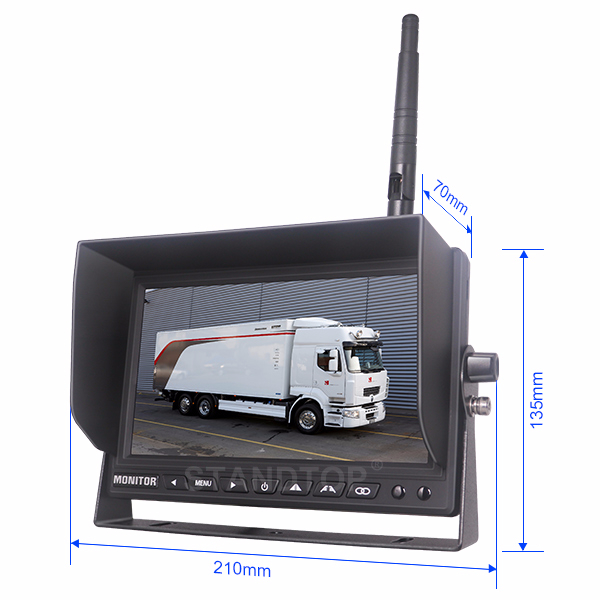

Size: | 210.70*135MM |
OSD menu | Yes |
Connector | Power lead with lock |
Shockproof level | 4G |
Operating Temperature | -20℃~70℃, RH 95% MAX |
Storage Temperature | -30℃~80℃, RH 95% MAX |
Wireless Camera Specification | |
Image Sensor | 1/2.7" CMOS sensor |
Resolution | AHD 720P |
Effective Pixels | 1280(H) x 720(V) |
TV System | PAL/NTSC |
Viewing angle | 140 Degree |
Power supply | DC 12V |
Waterproof Level | IP69K |
IR lights | 4Pcs |
Image | Mirror |
Transmission Distance | 200M |
Battery Capacity | 6400mA |
Battery Charging Voltage | 5-24V |
Battery Charging Time | DC5.5,6hours working Time with Fully Charged: 18 hours(under continuous working conditions) |
Magnetic base | Yes |
Operating Frequency | Digital wireless |
Video Decode | H.264 |

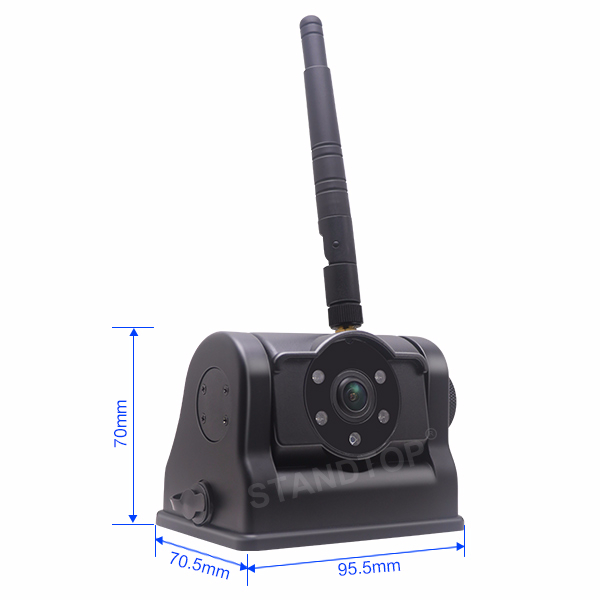

Size: | 95.5*70.5*70MM |
Shockproof level | 4G |
Power Consumption | <3W |
Maximum current: | <250mA |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Video Output | 1.0 Vp-p/75 Ohm |
IR cut | Yes |
Operating Temperature | -20℃~70℃, RH 95% MAX |
Storage Temperature | -30℃~80℃, RH 95% MAX |
Spare Parts:

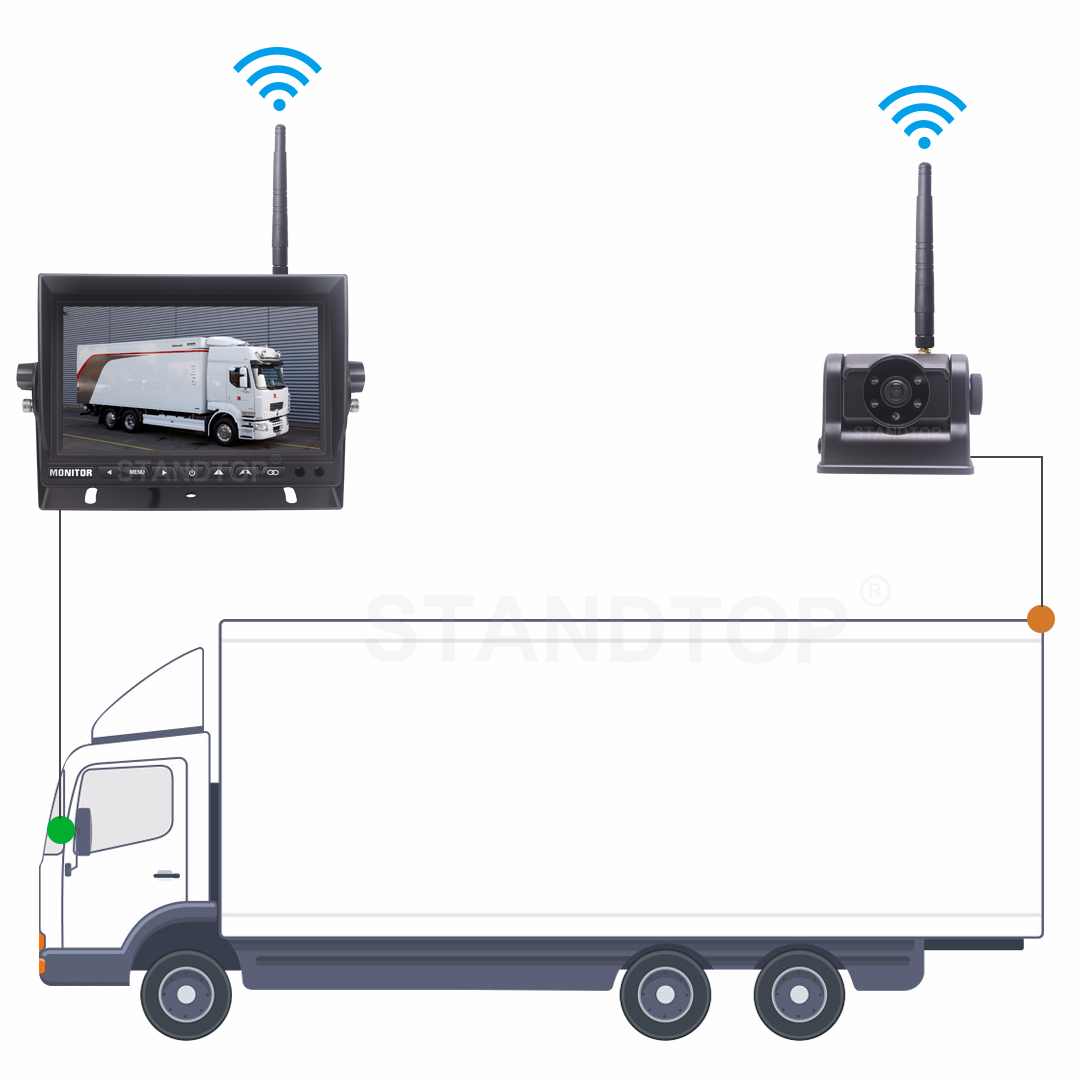

Install Position:
