    PRODUCT INTRODUCTION

    Item number: ST-C22A

    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    • Starlight Sony AHD 1080P Camera
    Inquiry Now
    Starlight Sony AHD 1080P Camera

    Product Features:

    • Starlight Sony AHD 1080P

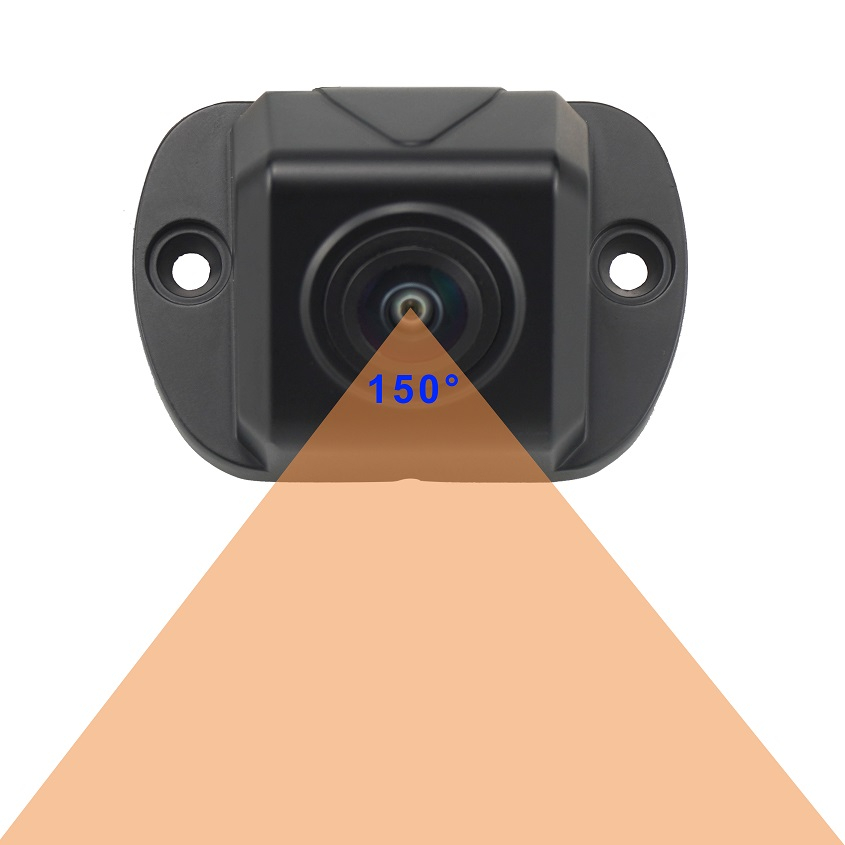

    • Horizontal Angle 150 degree
    • Zinc alloy Camera housing
    • Additional rubber pads are better for installation angle adjustment
    • Suitable for Front/Rear/Left/Right side installation
    • Black and Silver color are optional
    •  Vehicles: Bus/Trucks/Vans/Vans light trucks etc

    Product Parameters:

    Category Parameter
    Image Sensor 1/2.7" Sony IMX307
    Resolution AHD 1080P
    Effective Pixels 1920(H) x 1080(V)
    WDR function  Optional
    TV System PAL/NTSC
    Viewing angle 150 Degree(H)
    Lens 2.0MM
    Power supply DC 12V
    Waterproof Level IP69K
    Power Consumption 0.8W±10％
    Maximum current 80mA
    Minimum Illumination Color 0.0011LUX/F1.2
    Video Output 1.0 Vp-p/75 Ohm
    Connector 4pin aviation
    Operating Temperature  -30℃～70℃, RH 95% MAX
