Item number: ST-FD-LVDS
Main Features:

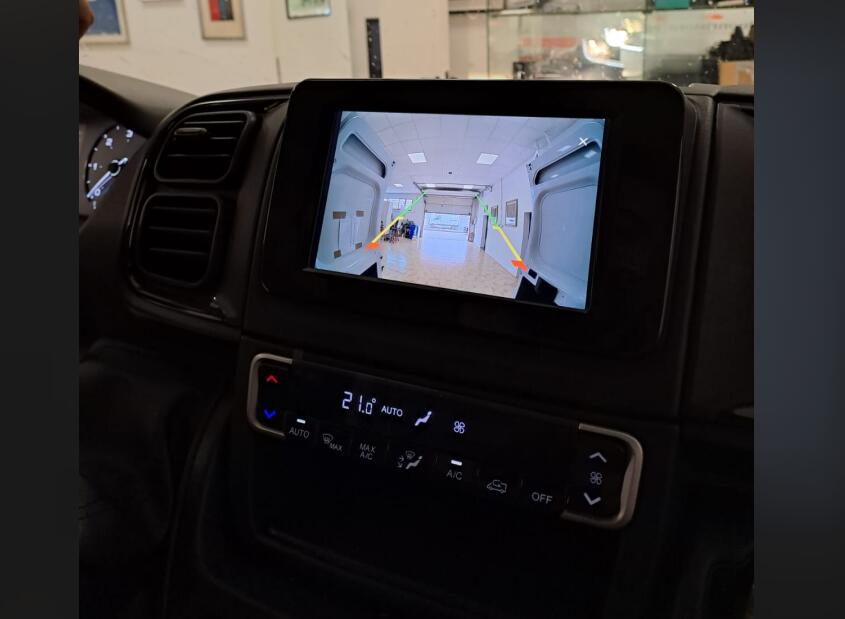

1. For the Fiat Ducato 2022- , Compatiable with 7" and 10" Uconnect screen, AHD 960P Resolution
2. Farka female connector
3. 15M Farka connector extension cable are optional

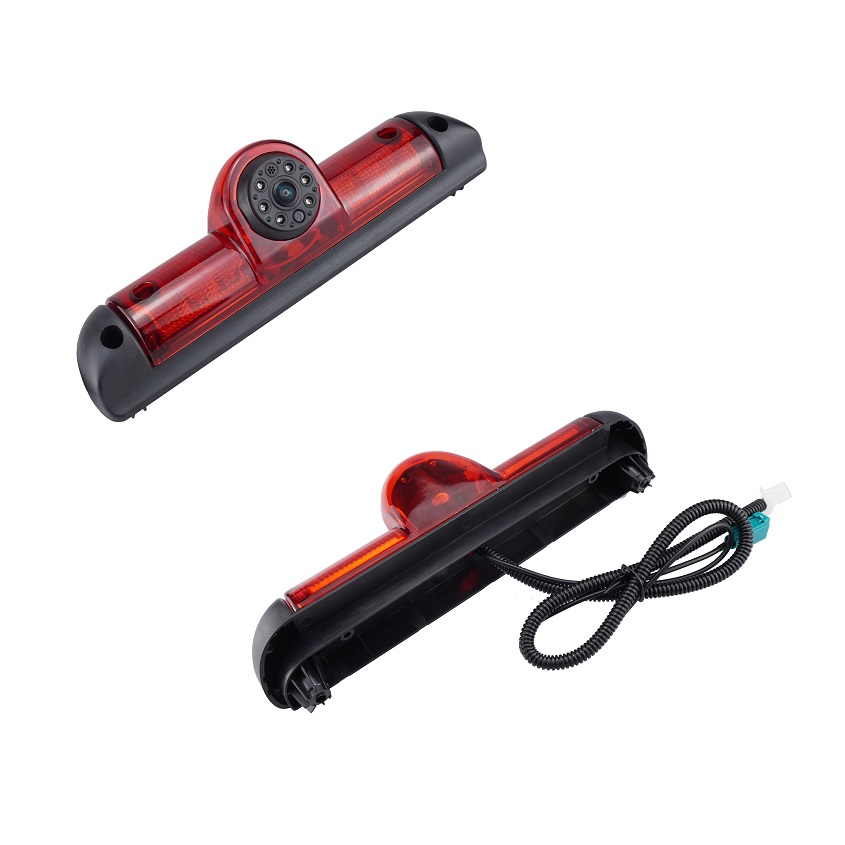

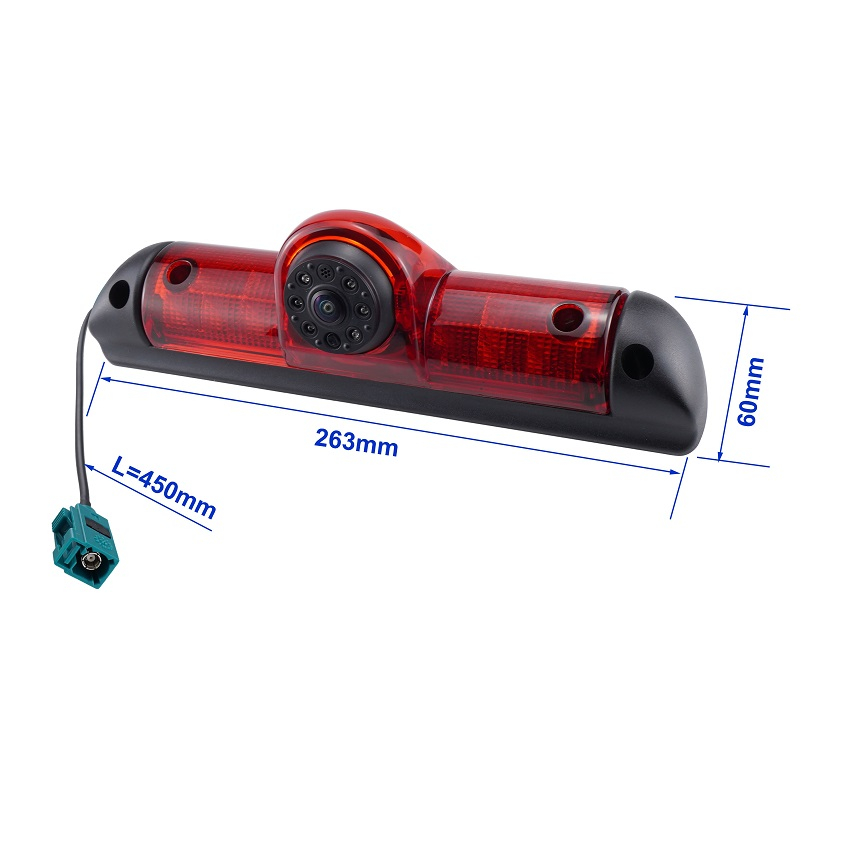

| Brake light LVDS Camera Specs | ||||
| Image sensor | 1/3" H68 CMOS | |||
| Effective Resolution | 1280(H) X 960(V) | |||
| Power supply | DC 12V | |||
| Viewing angle | Horizontal angle: 145 degree Vertical angle: 95degree Diagonal angle: 170 degree | |||
| Signal to noise ratio | 37.2dB | |||
| Minimum Illumination | 0.01Lux@(F1.2. AGC ON),0LUX With IR | |||
| Video Output | LVDS digital coaxial HD | |||
| Frame Rate | 960P/800P/720P 25fps/30fps | |||
| Waterproof level | IP68 | |||
| Noise reduction | 3DNR/2DNR | |||
| Connector | Coaxial( Fakra) | |||
| Working temperature | -40℃ to 85℃ | |||
| Storage temperature | -40℃ to 95℃ | |||
