10.1-Inch HD 1080P Quad Rearview Monitor | 4-Channel AHD Split Screen Backup Display for Trucks, RVs, Vans & Heavy Equipment

PRODUCT INTRODUCTION

Item number: ST-101Q-AHD, ECE R10 & CE certificates,10.1-inch HD 1080P Heavy Duty Quad Rearview Monitor supports four cameras with full-screen, dual-split, triple-split, and quad-split viewing. Designed for trucks, RVs, buses, vans, trailers, and heavy machinery, it delivers crystal-clear AHD video for maximum driving safety and operational visibility

Inquiry Now

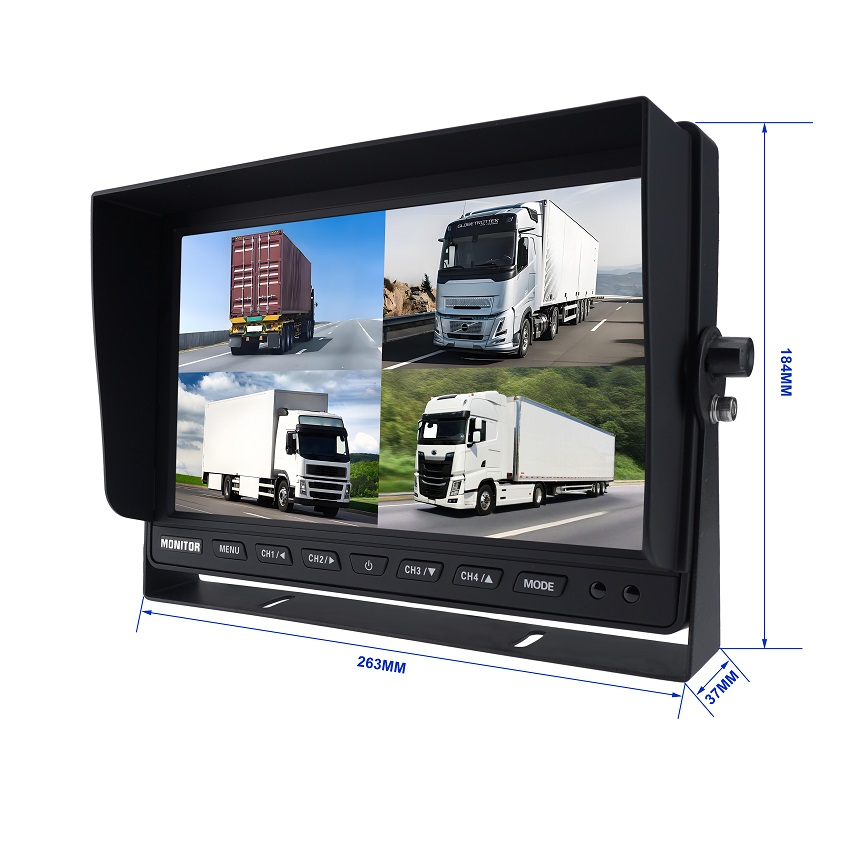

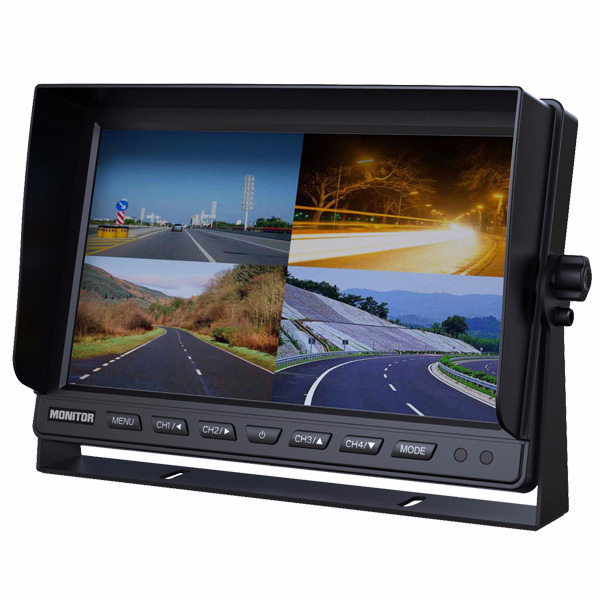

10.1-Inch HD 1080P Quad Rearview Monitor

The ST-101Q-AHD is a 10.1-inch HD 1080P quad monitor designed for vehicle safety.It supports up to four camera inputs with flexible split-screen modes,ensuring clear visibility in any driving situation. With optional DVR recording (up to 256GB SD card), drivers can capture critical moments on the road.The IPS display delivers sharp,detailed images with wide viewing angles,while durable brackets allow secure installation in trucks,buses,and heavy machinery.Operating reliably from -30°C to +70°C, this monitor is built for demanding environments and provides a dependable solution for multi-camera monitoring.

Product Features:

10.1-Inch LCD Display: Large, IPS full-view clear screen for easy viewing
Full HD 1080P Resolution: Sharp video quality for precise monitoring
Quad Split-Screen Support: Connect and view four cameras at once
Multi-Camera Compatibility: Works with rear, side, and front cameras
Switchable Modes: Choose between single, dual, triple,or quad-camera display
Durable Design: Built for heavy-duty vehicles and fleets
Video recording function: Optional, up to 256G SD card
Wide voltage range: DC 12-24V

Product Specs:

Category	Parameter
Screen size	10.1" IPS Color TFT LED
Resolution	1024R.G.B600
Frame rate	1080P: P25f/s/N30f/s
Video Format	AHD/CVBS Hybrid
TV System	PAL/NTSC automatically
Power supply	DC 12-24V
Power Consumption	12W
Screen ratio	16:9
Backlight luminance	LED, Luminance 500cd/m2
Contrast	500:1
Signal input	4ch AHD 1080P /720P input, 4ch CVBS input, AHD/CVBS Hybrid
Trigger	4 trigger wires
Video recording function	Optional, Up to 256GB SD carder
Split modes	14 types
Adjustable image	Full /2/3/4 image
Viewing angle	L/R 85/85 U/D 85/85
OSD menu,Remote control	Yes
Connector	4pin aviation
Language	Multiple languages switchable
Operating Temperature	-30℃～70℃, RH 95% MAX

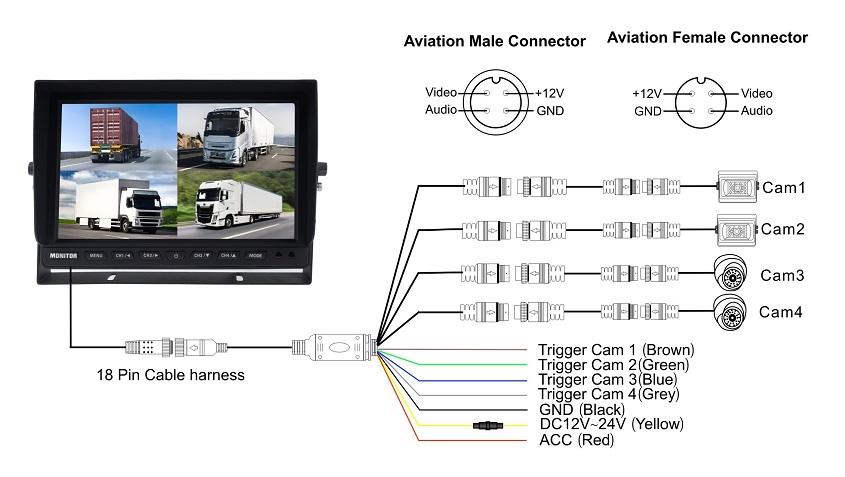

Wire Diagram:

18Pin Cable Harness- Simultaneously connected to 4X1080p cameras, the displayed images are free of interference

Power cable- 4XM12 waterproof 4pin aviation connector,double-shielded pure copper wire

Product Applications:

Ideal for Truck, Bus, Commercial Vehicles, Agricultural vehicles, Construction vehicles etc

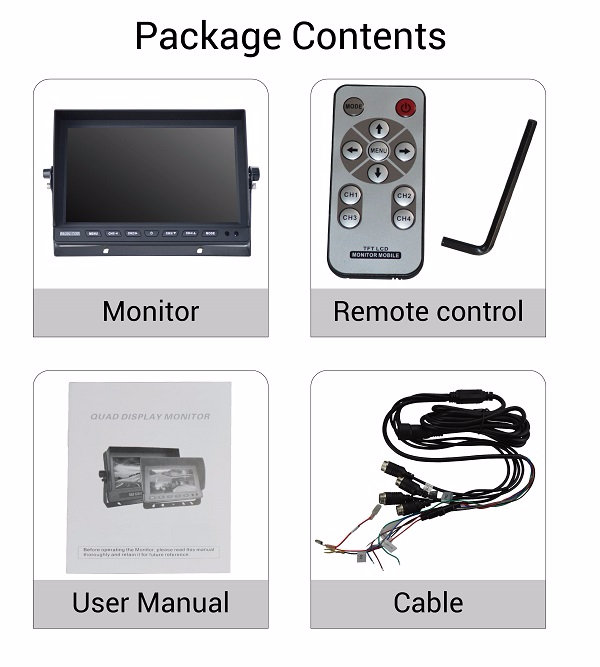

In the box:

1 x 10.1" HD 1080P Quad Screen Monitor
1 x U-shaped mount /dash mount bracket
1 x Power Harness with 4 camera inputs
1 x Remote Control
1 x Screw Kit for installation
1 x Manual
