Rugged Efficiency for Professional Fleets

Products Description:

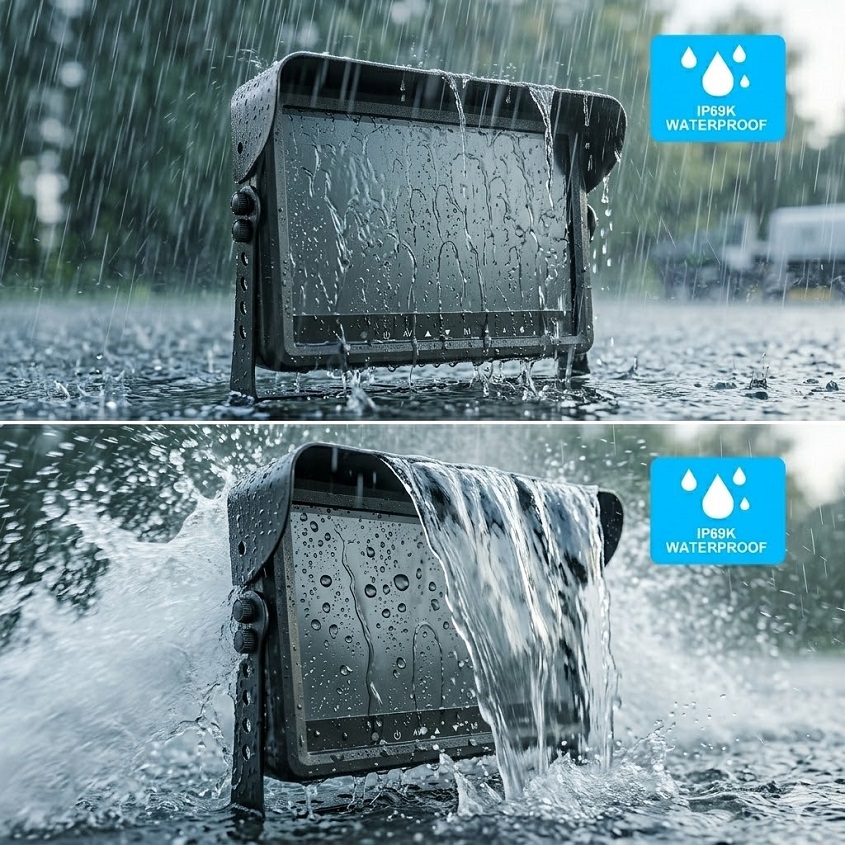

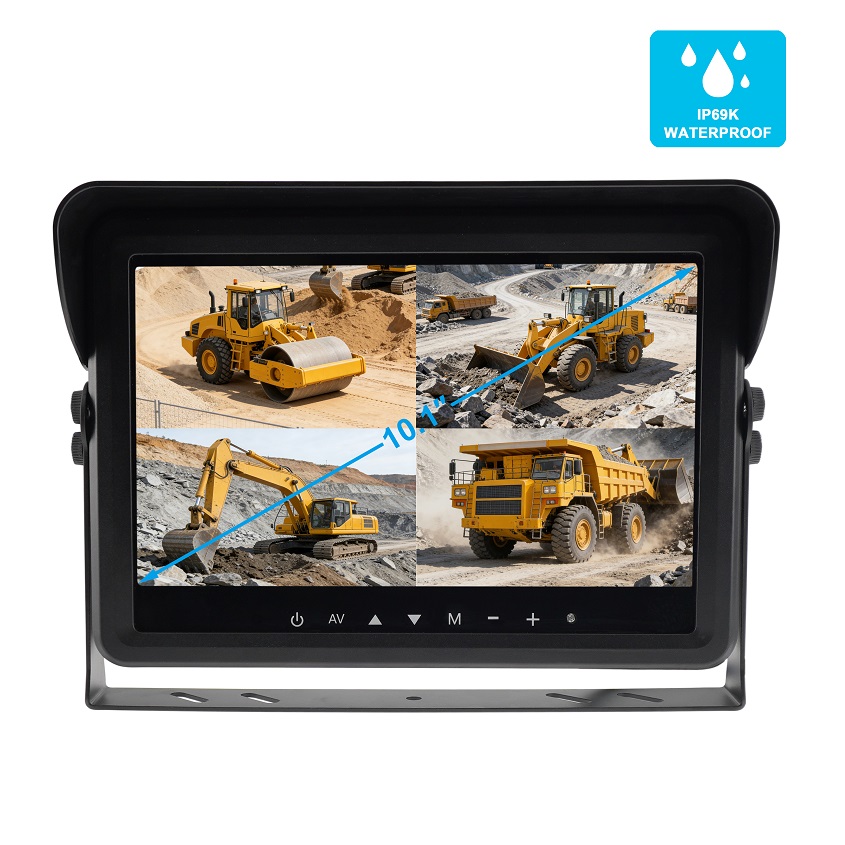

The ST-1017WPM is a high-performance 10.1-inch vehicle monitor designed for extreme environments. Featuring a fully sealed IP69K waterproof housing, it withstands high-pressure washdowns and heavy rain, making it the perfect vision solution for construction, mining, and agriculture.

Key Features:

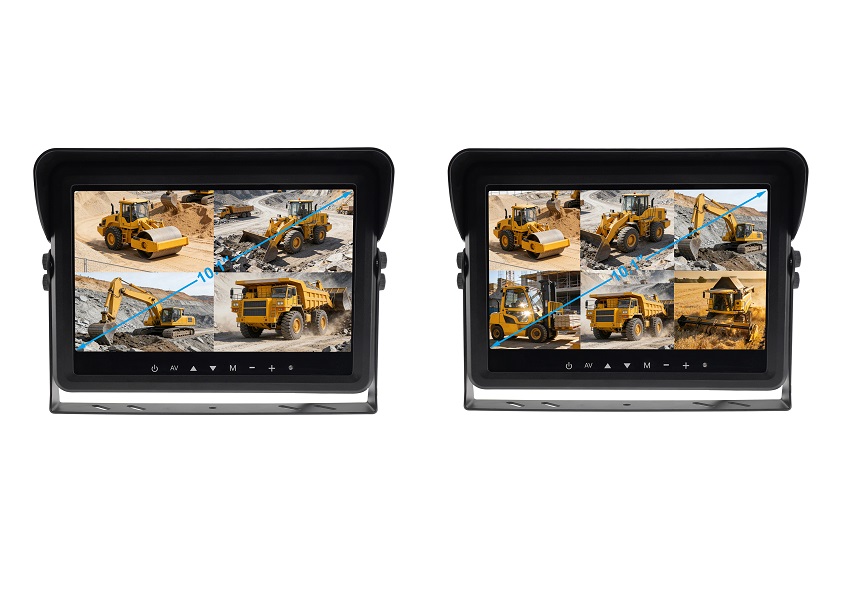

• 1080P Quad View DVR: Monitor and record 4 camera channels simultaneously in crystal-clear High Definition.

• IPS High-Brightness Display: 1000cd/m² brightness ensures superior visibility even in direct sunlight.

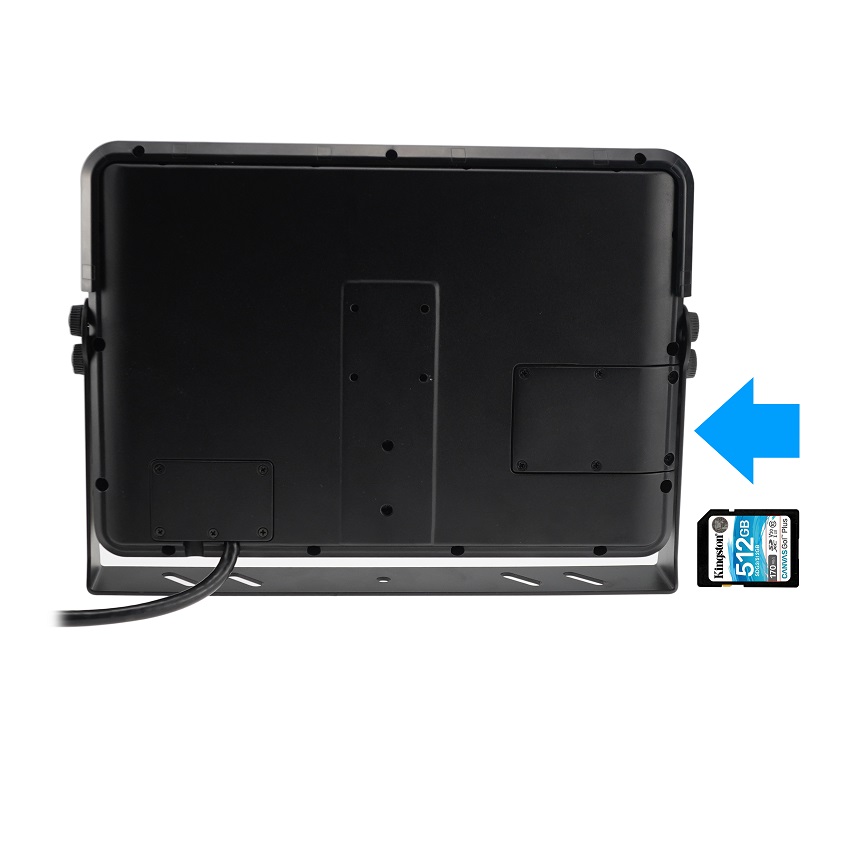

• Reliable Storage: Supports high-capacity recording (compatible with up to 512GB SD cards) for extended event logging.

• Industrial Durability: Wide voltage (9-36V) and vibration-resistant design for heavy-duty machinery.

• Scalable Options: Standard 4-channel input, with 6-channel configuration available upon request.

Why you need this monitor?

• Stop Replacing Water-Damaged Gear: Standard monitors fail the moment they meet a high-pressure power washer or a heavy rainstorm. Our IP69K fully sealed housing ensures your investment survives the toughest wash-down protocols.

• Eliminate Blind Spot Liability: Accidents often happen because of what the driver couldn't see. The 10.1-inch Quad View eliminates blind spots by showing four angles simultaneously, while the Built-in DVR provides the video evidence needed to protect your business from false insurance claims.

• No More Screen Glare: Most screens wash out under direct sunlight, causing driver fatigue and safety risks. Our 1000cd/m² High-Brightness IPS panel remains crystal clear even in harsh midday sun.

• Storage Peace of Mind: Don't lose critical footage due to small memory limits. While we specialize in stable 4-channel recording, our system supports up to 512GB SD cards for extended event logging without constant overwriting.

512G Estimated Storage Capacity:

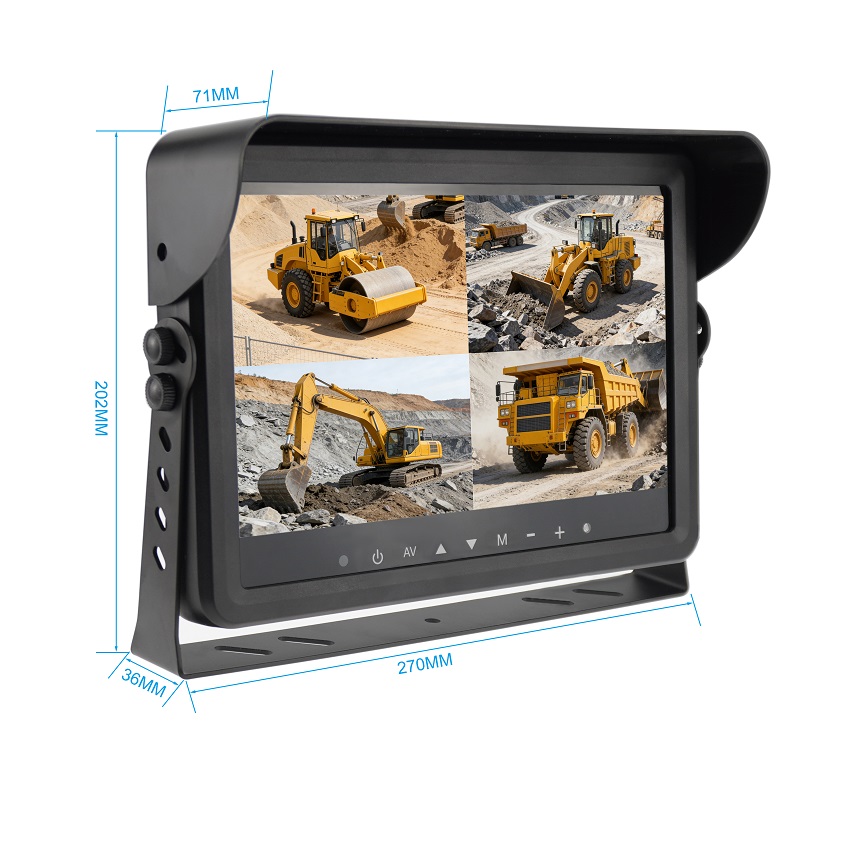

Product Specs:

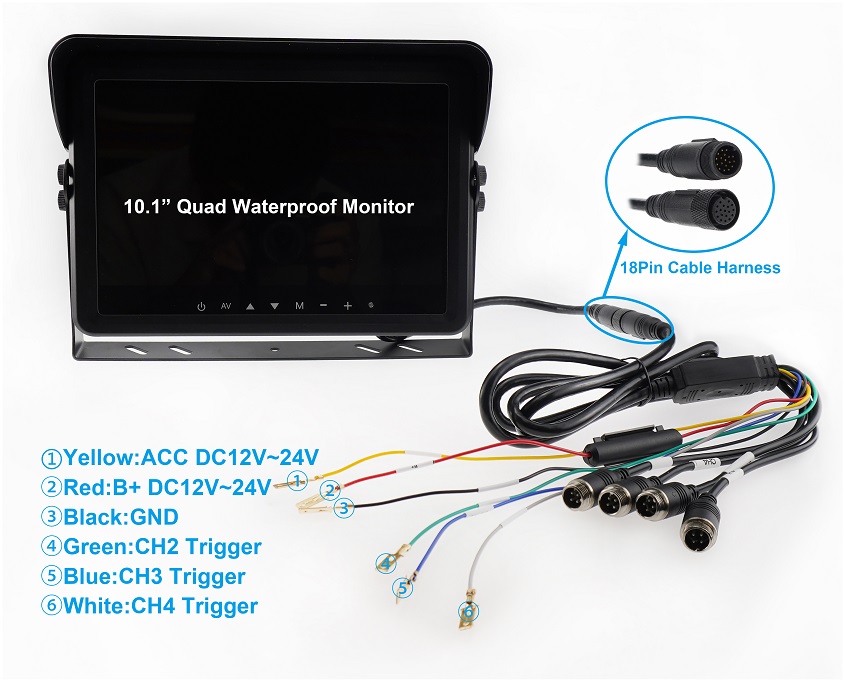

Wire Diagram:

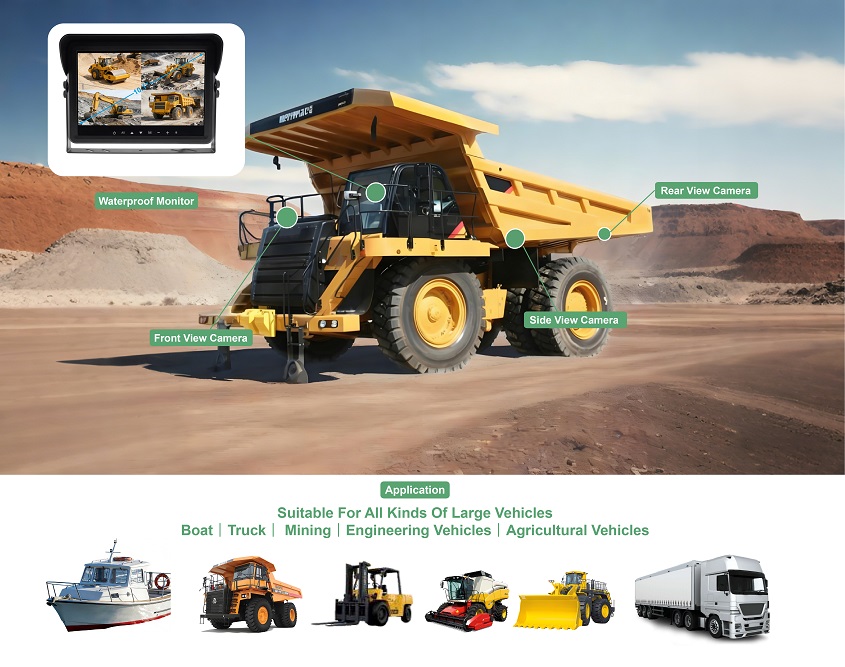

Primary Application Fields:

• Construction & Earthmoving: Ideal for excavators, loaders, and rollers operating in high-dust and muddy environments.

• Agriculture & Farming: Perfect for tractors and harvesters where sunlight readability and vibration resistance are non-negotiable.

• Mining & Quarrying: Built to withstand the extreme vibrations and 24/7 heavy-duty cycles of haul trucks and heavy machinery.

• Waste Management: Engineered for garbage trucks and sweepers that require frequent high-pressure sanitation.

• Marine & Port Equipment: Salt-spray resistant components for cranes, tugboats, and port handling machinery.

What's In the box:

1 x 10.1" 1080P Quad Waterproof Monitor
1 x U-shaped mount bracket
1 x Power Harness
1 x Screw Kit for installation
1 x Manual

Frequently Asked Questions (FAQ)

Q1: How does the IP69K rating benefit my fleet maintenance?

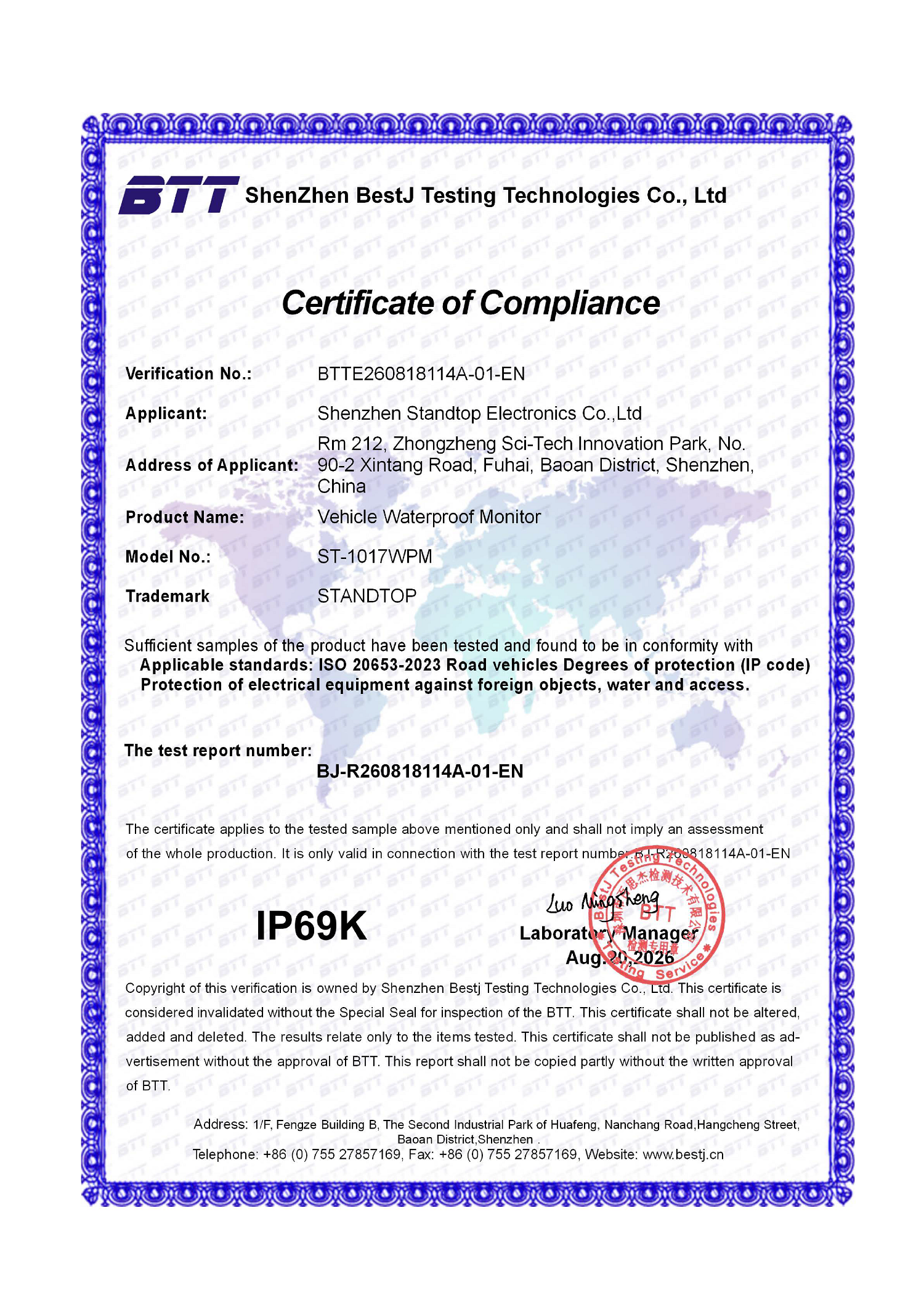

A: IP69K is the highest protection rating. It means the ST-1017WPM is not just "waterproof" but specifically designed to withstand high-pressure (1450 psi) and high-temperature (+80°C) water jets used during heavy equipment cleaning.

Q2: Can the monitor record all 4 cameras at the same time?

A: Yes. The built-in DVR supports synchronized 4-channel recording. In the event of an incident, you can play back all angles to get the full story of what happened around the vehicle.

Q3: Is the screen easy to see in the desert or bright sunlight?

A: Absolutely. We use a high-brightness IPS panel (up to 1000 nits) which is significantly brighter than standard consumer displays, ensuring safety and clarity during peak daylight hours.

Q4: What happens when the 512GB SD card is full?

A: The system features a "Loop Recording" function. It will automatically overwrite the oldest unprotected footage, ensuring that the monitor never stops recording.

Q5: Can I customize the cable connectors or boot logo?

A: Yes. We provide full OEM/ODM services, including customized Aviation 4-pin connectors, cable lengths, and personalized UI/boot logos for fleet branding.
