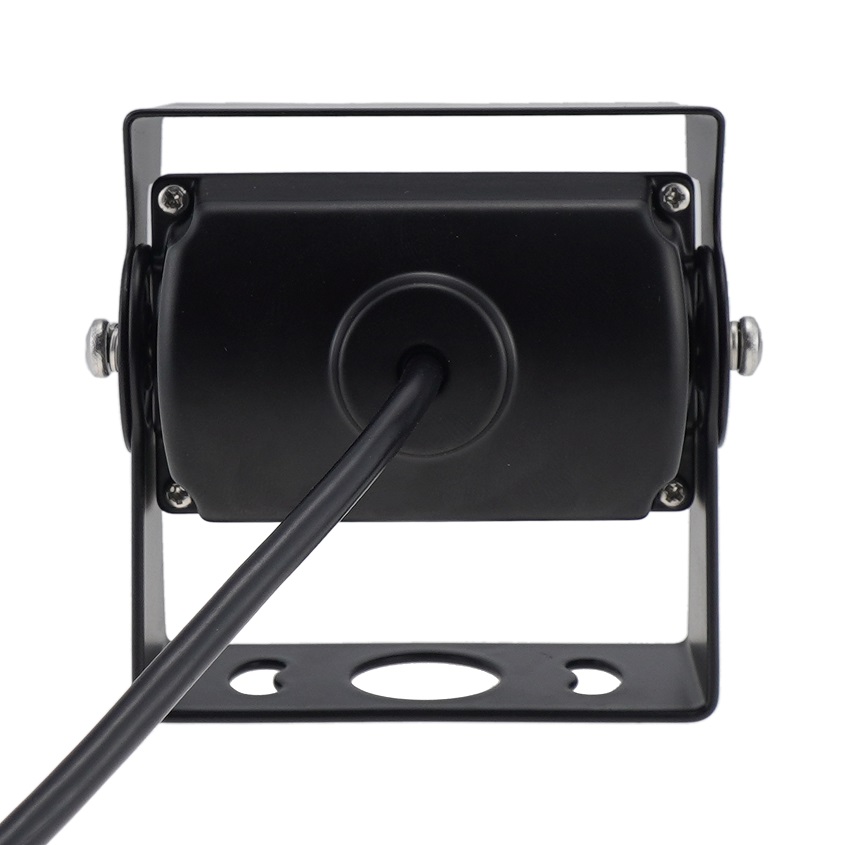

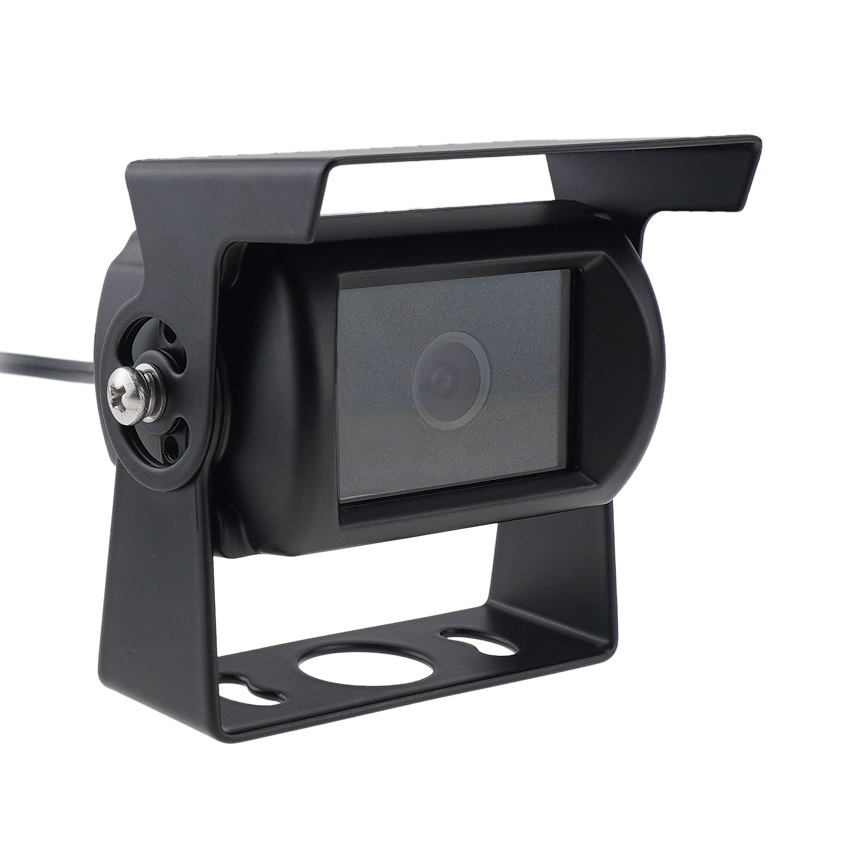

Intelligent AI BSD Vehicle Camera System with Human & Vehicle Detection

This heavy-duty AI BSD camera is designed to eliminate blind spots for trucks, buses, and industrial vehicles. With a built-in deep learning processor, the camera detects pedestrians, cyclists, and nearby vehicles in real-time. It sends an instant warning to the driver through an external high-decibel buzzer when anyone enters the danger zone, preventing accidents before they happen.

Three Factory Detection Options Tailored for Your Fleet

To match different road conditions and safety requirements, this AI BSD camera comes with three factory-programmable detection modes. While we offer a vehicle-only detection option, the first two setups are the most widely used and recommended by fleet operators worldwide:

• Simultaneous Detection (Both People and Vehicles) Our most popular configuration. The camera monitors walking pedestrians, cyclists, and nearby vehicles at the same time. It provides comprehensive blind-spot coverage, making it perfect for standard transit, highways, and heavy logistics trucks.

• Pedestrian-Only Detection (Focus on Vulnerable Road Users) The ideal setup for crowded city streets, busy construction sites, and narrow warehouse docks. In these high-risk areas, the driver needs to focus entirely on walking people. By skipping vehicle alerts, this mode eliminates false alarms caused by static trucks or roadside objects, drastically reducing driver noise fatigue.

• Vehicle-Only Detection (Optional) Specially calibrated to ignore pedestrian movement and only track nearby moving or overtaking vehicles. Available upon factory request for specific highway or trailer fleet integrations.

Reliable Hardware Built for Real-World Fleet Performance

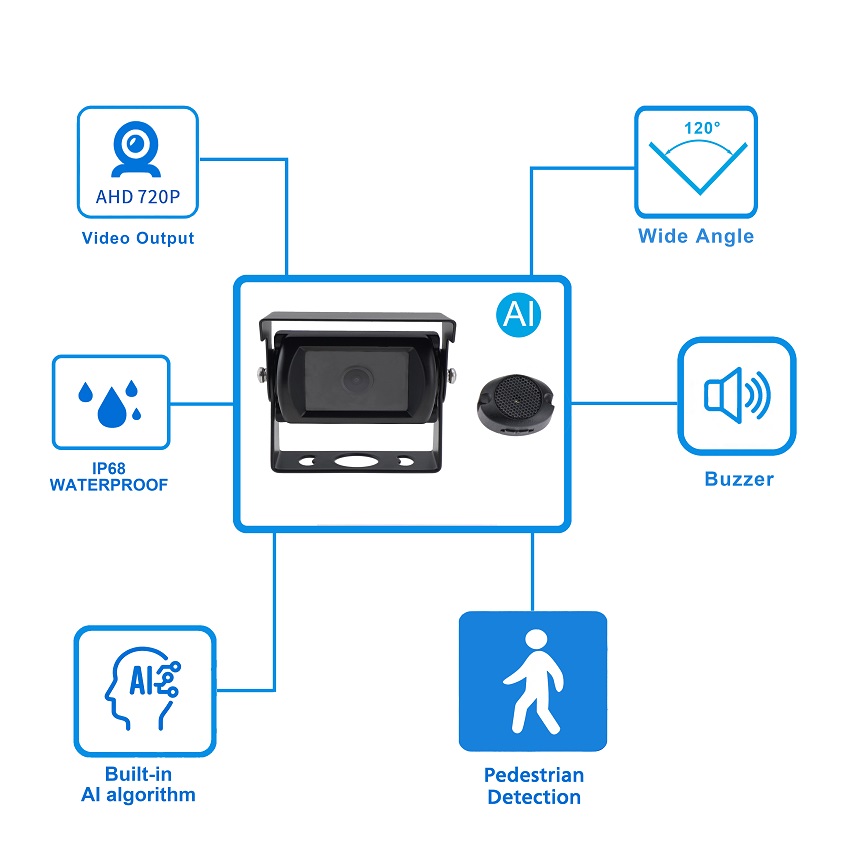

We know that commercial vehicles face harsh working conditions. This camera system is built with solid, field-tested components to ensure long-term reliability:

• AHD 720P Clear Video Signal: Connects directly to your in-cab monitors with stable, zero-latency image transmission.

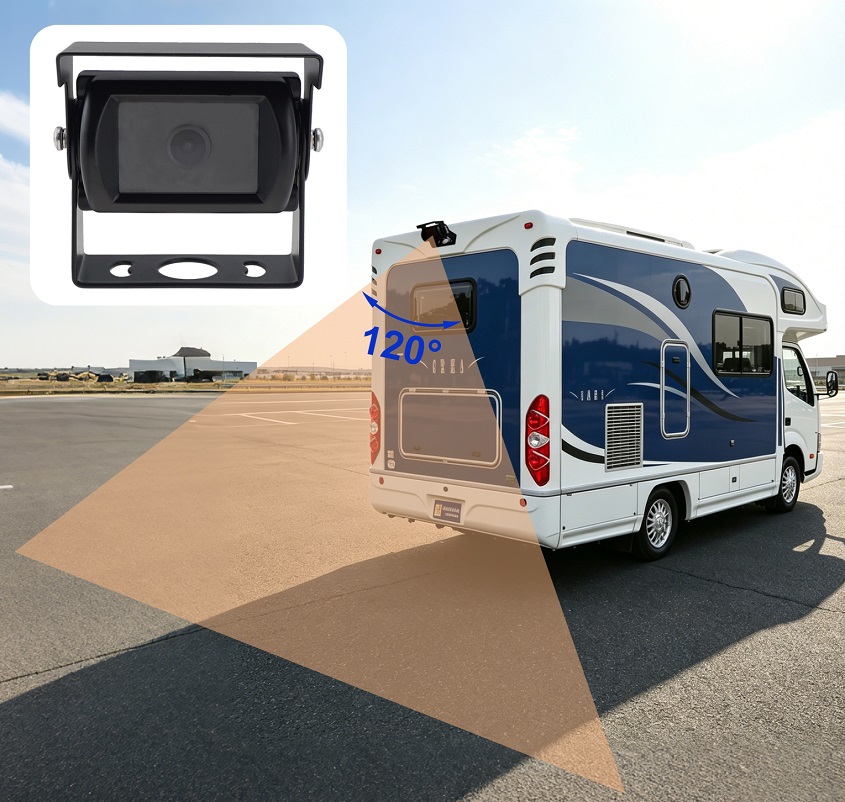

• 120 Degree Wide Angle Lens: Covers the most dangerous side and rear blind spots, especially when large trucks are making tight right-hand turns.

• IP68 Waterproof and Dustproof: Fully sealed housing. The camera ball is solid metal, while the durable outer shell protects it against heavy rain, mud splashes, and high-pressure truck washes.

• Tested for Severe Cold Climates: The camera works reliably in extreme winter weather, with a proven operational limit down to negative thirty degrees Celsius (-30℃).

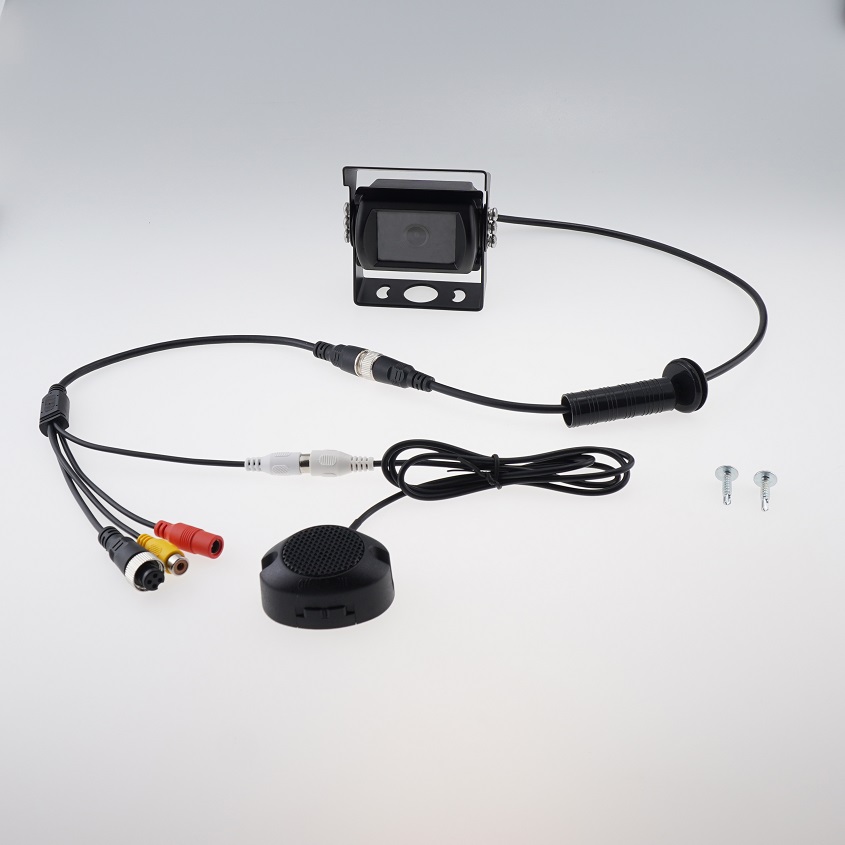

• External High-Decibel Buzzer: Includes a loud, active warning buzzer that goes off the exact second an object steps into the active detection zone.

Technical Specifications:

Target Applications

• Logistics Freight and Long-Haul Trucks Best with the Simultaneous Detection Mode. It monitors both passing cars and pedestrians at the same time, giving truck drivers complete blind-spot coverage during highway transit or when making tight right-hand turns in city traffic.

• Urban Delivery and Busy Distribution Vans Highly recommended with the Pedestrian-Only Mode. When delivery vans operate in crowded city streets or narrow sorting centers, this mode filters out nearby static trucks and only buzzes for walking people, cutting out annoying false alarms.

• Construction Sites and Heavy Duty Machinery Ideal for dump trucks, excavators, and wheel loaders. Using the Pedestrian-Only Mode, the system ignores nearby steel structures or concrete blocks and alerts the operator exclusively when ground workers enter the heavy machine’s dangerous blind spots.

• Agricultural Machinery and Farming Fleets Provides a wide-angle view for large tractors and harvesters. Operators can choose the best factory-configured option to stay aware of surrounding support vehicles or farm personnel working in dusty, low-visibility fields.
