PRODUCT INTRODUCTION

Item number: ST-722RVM, 7-inch 1080P Rearview Monitor with 3 Channel, 3 video input, 2 trigger wires, you can connect rear, side, and front cameras for maximum visibility and safer maneuvering,it perfect for trucks, vans, RVs, buses, trailers, agricultural machinery, forklifts, and industrial vehicles.

  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
  • 7-inch 1080P Rearview Monitor 3 Channel
Inquiry Now
7-inch 1080P Rearview Monitor 3 Channel

Key Features:

  • Specially designed for anti-vibration of engineering vehicles
  • 3ch video input, 12-32V wide voltage
  • Anti-power reverse connection design, TVS tube protection circuit to prevent transient pulse damage
  • Double-layer PCB board, according to the anti-vibration standard of the car factory, fixed with screws, effectively improving the anti-vibration strength (6.8G)

Product Specs:

Video format: AHD/CVBS
Screen size: 7" IPS Color TFT LCD
Resolution: 1024(W)*RGB*600(H)
Display ratio: 16:9
System: PAL/NTSC
Voltage:DC 12-32V
Brightness: 600cd/m2
Contrast: 500:1
Power consumption: 5.5W
3 Video AV input, AV2 for reversing
Viewing angle: L/R 85/85 U/D 85/85
OSD menu,Remote control
Connector: 4Pin aviation
Operating Temperature: -20℃~70℃
Vehicles: Bus, Trucks, Engineering Vehicle,Agricultural Vehicle etc.

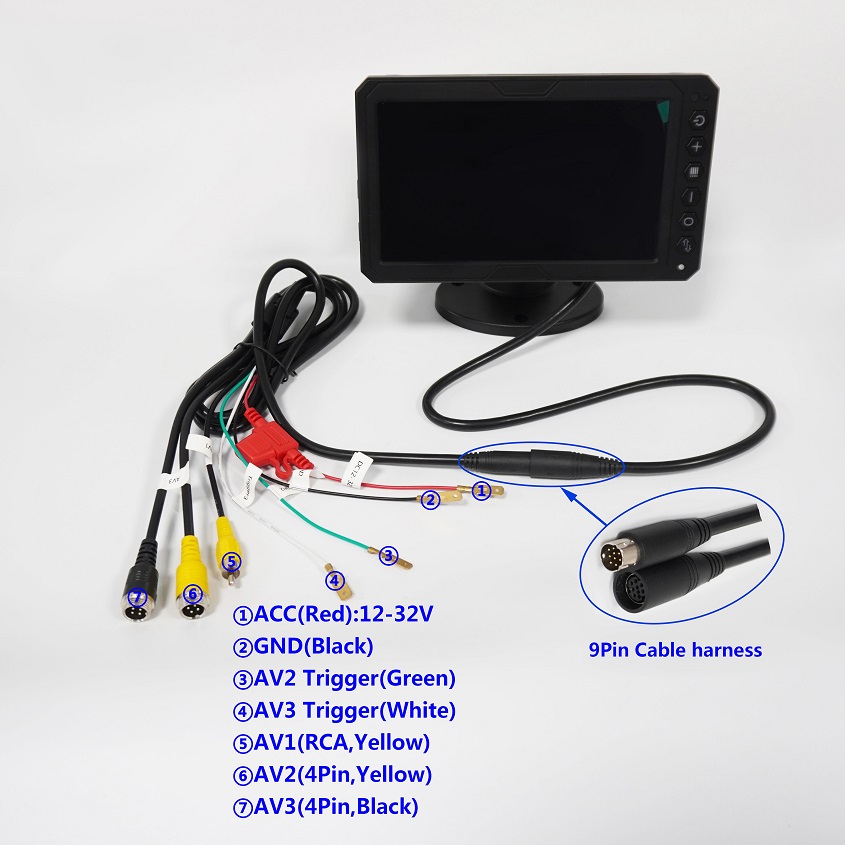

Wire Diagram:



Spare Parts:
