7-inch AHD Mirror Monitor with 6 Channel DVR – Multi-Camera Fleet Safety Solution

PRODUCT INTRODUCTION

Item number: ST-700MM-6C, 7-inch AHD Mirror Monitor 6 Channel DVR - Fleet Mobile Video Recorder for Truck & Vans Surveillance

Inquiry Now

7-inch AHD Mirror Monitor 6 Channel DVR

Upgrade your fleet’s safety with the 7-inch AHD mirror monitor with 6 channel DVR,designed for comprehensive monitoring and recording,this system combines a rearview mirror-style display with multi-channel DVR functionality,allowing drivers to view and record up to six cameras simultaneously,Ideal for managing trucks,Vans,RVs,Smaller buses,and commercial fleets,ensuring safety,compliance,and detailed video evidence.

Product Features:

7" Clip on AHD 1080p mirror monitor 6 channel, touchscreen button
IPS Led panel, high brightness
Compatible with AHD and CVBS cameras inputs
Video Recorder optional, up to 256G SD Card,14hrs record time for 1080p cameras
Stalk mount version also optional
Applicate for Vans, RVs, trucks, Smaller buses and commercial fleets etc.

Product Specs:

Category	Parameter
Screen Size	7inch IPS AHD 1080p
Resolution	1024600RGB
Mounting method	Clip on or Mirror stalk
Video Format	AHD/CVBS Hybrid
TV System	PAL/NTSC
Power supply	DC 9-36V
Power Consumption	12W
Screen ratio	16:9
Backlight luminance	LED, Luminance 500 cd/m2, 1000 cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85
Signal input	6ch AHD 1080P /720P input, 6ch CVBS input, AHD/CVBS Hybrid
Trigger	5 trigger wires, if without video recorder function, have 6 trigger wires
Video recording function	Optional, Up to 256GB SD carder

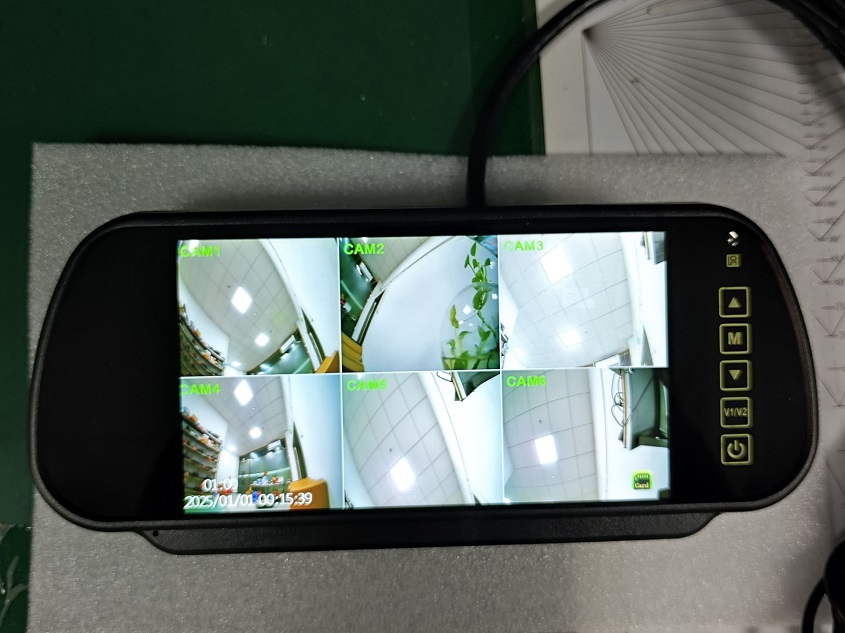

Video Mode	Full /2/3/4/5/6 image
OSD menu,Remote control	Yes
Connector	4pin aviation
Operating Temperature	-30℃～70℃, RH 95% MAX

Wire Diagram:

The below image display quality is affected by compression,the actual photo size will show a clearer image.

Product Applications:

Perfect for Vans, RVs, trucks, Smaller buses and commercial fleets

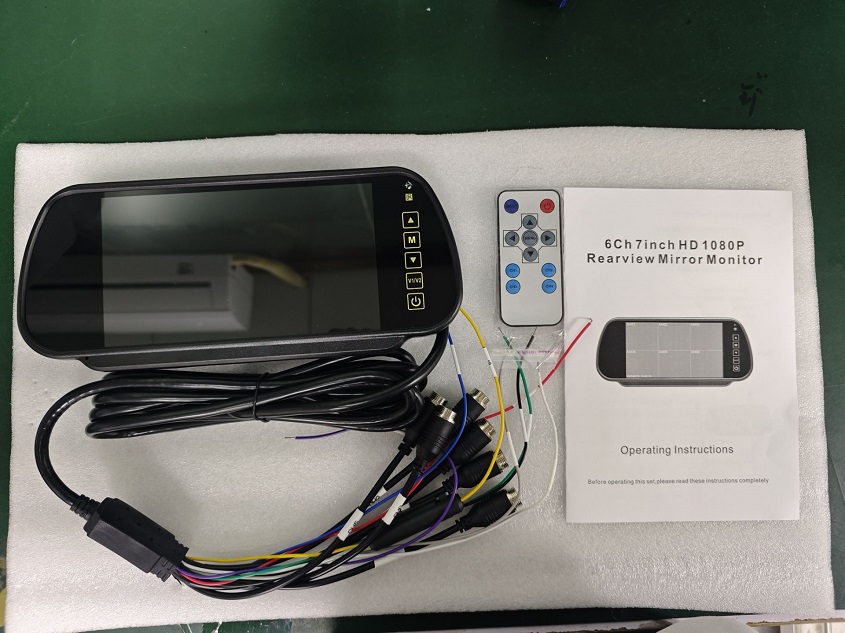

In the box:

1 x 7" 1080P 6 Channel Mirror Monitor with Power Harness
1 x Remote Control
1 x Manual

Due to different customers have different product requirements,add the product may be installed on different vehicles, there may be some special requirements,based on our practical experience,the below are some points that our clients have actually mentioned and we already have solved it

✅Is it possible to change the menu language to the customer's country's language?

Yes, if our default menu language does not include the client's country's language, we can use a translated OSD Menu provided by the client and then incorporate it into our software.

✅Can we add our company's Logo for sart up picture?

Yes, you can provide us the 1024*600 resolution of your Logo.

✅We need a brighter screen, is that possible?

Yes, our standard screen brightness is 500 cd/m2, but a 1000cd/m2 screen is also possible, though that would increase the cost.

✅When I press the buttons on the monitor, it makes a sound,Is it possible to cancel the button buzzer?

Yes, it can cancle the button buzzer.

✅Can the power lead be combined into a DC female connector?

Yes, can do.if you also need our car cigarette lighter, that's fine too.

✅I want to be able to use the button menu function while reversing.

Yes, can do .

✅I need the Mirror Stalk mount for this mirror monitor

Yes, we have the Stalk mount version, the mounting holes for the base shell are compatible with commercially available brackets,our brackets are available in both universal and specialized types,such as those for Ford,Fait, Mercedes-Benz,Volkswagen,Toyota etc.

If you feel this product suits your needs, or if you have any other questions about this product, please feel free to contact our sales department.

E-mail: sales@standtop.com WhatsApp/Wechat/Cell: +86 13826556522
