Item number: ST-700MM-6C
| Category | Parameter |
|---|---|
| Screen Size | 7inch IPS AHD 1080p |
| Resolution | 1024*600*RGB |
| Mounting method | Mirror stalk or Clip on |
| Video Format | AHD/CVBS Hybrid |
| TV System | PAL/NTSC |
| Power supply | DC 9-36V |
| Power Consumption | 12W |
| Screen ratio | 16:9 |
| Backlight luminance | LED, Luminance 500 cd/m2, 1000 cd/m2 optional |
| Viewing angle | L/R 85/85 U/D 85/85 |
| Signal input | 6ch AHD 1080P /720P input, 6ch CVBS input, AHD/CVBS Hybrid |

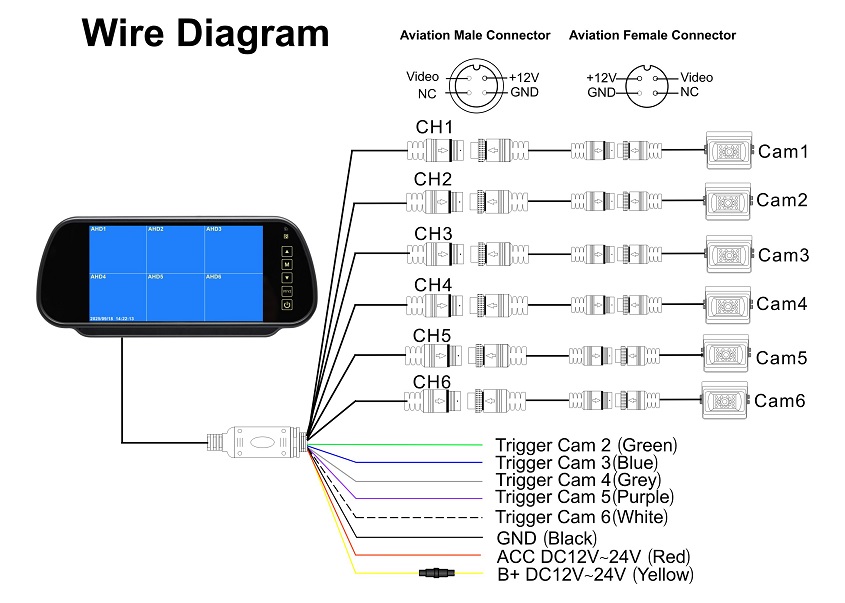

| Trigger | 5 trigger wires, if without video recorder function, have 6 trigger wires |

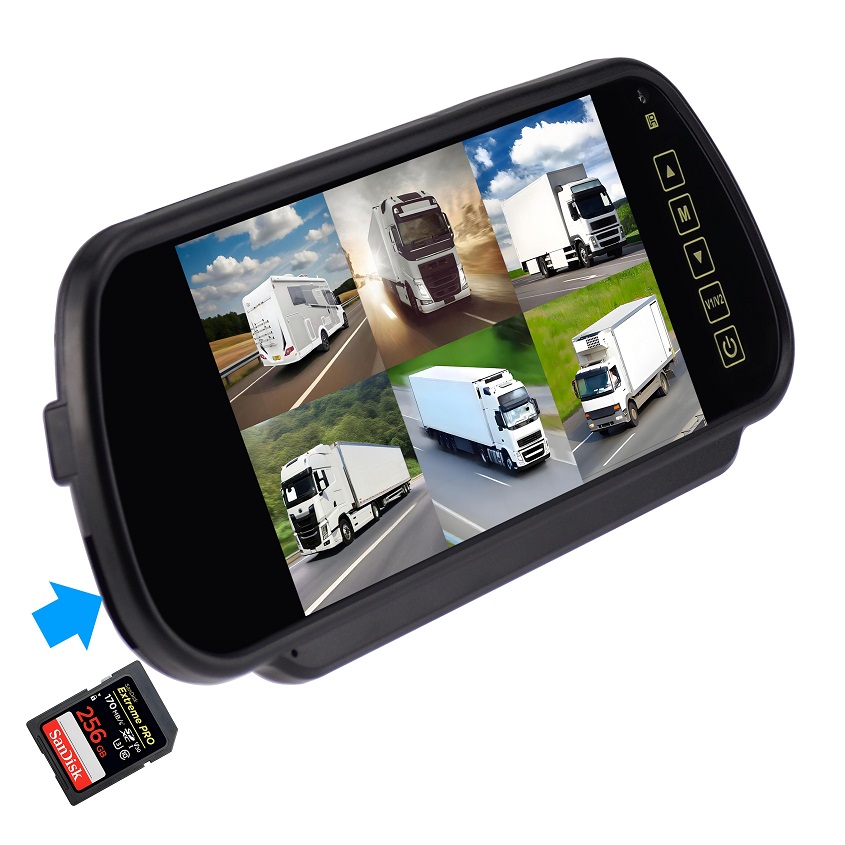

| Video recording function | Optional, Up to 256GB SD carder |
| Video Mode | Full /2/3/4/5/6 image |
| OSD menu,Remote control | Yes |
| Connector | 4pin aviation |
| Operating Temperature | -30℃～70℃, RH 95% MAX |

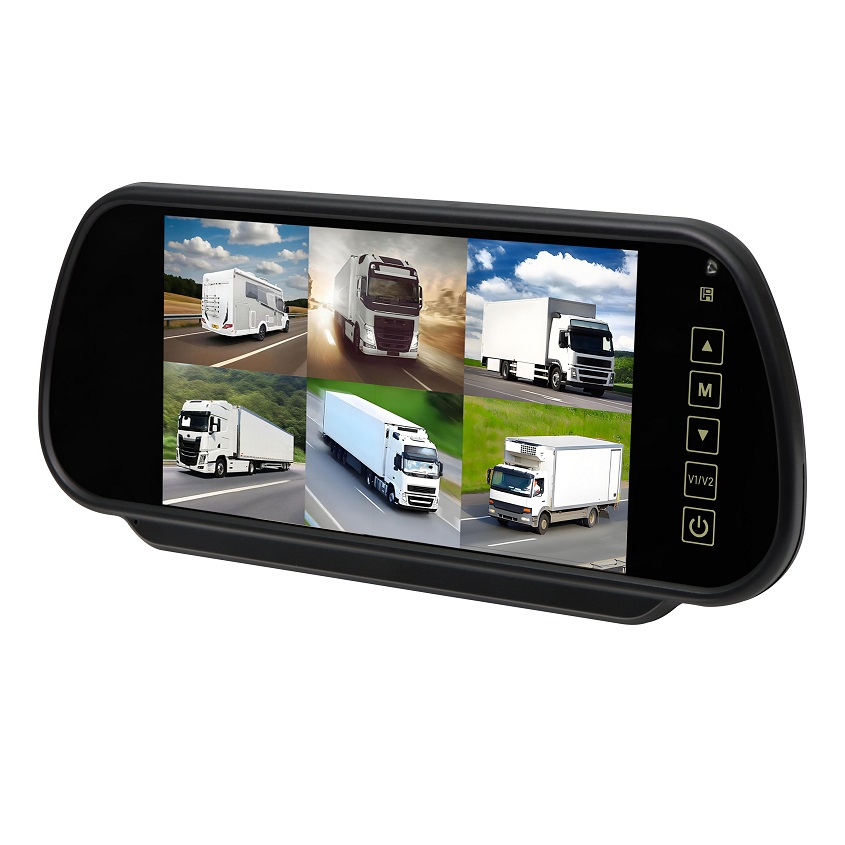

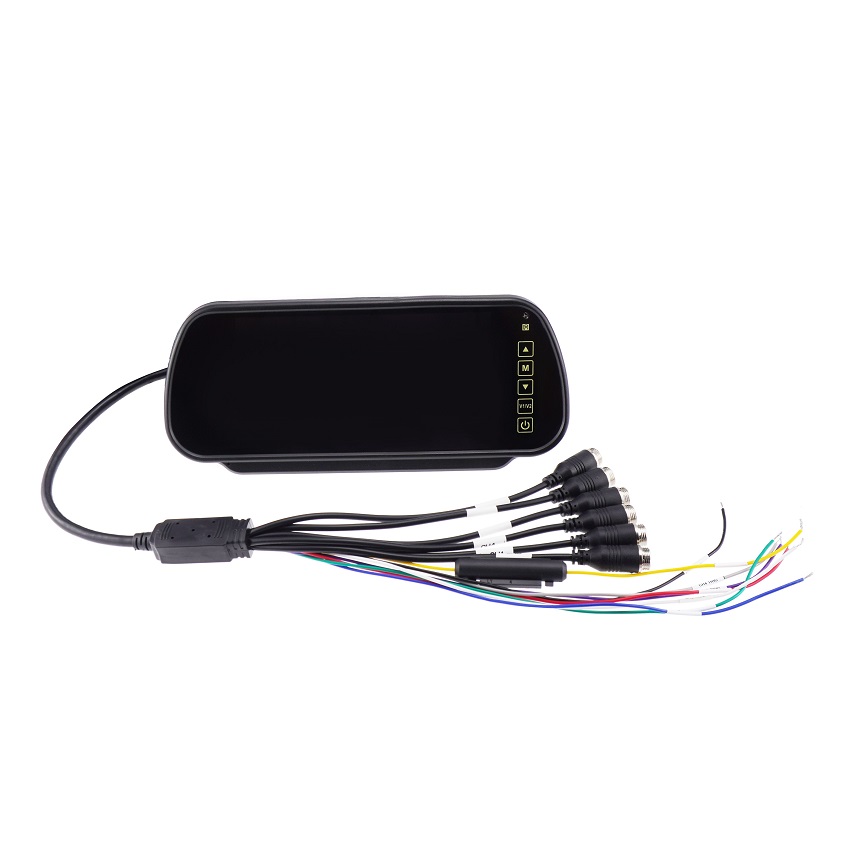

1 x 7" 1080P 6 Channel Mirror Monitor with Power Harness
1 x Remote Control
1 x Manual
