    PRODUCT INTRODUCTION

    Item number: ST-866RC

    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    • Heavy Duty Stainless Steel Camera
    Inquiry Now

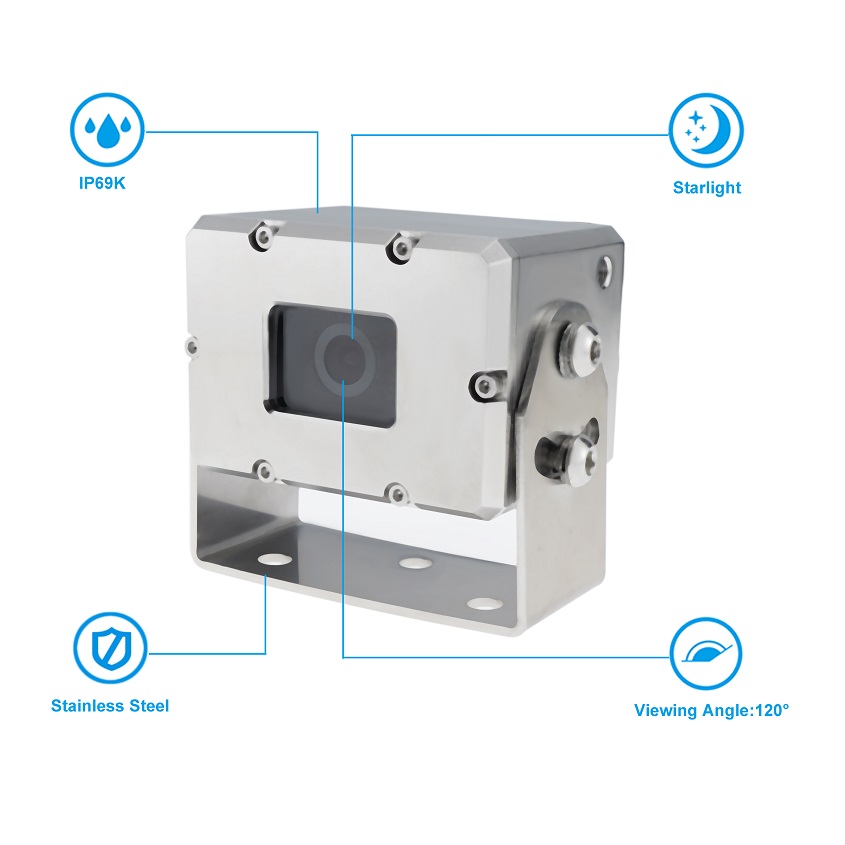

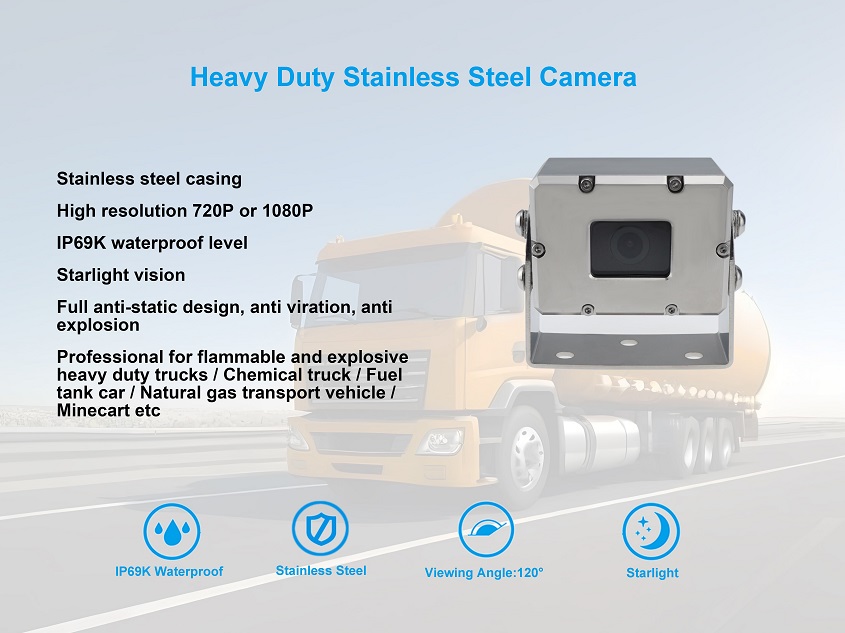

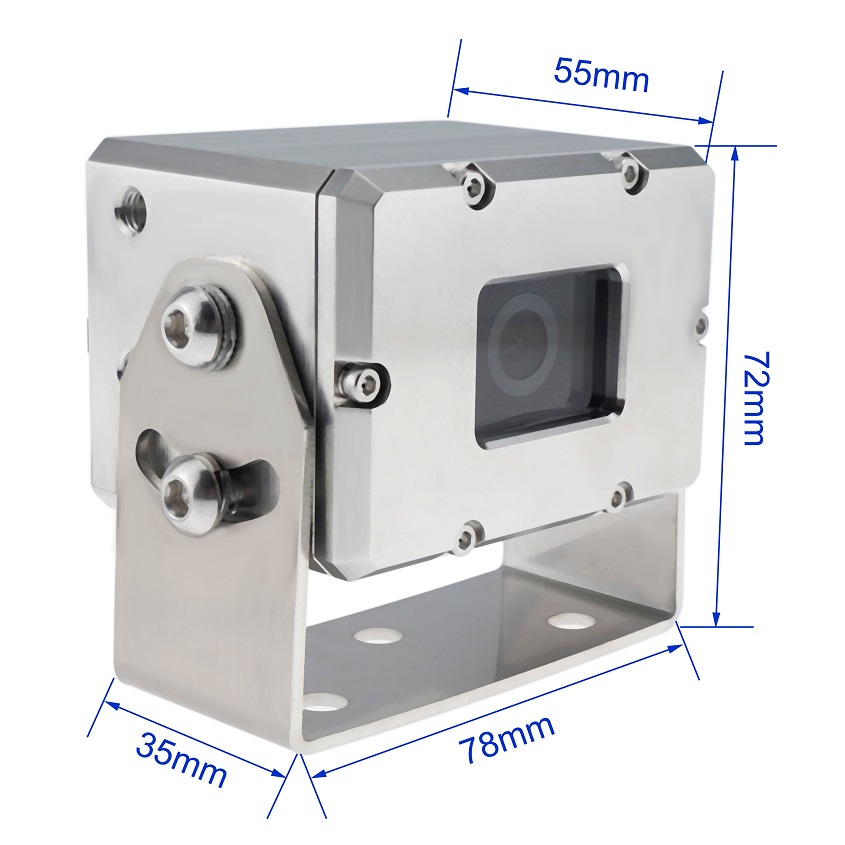

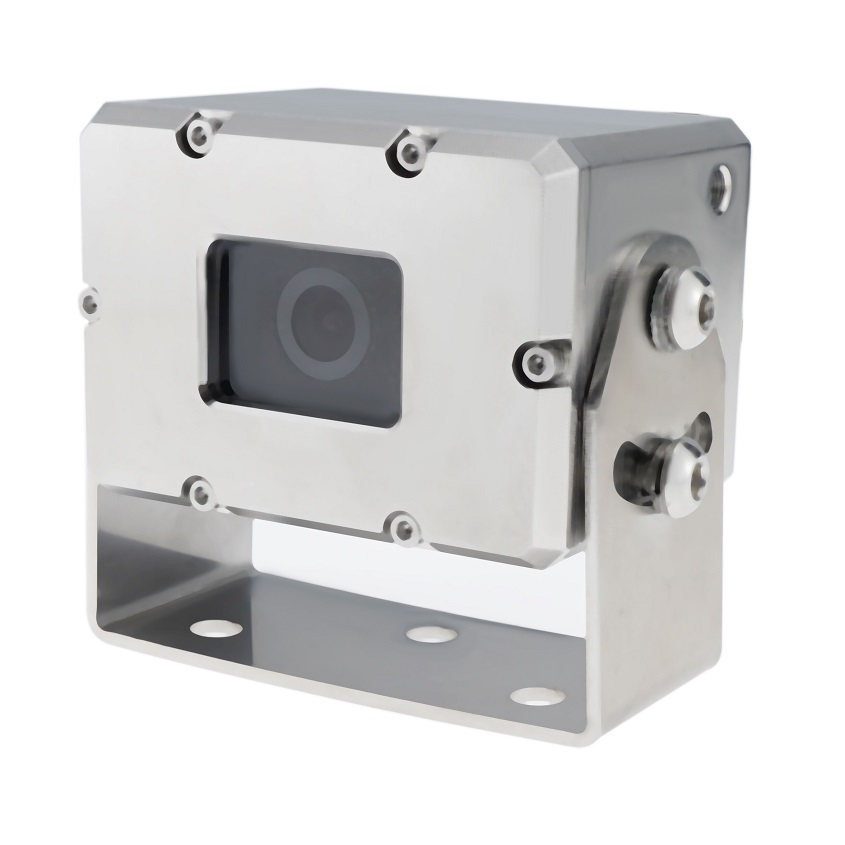

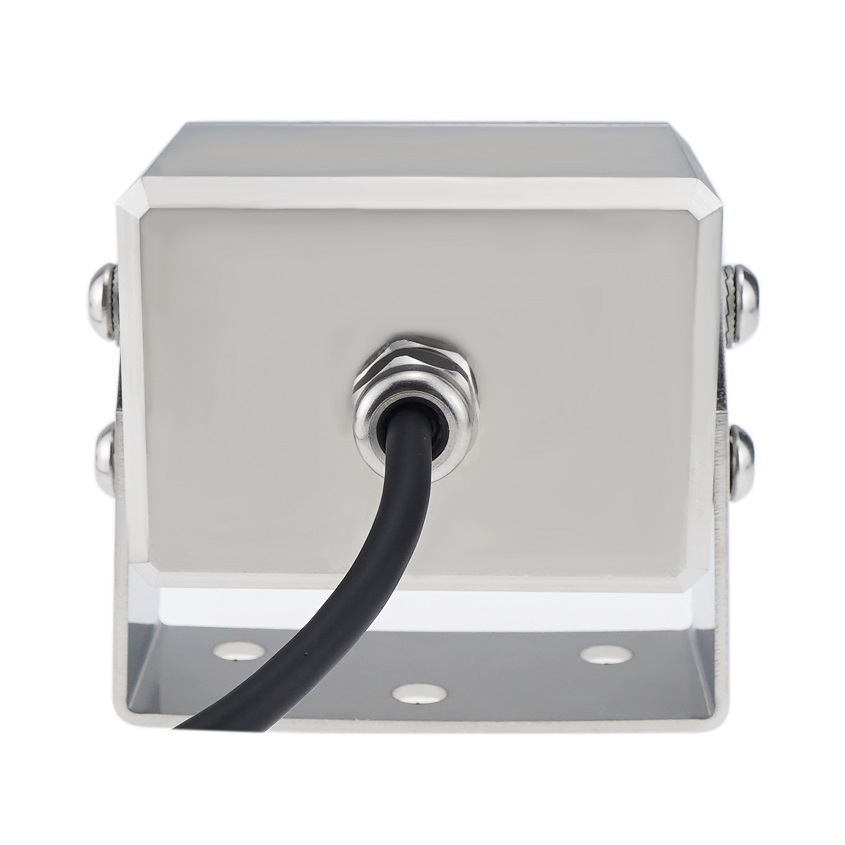

    Heavy Duty Stainless Steel Camera

    Product Features:

    • 304 Stainless steel camera body and bracket
    • 2MP pixes,1080p,WDR Function
    • Better minimum Illumination
    • 3 in 1 90 frame rate
    • In motion, there is not much tailing

    Product Parameters:

    Category Parameter
    Camera Housing and bracket 304 Stainless Steel
    Image Sensor 1/2.8" Sony
    Resolution AHD 1080P,2MP pixes
    Effective Pixels 1920(H) x 1080(V)
    WDR function  Yes,115DB WDR(Adaptive color gradation reproduction)
    TV System PAL/NTSC
    Viewing angle 120 Degree
    Lens 2.8MM
    Power supply DC 12V
    Waterproof Level IP69K
    DNR 3D
    S/N Ratio ≥48dB
    UTC Menu Support
    Sync System Internal
    White balance ON
    AGC Auto
    Backlight compensation HLC
    Auto Iris Video/DC
    Maximum current 60mA
    Minimum Illumination  0.001Lux
    Video Output 1.0 Vp-p/75 Ohm
    IR cut Yes
    Connector 4pin aviation
    Mainboard size 32*32mm
    Operating Temperature   -30℃～75℃, RH 95% MAX

    Product Applications:
