Item number: ST-799AHD-2P, ECE R10, CE Certificates,7" 1080p 2 split display, supports full-screen and split-screen modes, video recording function optional, wide voltage 9-36V, drivers can view rear, side, or front angles simultaneously, Ideal for trucks, trailers, RVs, vans, agriculture machines, forklifts, and other commercial vehicles

  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
  • 7-inch HD 1080P 2 Split Rearview monitor
Inquiry Now
7-inch HD 1080P 2 Split Rearview monitor

     Standtop's private tooling 7" HD 1080p heavy duty 2 split rearview monitor,which can display 2 split screens at the same time, is equipped with a reverse trigger wire and optional DVR function, which can record video clips, providing a reliable solution for capturing important moments in the driving process. Its two-split display function makes it an ideal choice for vehicles that need to monitor two cameras at the same time.



Key Features:

  • 7" IPS AHD 1080p Full View screen, DC 9-36V

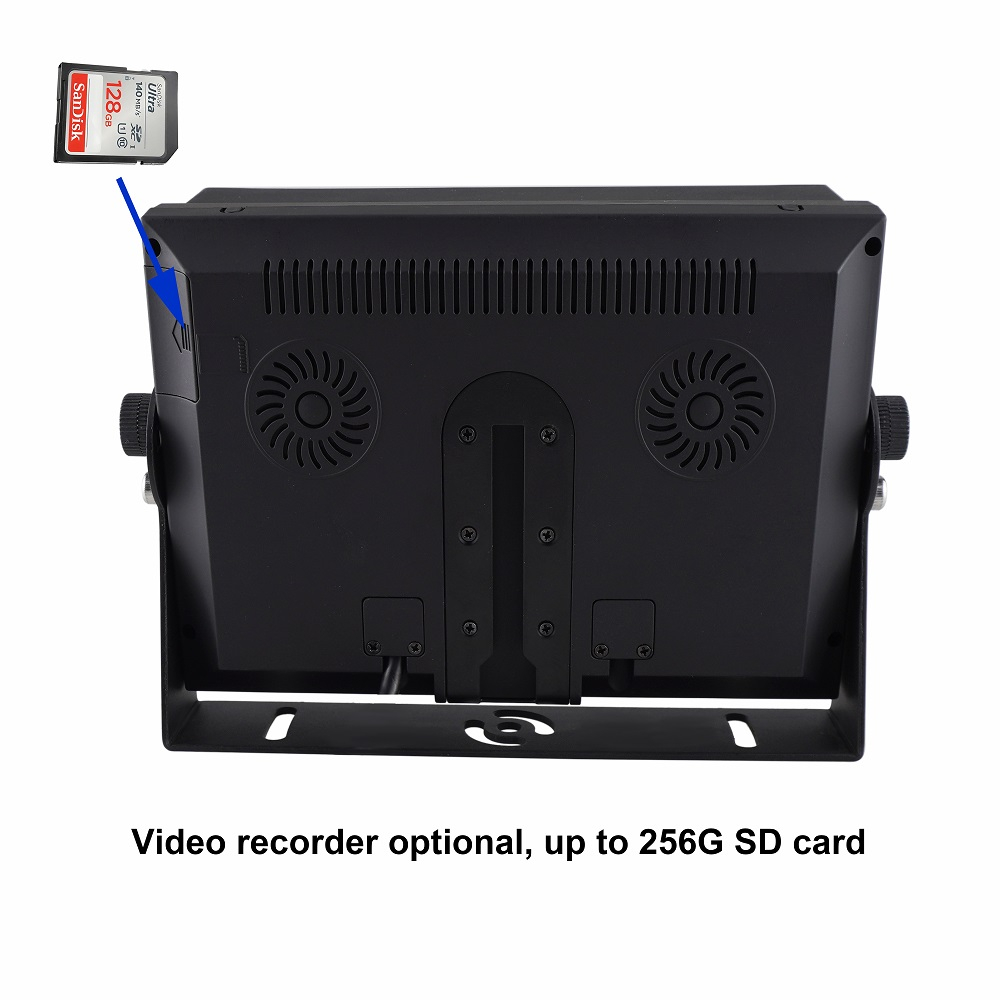

  • Video recorder optional, up to 256G SD card
  • Adjustable distance grid lines for backing up reference
  • Switch between mirror/normal image for any camera attached

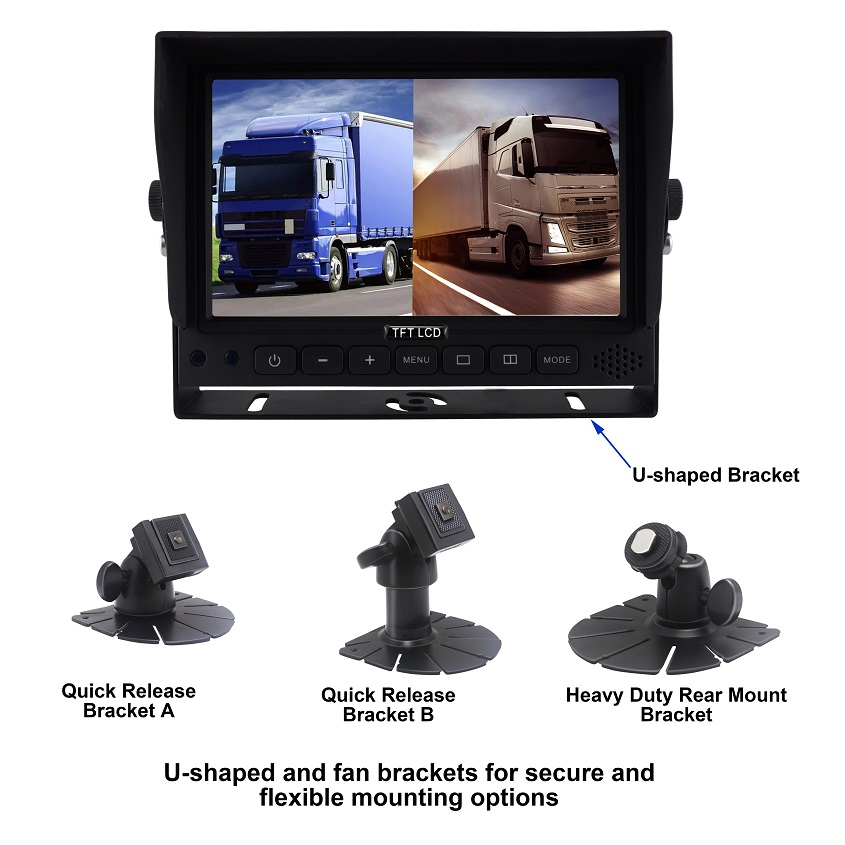

  • Includes U-shaped and fan brackets for secure and flexible mounting options
  • Provides clear and detailed video output for high-quality viewing
  • Ideal for various in-vehicle applications with an enhanced viewing experience
  • Approvals & Certification: E-Mark, CE

Product Specs:

Category Parameter
Screen Size 7inch IPS AHD 1080p
 Resolution 1024*600*RGB
Video Format AHD/CVBS Hybrid
TV System PAL/NTSC
Power supply DC 9-36V
Power Consumption 7W
Screen ratio 16:9
Backlight luminance LED, Luminance  500 cd/m2, 1000 cd/m2 optional
Viewing angle L/R 85/85 U/D 85/85
Signal input 2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid
Trigger 1 trigger, AV2 for reversing
Video recording function  Optional, Up to 256GB SD carder

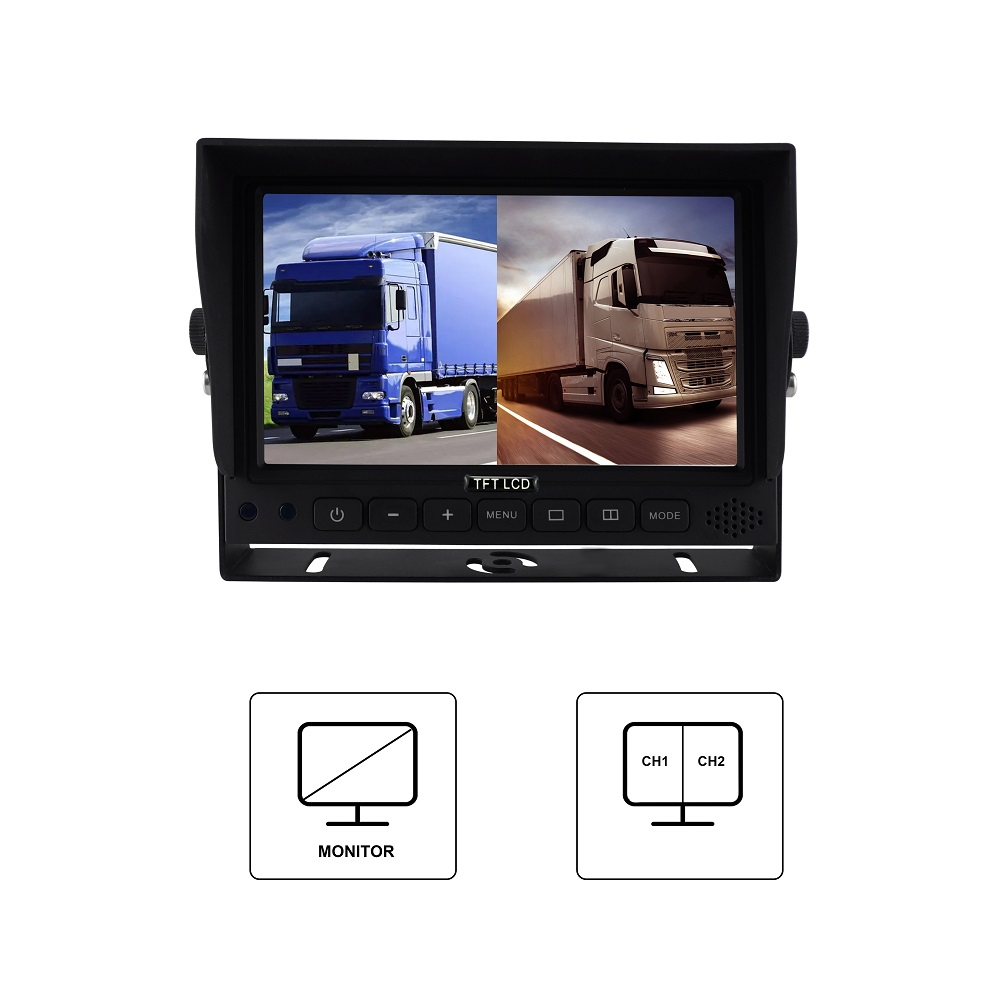

Video Mode Full image,2 split image
OSD menu,Remote control Yes
Connector  4pin aviation
Operating Temperature  -30℃~70℃, RH 95% MAX

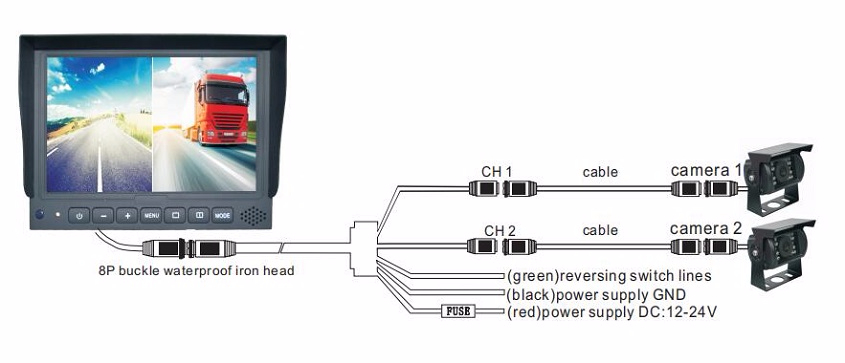

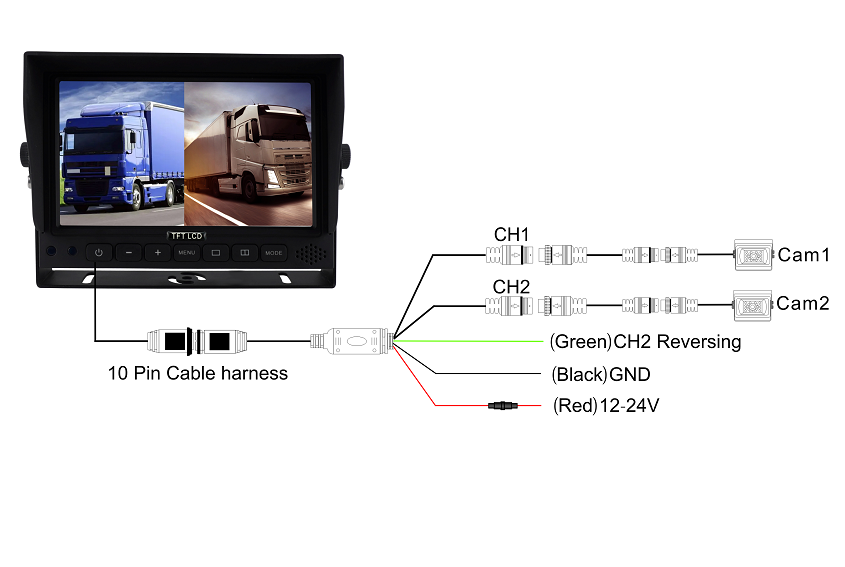

Wire Diagram:

  Power cable- M12 waterproof 4pin aviation connector,double-shielded pure copper wire

Product Applications:

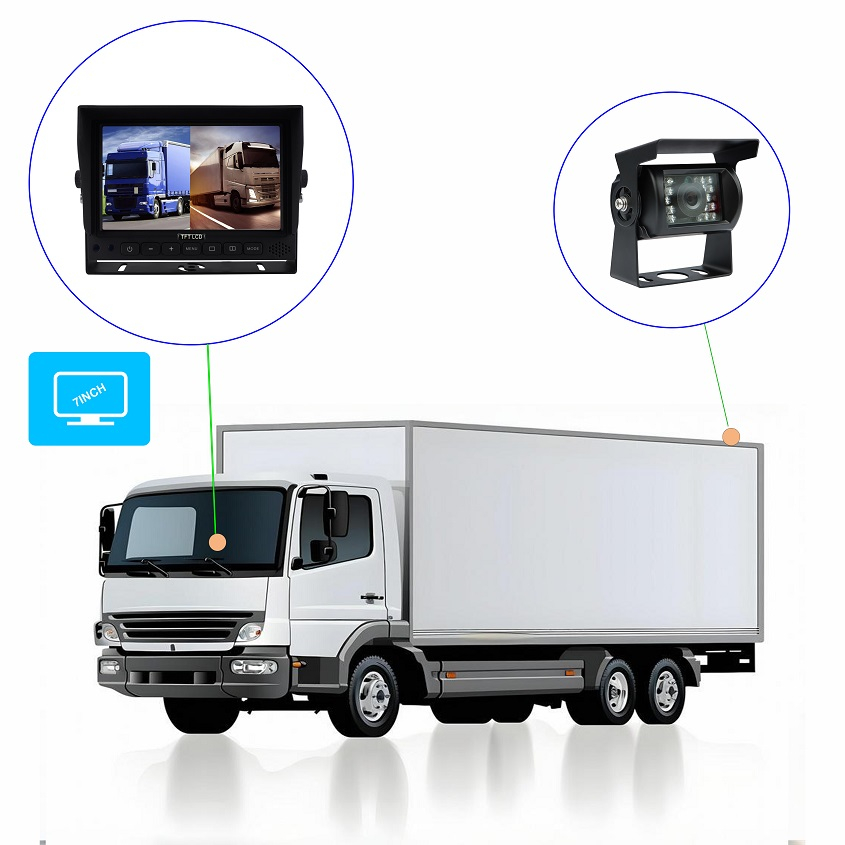

Ideal for trucks, trailers, RVs, vans, agriculture machines, forklifts, and other commercial vehicles.

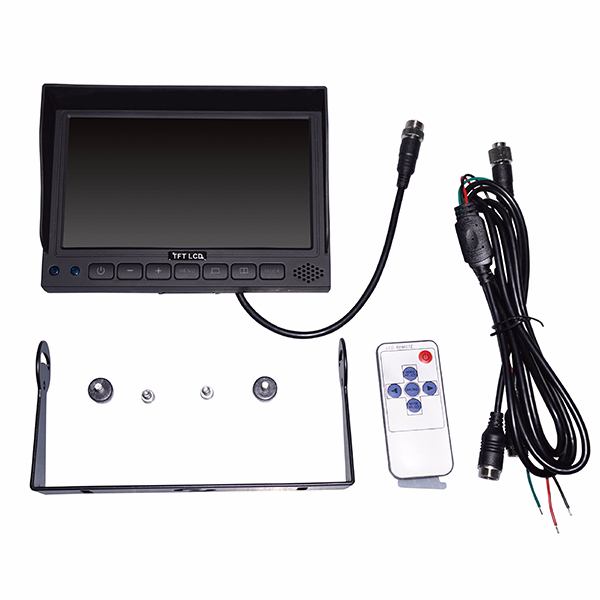

In the box:

1 x 7" HD 1080P Rearview Monitor
1 x U-shaped mount /dash mount bracket
1 x Power Harness with 2 camera inputs
1 x Remote Control
1 x Screw Kit for installation
1 x Manual



    Due to different customers have different product requirements, add the product may be installed on different vehicles, there may be some special requirements,based on our practical experience,the below are some points that our clients have actually mentioned and we already have solved it,Please read the following carefully.

Is it possible to change the menu language to the customer's country's language?

      Yes, if our default menu language does not include the client's country's language, we can use a translated OSD Menu provided by the client and then incorporate it into our software.

Can we add our company's Logo for sart up picture?

      Yes, you can provide us the 1024*600 resolution of your Logo.

We need a brighter screen, is that possible?

      Yes, our standard screen brightness is 500 cd/m2, but a 1000cd/m2  screen is also possible, though that would increase the cost.

Can the power lead be combined into a DC female socket?

      Yes, can do.if you also need our car cigarette lighter, that's fine too.

 Can be choose more different types of the install bracket?

       Yes,  we have others bracket, such dash mount, roof mount
