PRODUCT INTRODUCTION

Model number: ST-777AI-PRO

  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
  • AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer
Inquiry Now
AI Blind Spot Detection Camera with Integrated 3-Color Warning Light & Buzzer

Products Description:

ST-777AI-PRO: Professional AI BSD Camera with Visual & Audible Warning System

The ST-777AI-PRO is an all-in-one active safety solution designed for high-risk industrial environments. Unlike standard passive cameras, this system utilizes advanced deep-learning AI to identify pedestrians and vehicles in real-time.

With its unique integrated 3-color LED panels and high-decibel internal buzzer, it provides the driver with an intuitive, multi-layered defense against collisions—no external control box required.

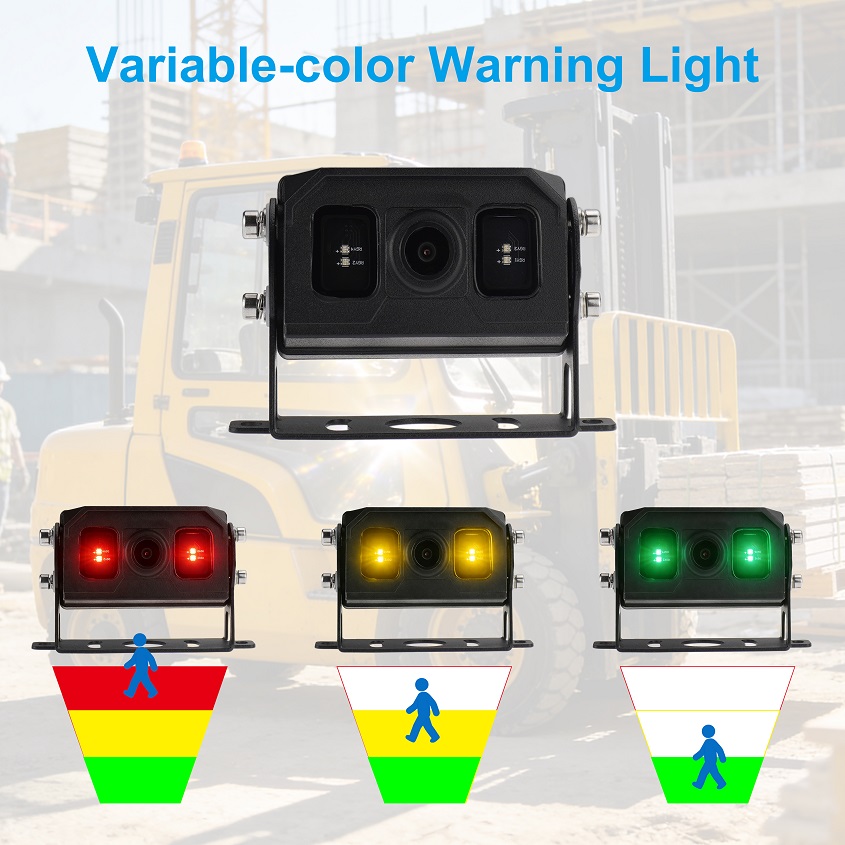

How the 3-Zone Warning Works:

The system automatically identifies pedestrians and vehicles, triggering different alerts at specific distances:

  • Green Zone (3.9M): Safe. The camera displays a green light. Used for general distance monitoring.

  • Yellow Zone (2.7M): Caution. The light turns yellow, alerting the driver to stay alert.

  • Red Zone (1.9M): Danger. The light flashes red and the built-in high-decibel buzzer sounds. Immediate braking is required.

  • Detection Targets: Pedestrians, Cyclists, Motorcyclists, Vehi

Why Choose ST-777AI-PRO?

  1. Direct Detection: Specifically tuned to recognize human shapes (pedestrians, cyclists) and vehicles. It ignores static objects like walls or poles, significantly reducing annoying false alarms.

  2. No Extra Controller Needed: The AI processing, warning lights, and buzzer are all built into the camera body. This makes installation much cleaner and faster.

  3. Variable-Color Warning Light: This is a key safety feature. The light on the camera itself changes color, providing a visible warning not just to the driver, but also to people standing near the vehicle.

  4. Built for Heavy Duty:  IP69K Waterproof, Rated for high-pressure washdowns and extreme outdoor weather.

  5. Wide Input (12-24V): Works on forklifts, excavators, trucks, and RVs

Product Specs:

Rear View Monitor Specs
Screen Size 7inch IPS AHD 1080p
Video input 2 channel
TV System PAL/NTSC
Power supply DC 9-36V
Trigger 1 trigger, AV2 for reversing
Connector 4pin aviation
Operating Temperature -30℃~70℃, RH 95% MAX
AI Camera Specs
Image Sensor  1/2.9" Color CMOS
 Resolution  720P
 Viewing angle 120 Degree
Lens 2.8MM
Power supply  DC 12V
Detection Range 4M
Waterproof Level IP69K
Camera housing Aluminium
Alert Built-in high-decibel audible alarm and 2x LED indicators (green, yellow, red)
Connector 4pin aviation
Operating Temperature -30℃~70℃

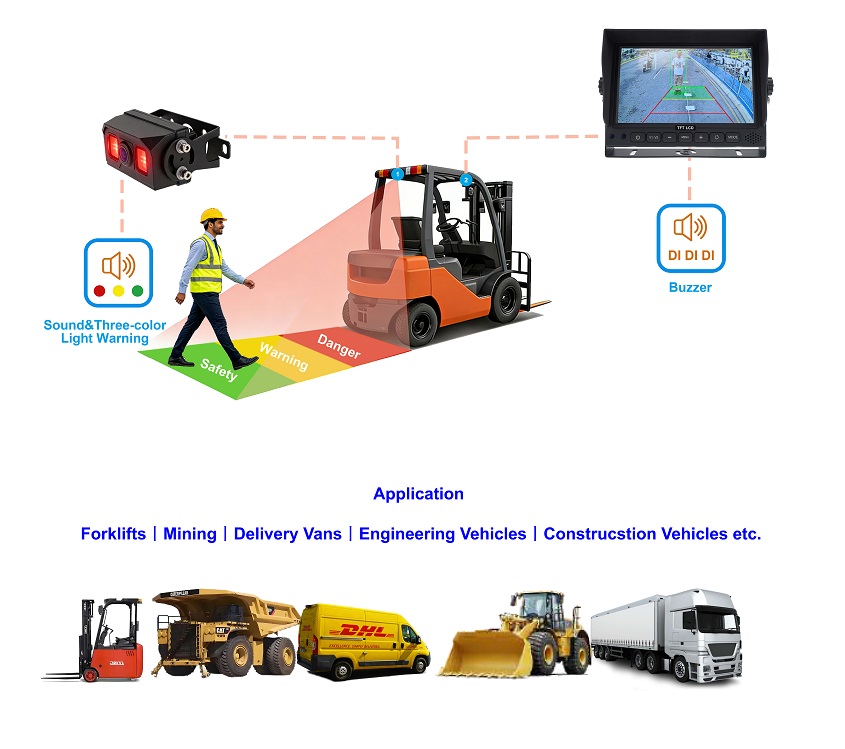

Application Scenarios:

Engineered for High-Risk Operations:

  • Logistics & Warehousing: Prevent forklift-pedestrian accidents in narrow aisles with instant red-light flashing alerts.

  • Mining & Construction: Reliable human recognition for excavators and dump trucks, even in dusty or low-light conditions.

  • Waste Management: Protect workers behind refuse trucks with the 1.9M-3.9M precision detection zones.

  • Agriculture: Monitor blind spots around large tractors and harvesters to ensure field safety.

  • Delivery Vans & Trucks: Acts as a side or rear BSD (Blind Spot Detection) system for urban driving

What's in the box:

1 x 7" HD 1080P Monitor(ST-799M-AHD)
1 x AI BSD Camera
1 x U-shaped mount bracket
1 x Power Harness
1 x Remote Control
1 x Screw Kit for installation
1 x Manual

Calibration-Free / Integrated Advantages:

  • Easy Deployment: Integrated design. AI, Lights, and Buzzer are all-in-one.

  • No Calibration Box: Works immediately after mounting and power connection.

  • Compact Housing: Rugged metal casing that fits tight spaces on forklifts and heavy trucks.
