Item number: ST-C123A
Main Features:
1. AHD 1080P Camera,wide voltage DC12-30V
2. 2 in 1, Parking sensor and Rear view camera
3. Parking sensor, Detecting distance: 0.3m-2.5m Alarm distance: 0-2.5m
4. External buzzer alarm
5. It can be used with any AHD version rearview monitors together
6. Applicate for Van, Truck, Trailer etc.
| HD 1080P alarm all-in-one parking sensor camera Specs | |
| Image sensor | 1/3" CMOS |
| Resolution | AHD 1080P (1920*1080) |
| Video format | AHD |
| Lens Angle | 120 degree |
| Connector | 4Pin aviation |
| IR Leds | 2pcs |
| Sound alert | Buzz sound |
| Video output | CVBS 1.0 Vpp / 75ohm |
| Detecting distance | 0.3m-2.5m |
| Alarm distance | 0-2.5m |
| Alarm frequency | Ultrasonic sensor (40mHz) |
| Sensor angle | X,Y,60℃ |
| Waterproof | IP68 |
| Voltage | DC 12V— 30V |
| Operating current | 20~200m |
| Power cost | Max 1W |
| Work temperature | -20℃---+70℃ |
| Alarm volume | 65dB |
| Materials | PC+ABS(Shell) |
| Metal(Bracket) | |
Item number: ST-866RC
Item number: ST-845RC-EX
Item number: ST-C05A-S
Item number: ST-C28A

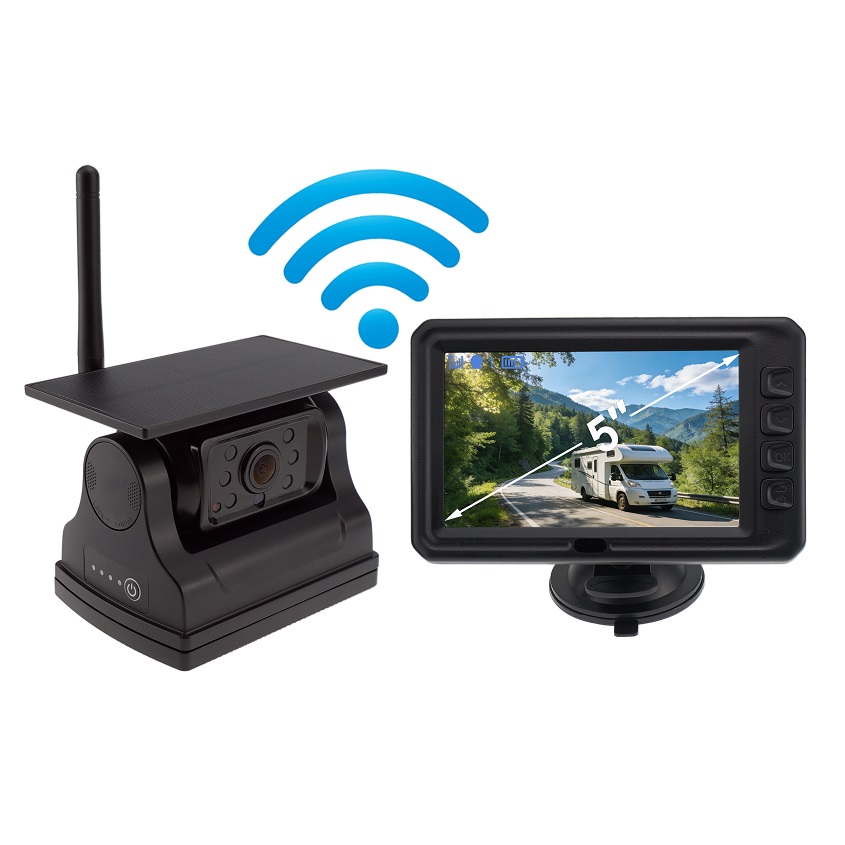

Item number: ST-555WRS, Reversing camera with 5" monitor - Set wifi camera HD 1080p Magnetic Solar with 6 IR LEDs, for comfortable parking and trouble-free mounting
