PRODUCT INTRODUCTION

Item number:ST-LPC-6

  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
  • 1080p Number License Plate Rear Camera
Inquiry Now
1080p Number License Plate Rear Camera

Product Features:

  • Aluminum Alloy Camera Casing
  • Wide angle view: horizontal angle 150 degrees

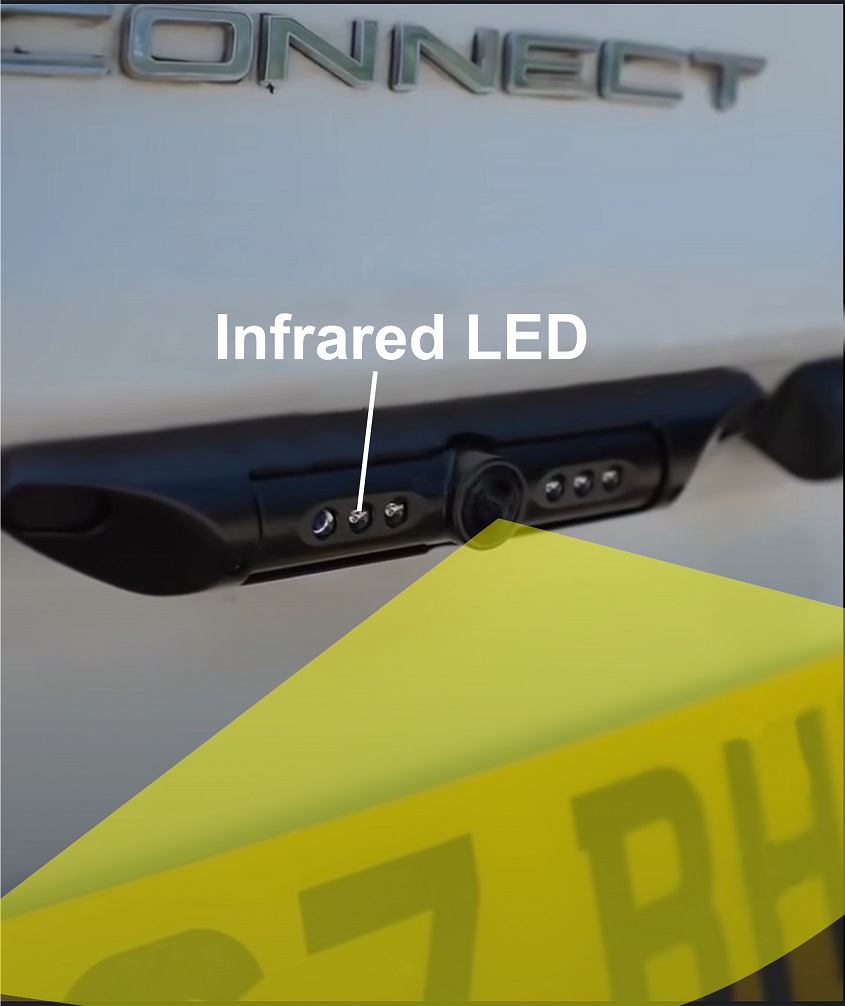

  • 5pcs Infrared LEDs ensure visibility in low-light conditions
  • IP68 Waterproof Rating: built to withstand rain, dust, and car washes
  • Plug-and-play wiring compatible with AHD Signal monitors and DVR systems
  • Audio/speaker optional
  • 4pin aviation connector or 4pin mini din for Dash cameras
  • Applications for Car, SUV, Vans, RVs etc.

Product Parameters:

Category Parameter
Image Sensor 1/2.9" CMOS Sensor
Resolution AHD 1080p
Effective Pixels  1920(H) x 1080(V)
TV System PAL/NTSC
Lens 1.7mm
Viewing angle 150 Degree(H)
Power supply DC 12V,  5V optional
Waterproof Level IP68
IR lights 5Pcs
Audio  Optional
Image Mirror or Normal optional
Power Consumption <3W
Maximum current <250mA
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Video Output 1.0 Vp-p/75 Ohm
IR cut Yes
Connector 4pin aviation or 4pin mini din for Dash cameras
Operating Temperature  -30℃~70℃, RH 95% MAX
