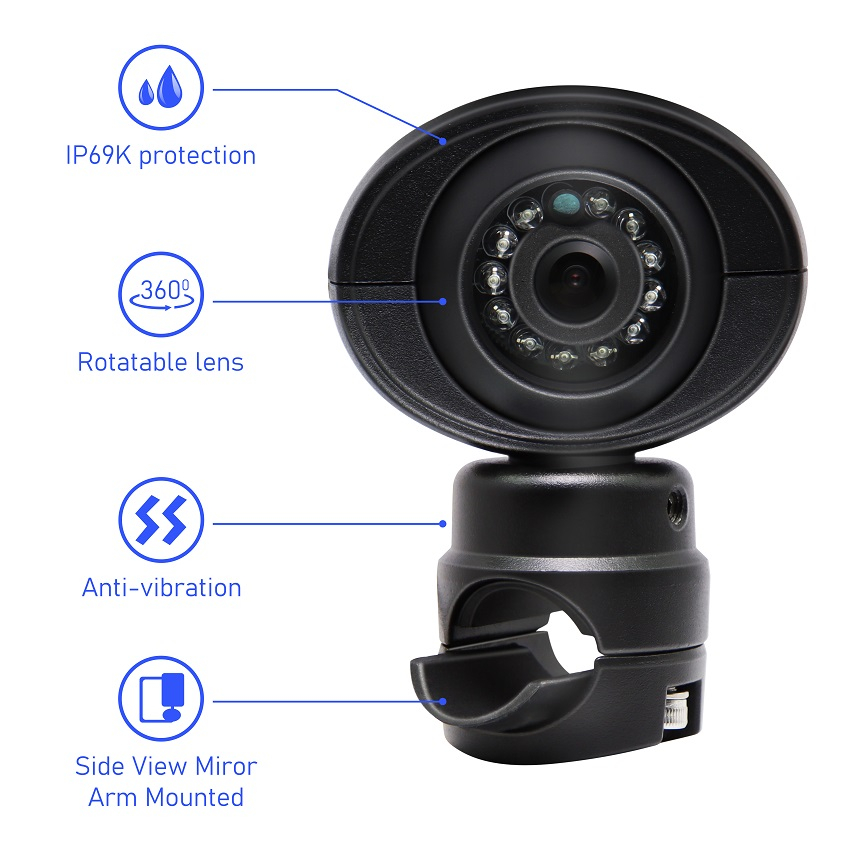

Main Features:

1. Side mirror arm mounting, rotatable lens
2. IP69K Waterproof level, anti-vibration
3. Universal install size,Zinc alloy body

Specifications:

Image sensor: 1/2.9”AHD GC2053 or Sony 307

Resolution: 1280(H)x720(V）/1920(H) x 1080(V)

TV System: PAL/NTSC

Viewing angle: 120 Degree

Power voltage: DC 12V

Waterproof Rating: IP69K

IR Leds: 12pcs

IR cut: Yes

Night vision distance:8-10m

Frame rate:25fps/30fps

Power Consumption:＜3W

Minimum Illumination:0.1 Lux(day),0 Lux (with IR)

Video Output:1.0 Vp-p/75 Ohm

Connector: 4Pin aviation

Operating Temperature:-20℃～70℃, RH 95% MAX

Storage Temperature:-30℃～80℃, RH 95% MAX

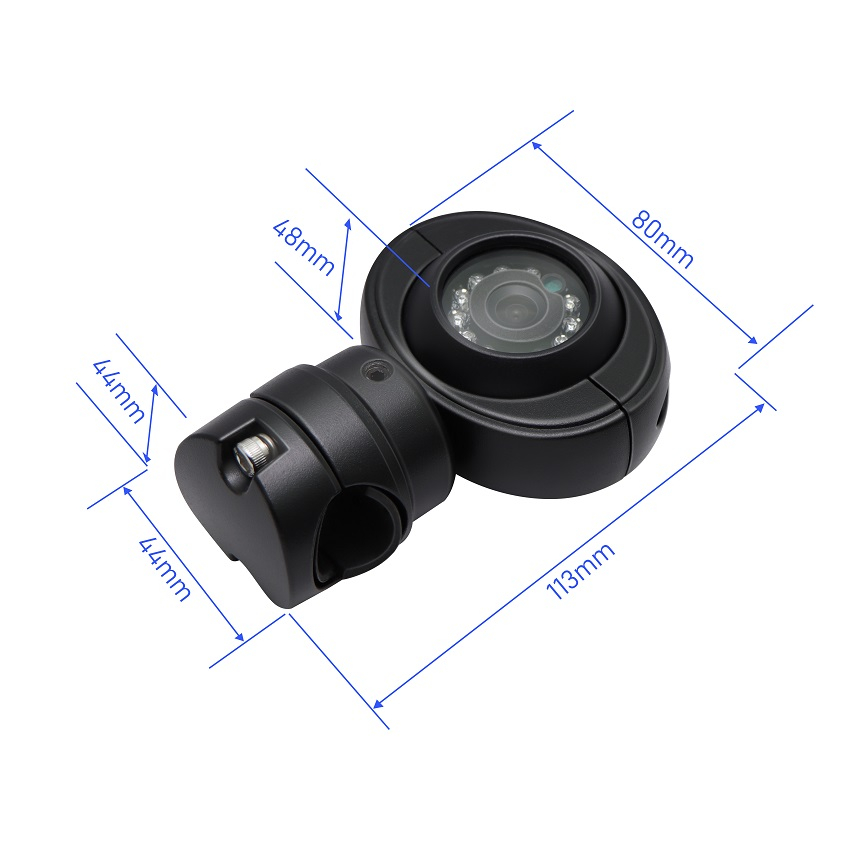

Camera size:

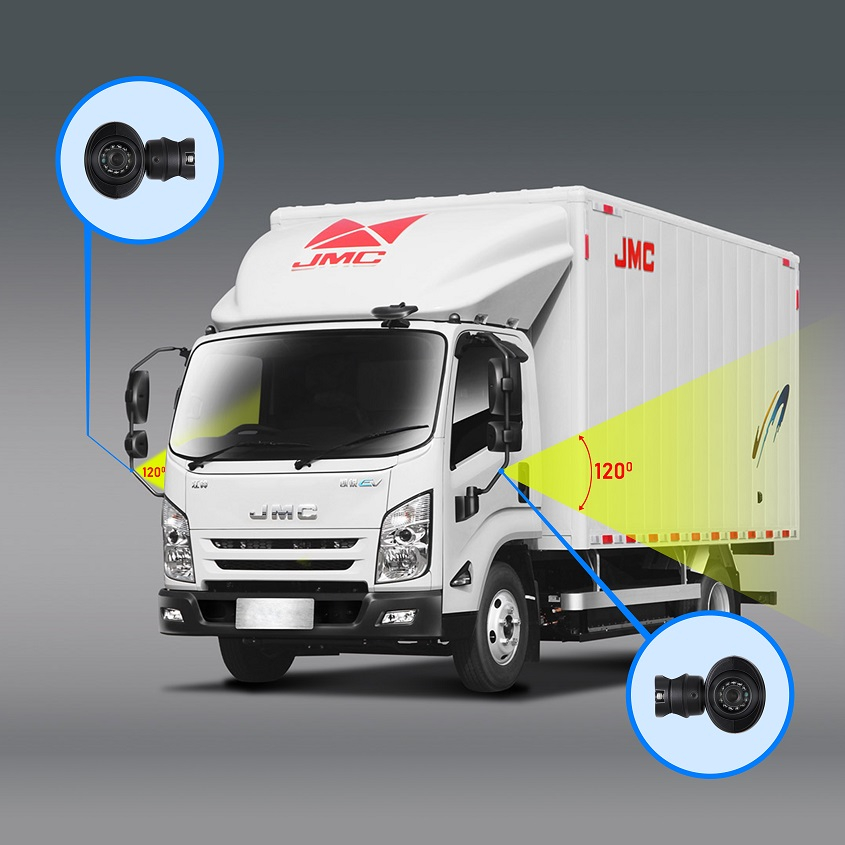

Install position:
