Product Features:

• 7" Stalk AHD 1080p mirror monitor, touchscreen button
• IPS Led panel, very clear picture quality
• 2 Channel,compatible with AHD and CVBS cameras inputs

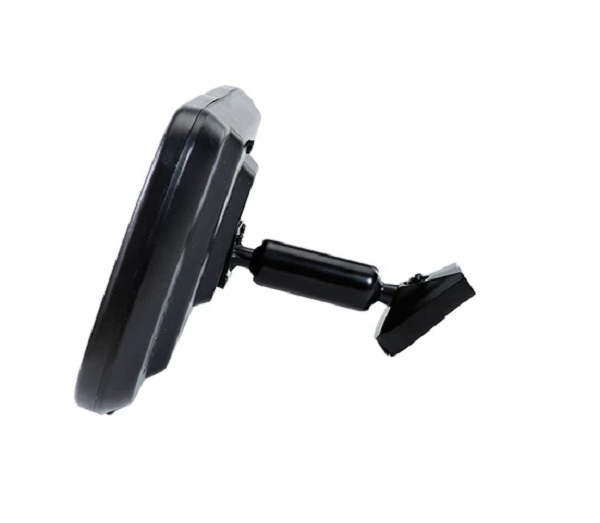

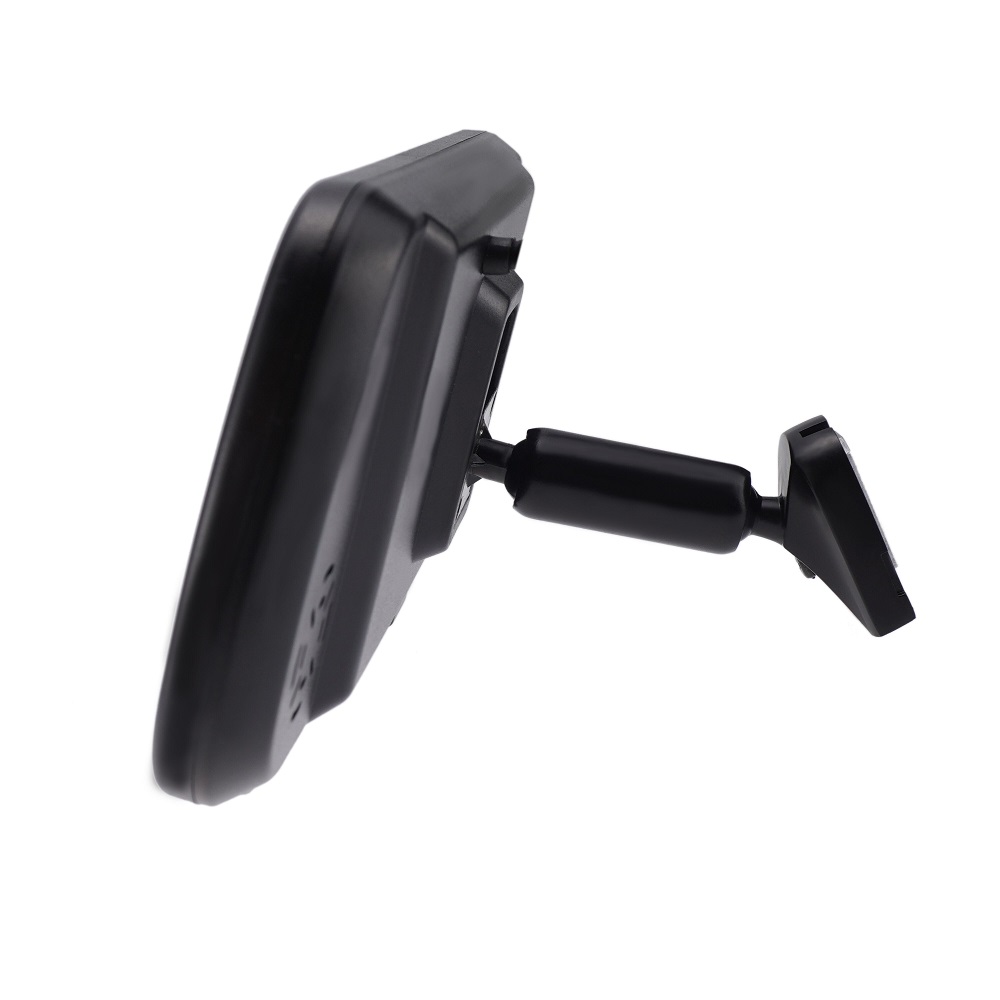

• Stalk mirror monitor that mounts to the windscreen for flexible viewing angles
• Variety of stalks available for customization to fit different vehicle models

     Approvals and Certification: E-mark, CE

Product Parameters:

7inch IPS AHD 1080P Mirror Monitor With Stalk Mount

Video format: AHD/CVBS

Screen size: 7" Color TFT LCD

Resolution: 1024(W)*RGB*600(H)

Display ratio: 16:9/4:3

System: PAL/NTSC

Voltage:DC 9-36V

Brightness: 500cd/m2, 1000cd/m2 optional

Contrast: 350:1

Power consumption: 4.5W

Color: black

Two Video AV input, AV2 for reversing

Viewing angle: L/R 85/85 U/D 85/85

OSD menu,Remote control

Connector: 4Pin aviation

Operating Temperature: -20℃~70℃

Storage Temperature: -30℃~80℃

Vehicles: Car , Van, Motorhomes etc

Variety of stalk mount bracket optional, such for Ford/VW/Mercedes/Renault/Toyota ProAce etc

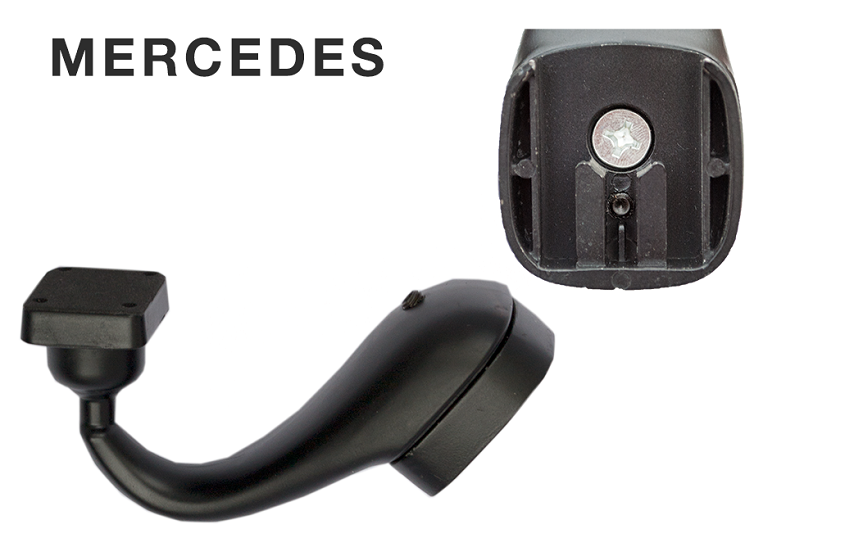

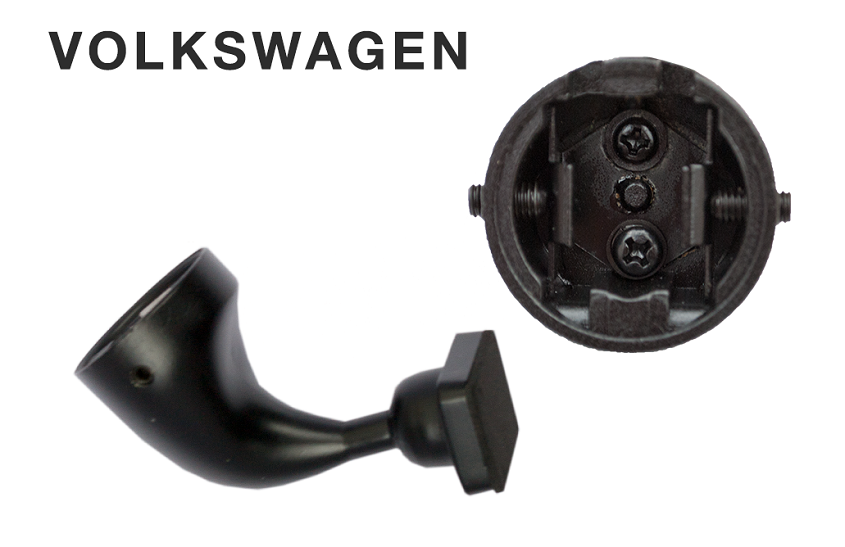

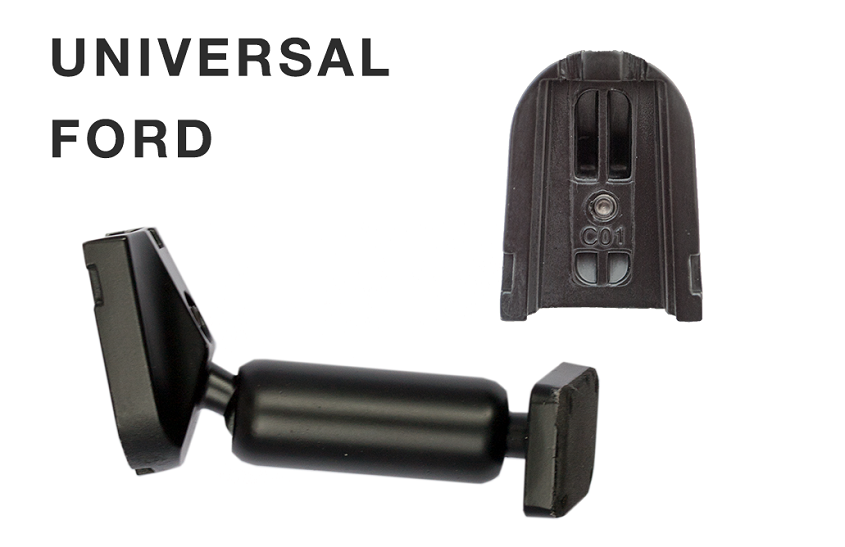

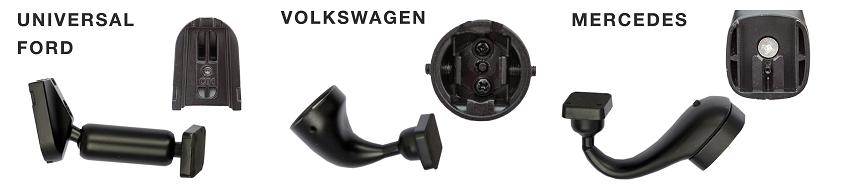

Stalk Mount Examples:

Wire Diagram:

Product Applications:
