AI Blind Spot Detection Camera | Deep Learning Safety Tech for Commercial Vehicles

PRODUCT INTRODUCTION

Item number: ST-C05A-AI

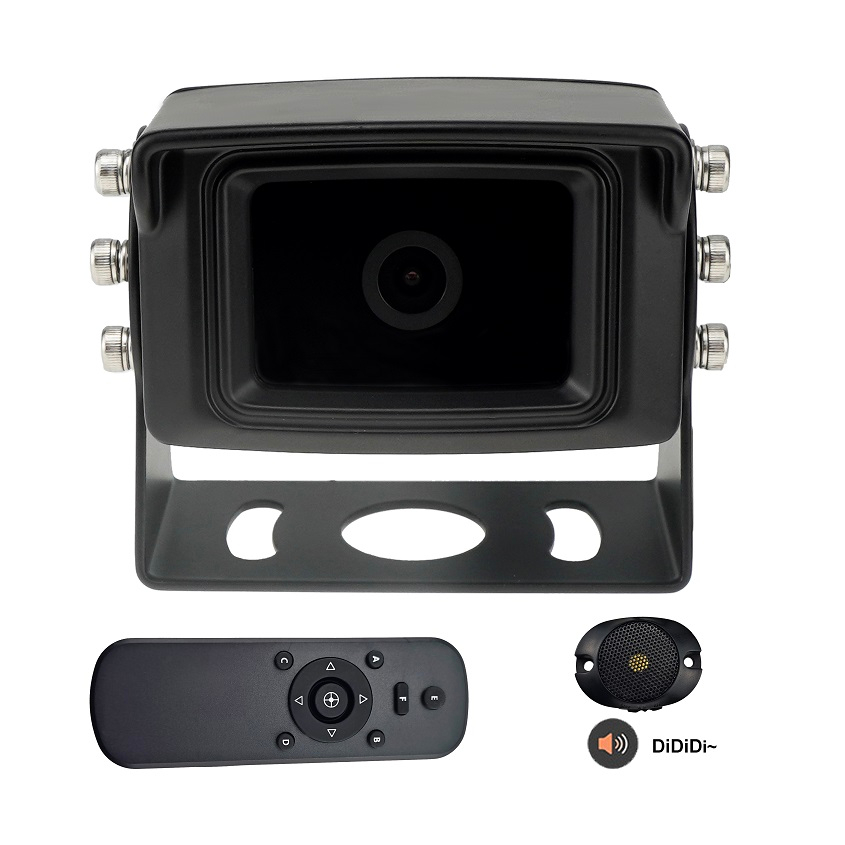

AI BSD Camera

Overview:

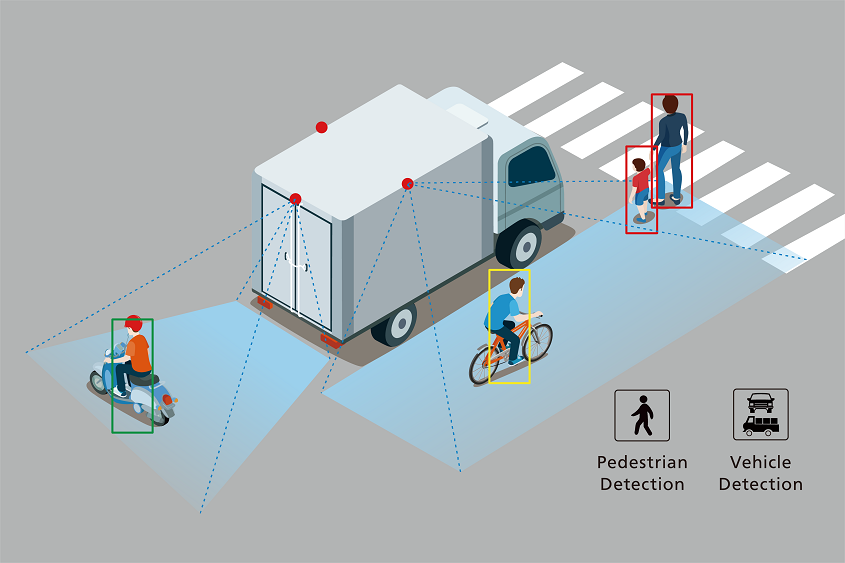

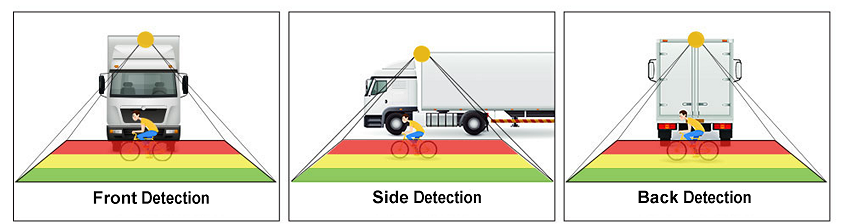

When peopel or vehicle enters the set area around the vehicle while the vehicle is working,the AI camera can identify and present it on the monitor in real time, superimpose the personnel tracking and alarm identification frame, and send a real-time audio and video alarm to the driver to remind the driver to pay attention in time to avoid collision accidents.

Key Features:

AI Detection Technology – Real‑time pedestrian and vehicle recognition
Real-Time Alerts- Provides visual and audible alerts when a vehicle is detected in the blind spot
Full HD 1080P Resolution – Crisp video quality for accurate monitoring
Remote Control – Adjust detection zones, range, and alerts easily
IP69K Waterproof Rating – Built for all weather conditions
Durability: Heavy-Duty,Shockproof

Product Specs:

Category	Parameter
Image sensor	1/2.9' CMOS
Effective Resolution	1920*1080P
Viewing angle	2.8mm lens, 120 degrees
Detection distance	0.2-10M
Video format	AHD/CVBS/TVI adjustable
System	PAL/NTSC
Image	Mirror
Waterproof level	IP69K
3D Noise reduction	Support
Connectors	4PIN aviation
Power supply	12V
Working temperature	-30℃ to 70℃
Screen Size	7-inch IPS Screen
Operating Frequency Range	2400 ~ 2483.5 MHz
Transmit Power	18 dBm
