12.3-inch Full-HD E-Mirror System | Dual-Lens AHD Blind Spot Camera for Truck & Fleet Safety

PRODUCT INTRODUCTION

Model number: ST-123EMM-S

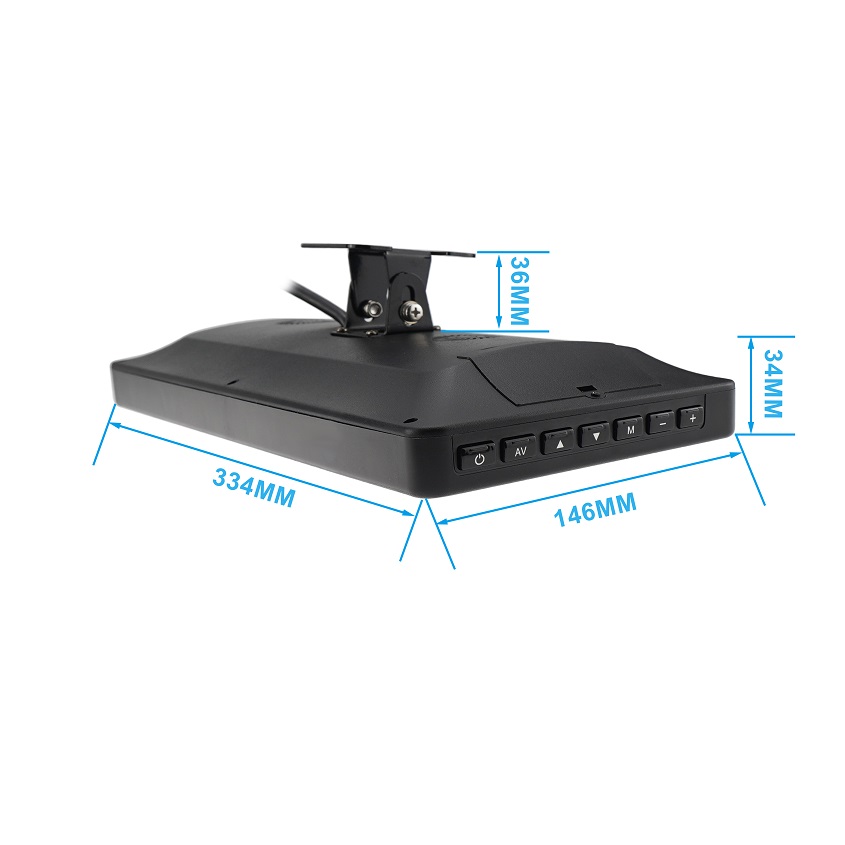

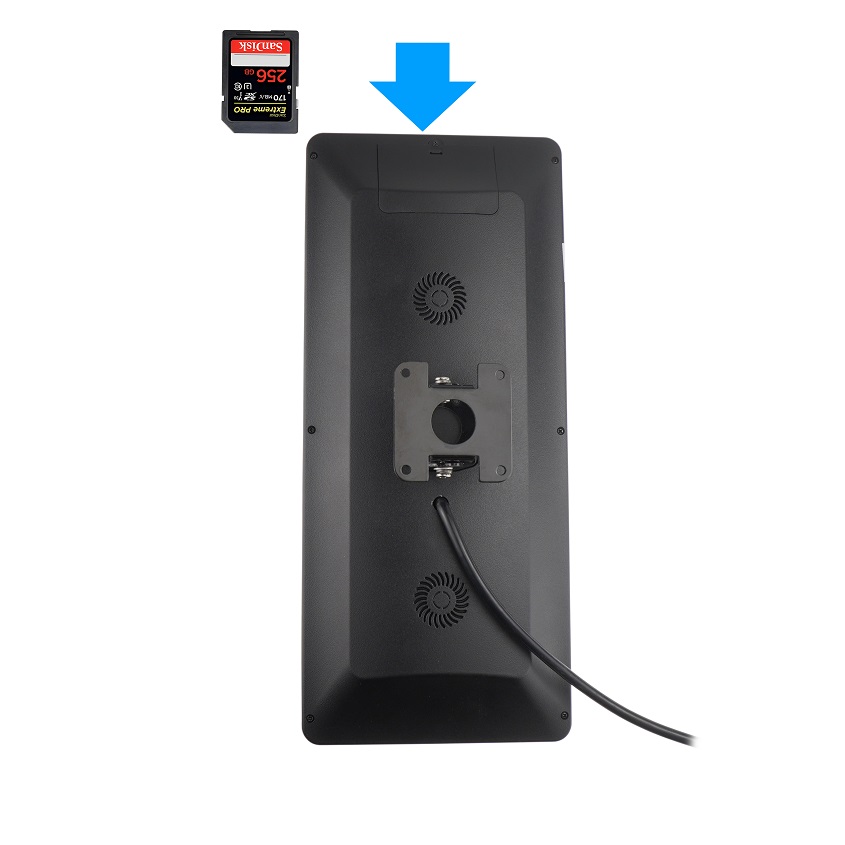

12.3" Digital Rear View Mirror with Dual Lens Camera for Trucks & Commercial Vehicles

Products Description:

12.3 Inch 1080P Digital Mirror System for Multi Trailer Freight and Mining Vehicles with Aerodynamic IP69K Cameras

The ST-123EMM-S(CMS) is not just a monitor;it is a professional-grade visibility solution engineered by Standtop for the rigorous demands of the transportation industry.By replacing traditional glass mirrors with an AHD 1080P digital ecosystem, we provide fleet operators with a fail-safe way to eliminate blind spots in any environment.

Why it works for your fleet:

Built for Long-Haul & Multi-Trailers When pulling multiple trailers (like road trains), a 150° wide-angle digital view is a game changer. Unlike glass mirrors that lose visibility when the trailer pivots, this system keeps the entire length of your load in view during sharp turns and lane changes.
Tough Hardware for Mining & Construction The cameras are IP69K rated. This means they are fully sealed against fine dust and can handle high-pressure power washing every day. Whether it's a dusty mine site or a muddy construction zone, the hardware is built to last.
Better Fuel Economy Traditional mirrors are like sails catching the wind. Our small, aerodynamic camera "wings" cut through the air, reducing drag. For long-distance fleets, this small change adds up to noticeable fuel savings at the end of the month.
Clear Vision in Low Light The system uses WDR (Wide Dynamic Range) to stop glare from following headlights at night. In dark rural areas, the low-light sensors pull in more light than the human eye, giving the driver a much safer view of the road shoulders and surroundings.
Stable Performance in All Climates From desert heat (+70°C) to freezing altitudes (-30°C), the ST-123EMM-S keeps working. It handles DC 12V to 36V power inputs, so it’s compatible with any heavy truck or yellow metal machinery without needing extra converters.

Product Specs:

Screen Size	12.3 inch IPS Screen (1920 x 720)
Video Signal	AHD 1080P/720P Compatible
View Modes	Full Screen / Split Screen
Camera Housing	Zinc Alloy
Camera Sensor	1/2.8" Sony Starvis IMX307
Viewing angle	90/150 Degree (H)
Waterproof Rating	IP69K
Power Input	DC 10V - 36V (Wide Voltage for Trucks/Buses)

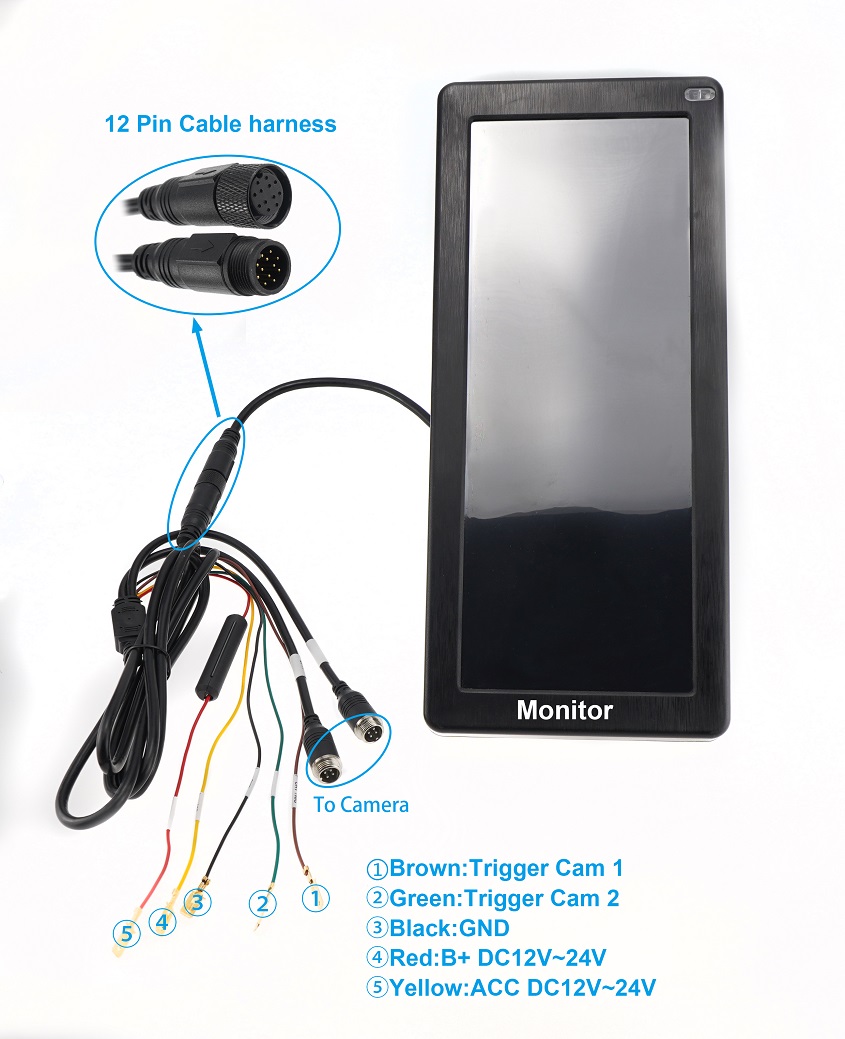

Wire Diagram:

Suitable Vehicle Types:

Industrial Heavy Haulage: Ideal for road trains and heavy-duty logistics where standard mirrors leave dangerous blind spots at the rear of the trailers.
Open-Pit Mining & Earthmoving: Provides a ruggedized visual solution for machinery exposed to constant vibration, impact, and high-pressure washdowns.
Remote Route Logistics: Enhances driver safety on long-distance routes through superior low-light performance and aerodynamic efficiency.

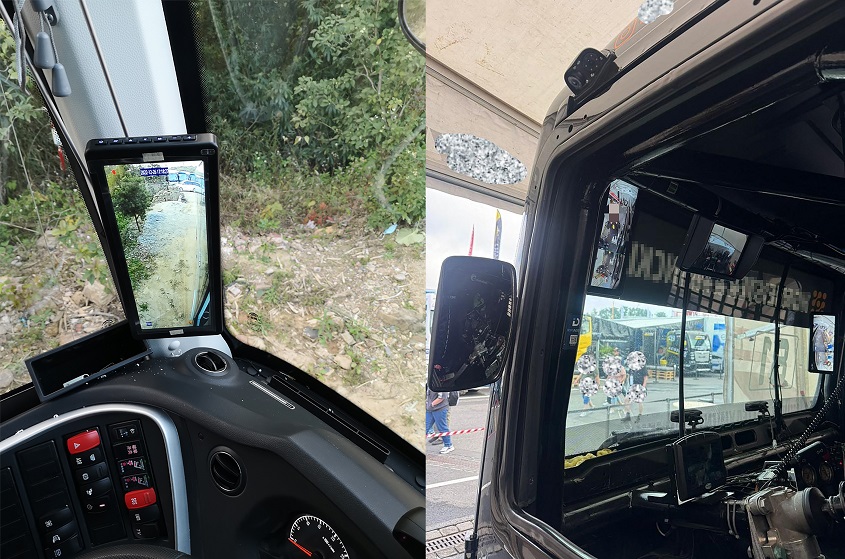

Side view camera wing of ST-123EMM-S installed on heavy duty truck and bus

FAQ Schema

Q1: Can the ST-123EMM-S system completely replace traditional glass mirrors?

A: Yes. The ST-123EMM-S.Digital side mirror is designed as a full digital replacement. It provides a significantly wider field of view (up to 3x) and eliminates blind spots that physical mirrors cannot cover, especially in heavy rain or low-light conditions.

Q2: How does the dual-lens camera improve driving safety?

A: Our unique dual-lens architecture provides a split-view. The top lens captures distant traffic for safe lane changes, while the bottom lens focuses on the "blind zone" near the vehicle's side and rear wheels, preventing side-swipe accidents during tight turns.

Q3: Is the system compatible with all commercial vehicle voltages?

A: Absolutely. The system supports a wide voltage input of DC 9V - 36V, making it perfectly compatible with heavy-duty trucks, buses, trailers, and RVs without the need for additional voltage converters.

Q4: How does the screen perform under direct sunlight?

A: The 12.3-inch IPS monitor features a high-brightness panel (up to 1000 nits) and an anti-glare coating, ensuring clear visibility even in intense direct sunlight.

Q5: Is the camera durable enough for off-road or construction sites?

A: Yes. The camera housing is made of high-strength zinc alloy with an IP69K waterproof and dustproof rating, the highest industry standard. It is built to withstand high-pressure steam cleaning and extreme vibrations.

Professional Installation & Integration

The ST-123EMM-S is engineered for straightforward integration into existing fleet structures. Our "Plug-and-Play" AHD cabling ensures a secure, interference-free connection.

Step 1: Mounting the Monitor: The 12.3" ultra-wide display can be mounted on the A-pillar or dashboard using our heavy-duty brackets, ensuring it sits within the driver’s natural line of sight.
Step 2: Camera Positioning: The aerodynamic dual-lens camera is typically installed on the upper side of the vehicle body. Its sleek design reduces wind resistance and fuel consumption.
Step 3: Single-Cable Wiring: We use high-grade 4-pin aviation connectors that carry power, video, and audio in a single cable, simplifying the routing process and enhancing system stability.
Step 4: Smart Triggering: Connect the trigger wire to the vehicle’s turn signals or reverse gear to automatically switch view modes (e.g., full-screen side view when signaling).
