PRODUCT INTRODUCTION

Model number: ST-799AHD-S

7 Inch AHD Wired Reverse Camera System for Heavy Duty Vehicles

Products Description:

Heavy-Duty Wired Vision System

A professional-grade visual monitoring solution designed for the rigorous demands of industrial, agricultural, and commercial vehicle operations. This wired AHD system ensures stable, interference-free imaging in environments where equipment reliability is critical.

Technical Features

Weather Protection (IP68): The camera is fully sealed to prevent the ingress of dust, rain, and debris. Built for consistent outdoor operation in all weather conditions.
Signal Stability: Uses threaded 4-pin aviation connectors to maintain a secure connection, preventing signal loss caused by continuous vehicle vibration or rough terrain.
Wide Voltage Compatibility: Supports DC 12V-36V input. Integrated circuit protection manages voltage spikes common in heavy machinery power systems.
AHD High Definition: Delivers clear 1080P/720P video with zero latency. Optimized for real-time monitoring of blind spots and rear-view perspectives.
Night Visibility: Integrated with 18 high-intensity IR LEDs and an automatic sensor for high-contrast imaging in low-light and nighttime conditions.

Product Specs:

7" AHD Rearview Monitor

Screen Size: 7-inch IPS (16:9)
Resolution: 1024 x 600 RGB
Video Input: 2-Channel (AHD/CVBS Compatible)
Brightness: 700cd/m²,1000cd/m² optional
System: PAL & NTSC
Voltage: DC 9V–36V
Viewing Angle: U/D/L/R 85° (Full View)
Connector: Professional 4-Pin Aviation
Certifications: CE, E-Mark

AHD Rear View Camera

Sensor: 1/2.9" CMOS
Resolution: 1920 x 1080P (2MP)
Viewing Angle: 120 Degree
Waterproof Rating: IP68
Voltage: DC 12V
Night Vision: 18pcs IR LEDs,up to 15m
Material: Zinc Alloy
Working temperature: -30℃ to 70℃
Certifications: CE, E-Mark

Extension Cable

Type: 4-Pin Aviation Cable
Length: 10m/15m/20m optional
Shielded Anti-interference Design

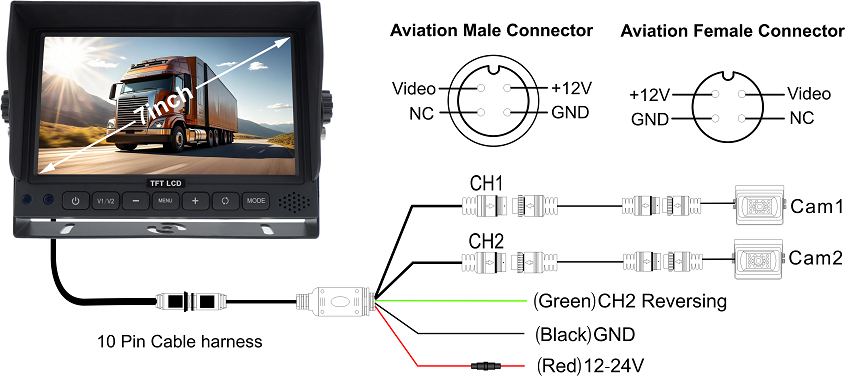

Wiring & Installation Diagram

Our system utilizes double-shielded pure copper extension cables (5m-20m optional) to ensure signal integrity over long distances, making it the perfect fit for extra-long articulated vehicles.

Waterproof-4-pin-aviation-cable-connector-with-screw-lock

AHD monitor kit for trattore agricolo

Versatile Fleet Applications：

Engineered for integration across multiple heavy-duty sectors:

Agriculture: Trattori, Mietitrebbie, Grain Carts, and Telehandlers.
Construction: Escavatori, Mezzi pesanti, Dump Trucks, Loaders, and Cranes.
Transport & Logistics: HGVs, Trailers, Rigid Trucks, and Vans.
Specialized Vehicles: Waste Management, Fire Trucks, and Mining Equipment.

What's In the box:

1 x 7" AHD rearview monitor
1 x AHD 1080P camera
1 x 15M longer extension cable
1 x Power cable
2 x Screw Kit for installation
1 x User manual

Manufacturing & B2B Services

Professional Expertise: Specializing in vehicle safety systems since 2010.
OEM/ODM Support: Customizable cable lengths (up to 30m), specialized mounting brackets, and private labeling options.
Quality Control: Every unit undergoes standardized testing for vibration resistance, waterproof sealing, and functional aging before delivery.
Supply Chain Stability: Reliable batch production and technical support for distributors and fleet operators.

Frequently Asked Questions (FAQ)

Q: Is the system compatible with both 12V and 24V vehicle power systems?

A: Yes. The system supports a wide voltage input from DC 12V to 36V. It includes built-in transient voltage protection to handle power spikes commonly found in heavy-duty agricultural and construction machinery.

Q: How does the wired connection compare to wireless systems in terms of stability?

A: This system uses professional 4-pin aviation cables with threaded screw-lock connectors. Unlike wireless systems, it provides a permanent, interference-free connection with zero latency, which is critical for safety in high-vibration industrial environments.

Q: Can the camera withstand high-pressure cleaning and mud?

A: The camera is IP68 rated, meaning it is fully sealed against dust, heavy rain, and mud. It is designed for reliable outdoor operation on tractors, excavators, and trucks that require frequent cleaning and work in harsh field conditions.

Q: Does the monitor support multiple camera inputs?

A: The 7-inch AHD monitor supports dual-channel (CH1/CH2) inputs. CH2 has trigger wire, allowing the screen to switch automatically when the vehicle is put into reverse or when a specific maneuver is signaled.

Q: What is the maximum cable length supported without signal loss?

A: Thanks to the high-quality shielded 4-pin cabling, the system maintains a clear AHD signal over long distances. We offer standard cable lengths of 5m, 10m, 15m, and 20m, with custom lengths up to 30m available for specialized trailers and large harvesters.

Q: Can the system operate in extreme winter or summer temperatures?

A: Yes. The hardware is tested for stable operation in temperatures ranging from -30°C to +70°C. The die-cast aluminum camera housing also helps with heat dissipation in high-temperature environments.

Q: Do you offer customization for OEM or fleet projects?

A: As a manufacturer since 2010, we provide OEM/ODM services, including custom mounting brackets, specific cable configurations, and private labeling for distributors and fleet operators.

Get a Quote

"Contact for Technical Specifications and Pricing" For bulk quotations, customized project requirements, or technical datasheets, please contact our sales department.

ST-799AHD-S User Manual
