AHD/CVBS Switchable 360° Rotatable Car Backup Camera | Universal HD Reversing Camera for Flexible Mounting

PRODUCT INTRODUCTION

Item number: ST-CMOS-778, ECE R10 & CE certificates

Inquiry Now

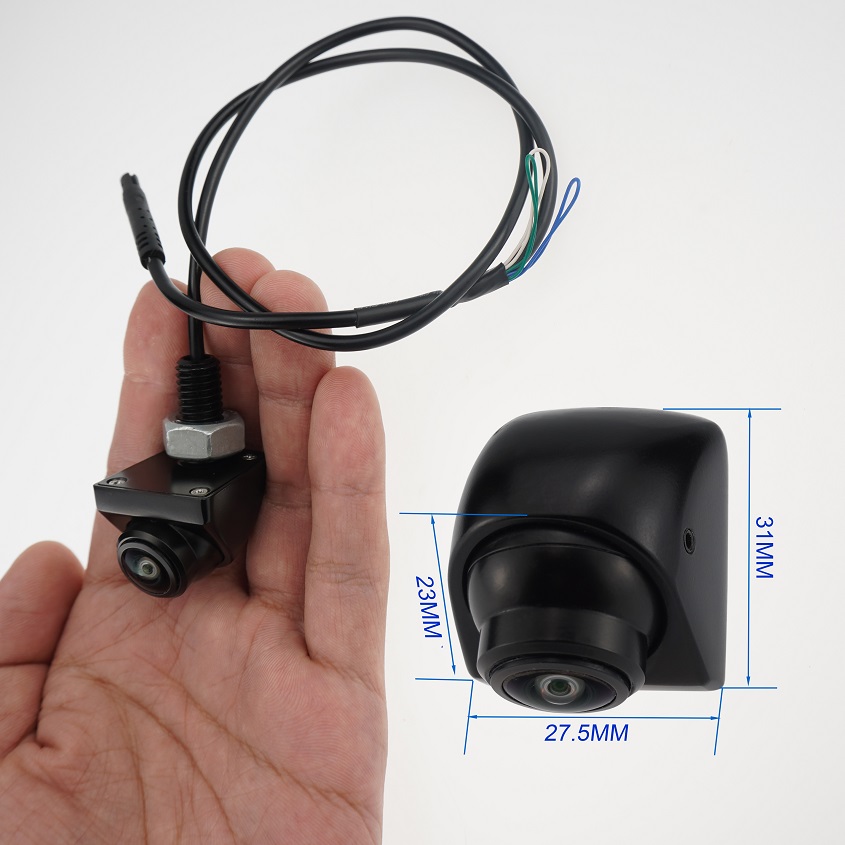

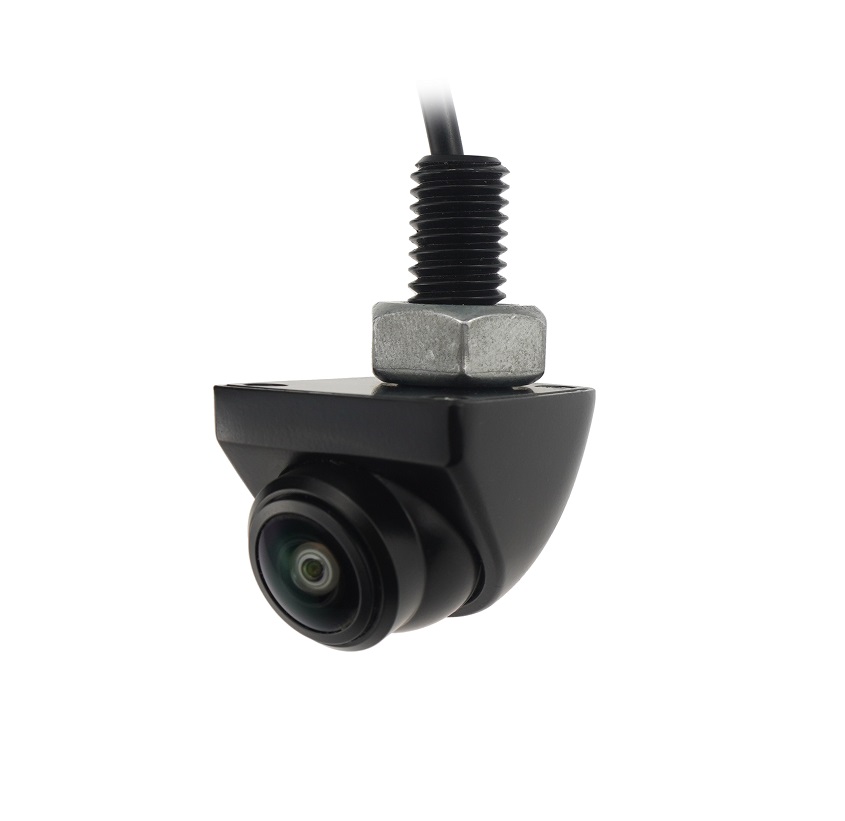

AHD/CVBS switchable 360° Rotatable Car backup Camera

Key Features:

AHD/CVBS switch wires, AHD:1080p resolution, CVBS: 700TVL
Mirror on/off switch wire, guide line on/off switch wire
360° rotatable lens, adjustable viewing
Flip down and Normal 2 mounting method

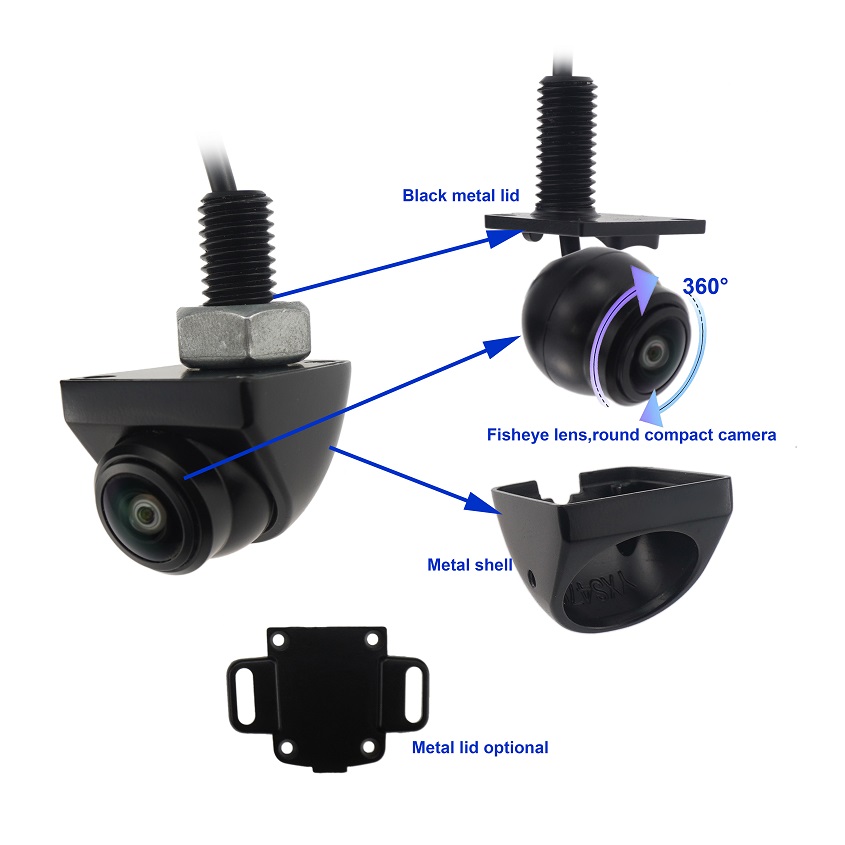

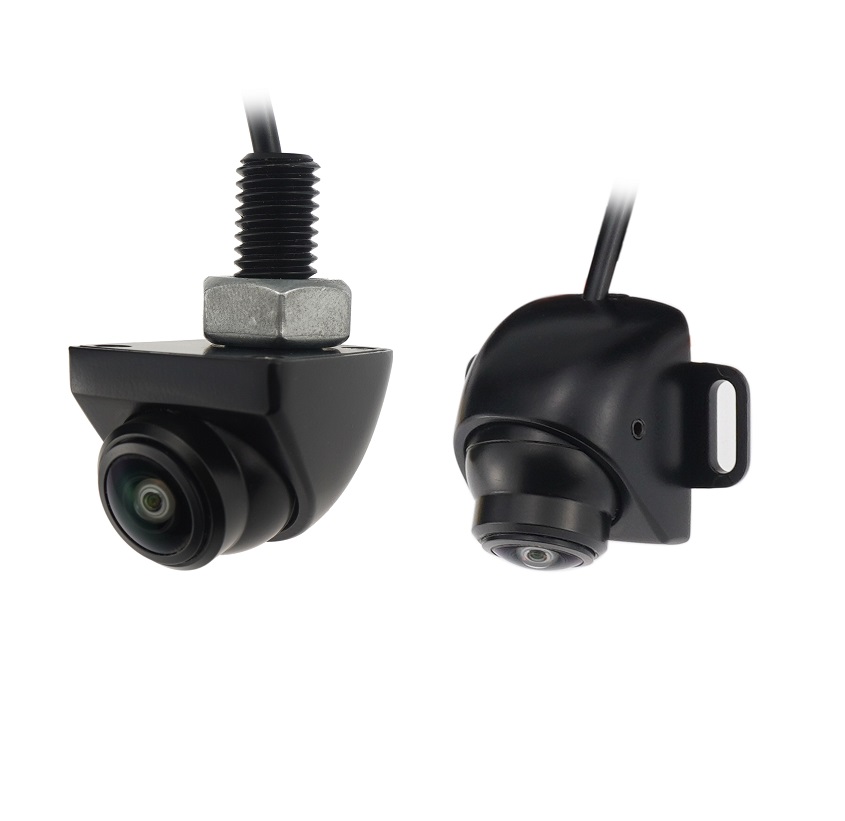

Metal screw tube or Metal lid two types for install

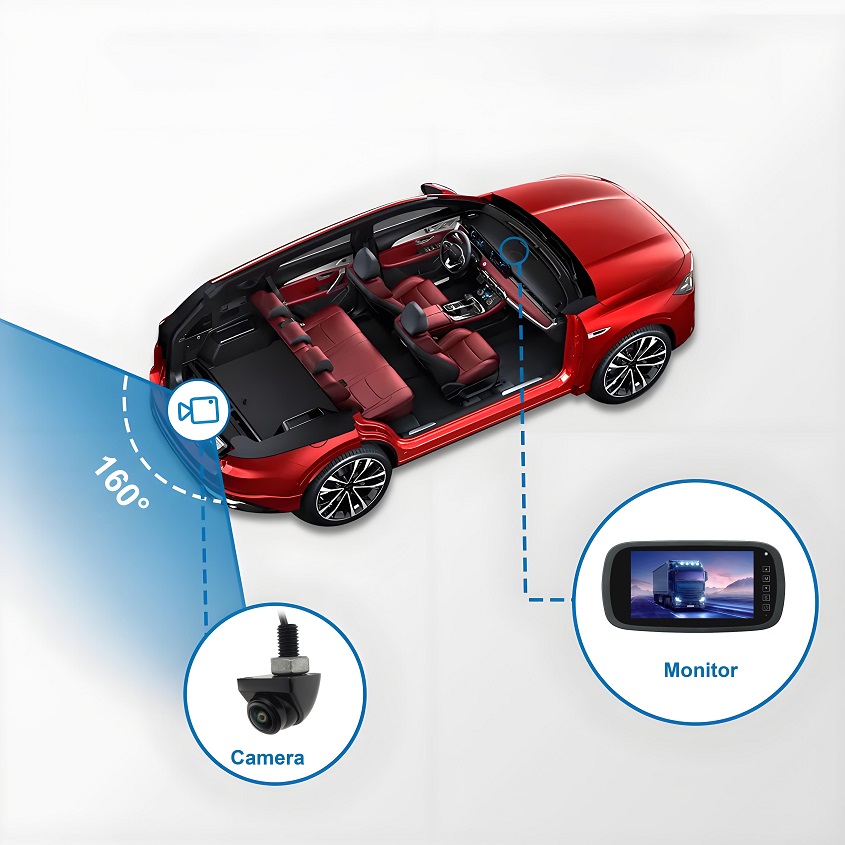

Wide angle view: AHD:160° ,CVBS: 155° Horizontal angle
Mounting: front, rear, side
IP69 Waterproof rate
Approvals & Certification: E-Mark & CE

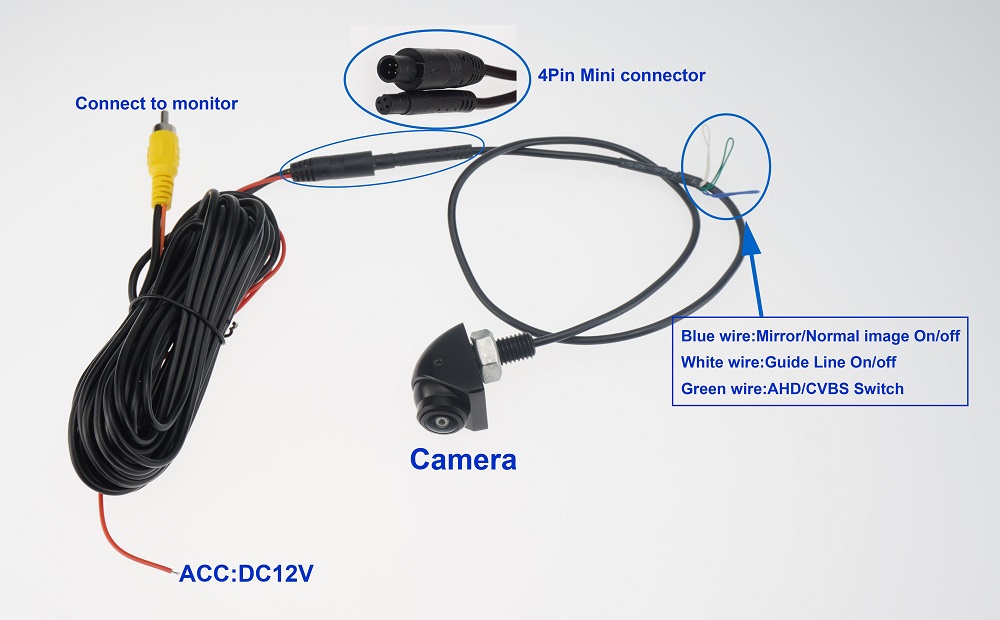

1. AHD/CVBS Switch: The default setting is AHD,cutting the green wire switch to CVBS signal

2. Mirror/Normal: The default setting is Mirror mode,cutting the blue wire switch to Normal image

3.Guide line on/off: The default is without guide line, cutting the white wire switch to guide line

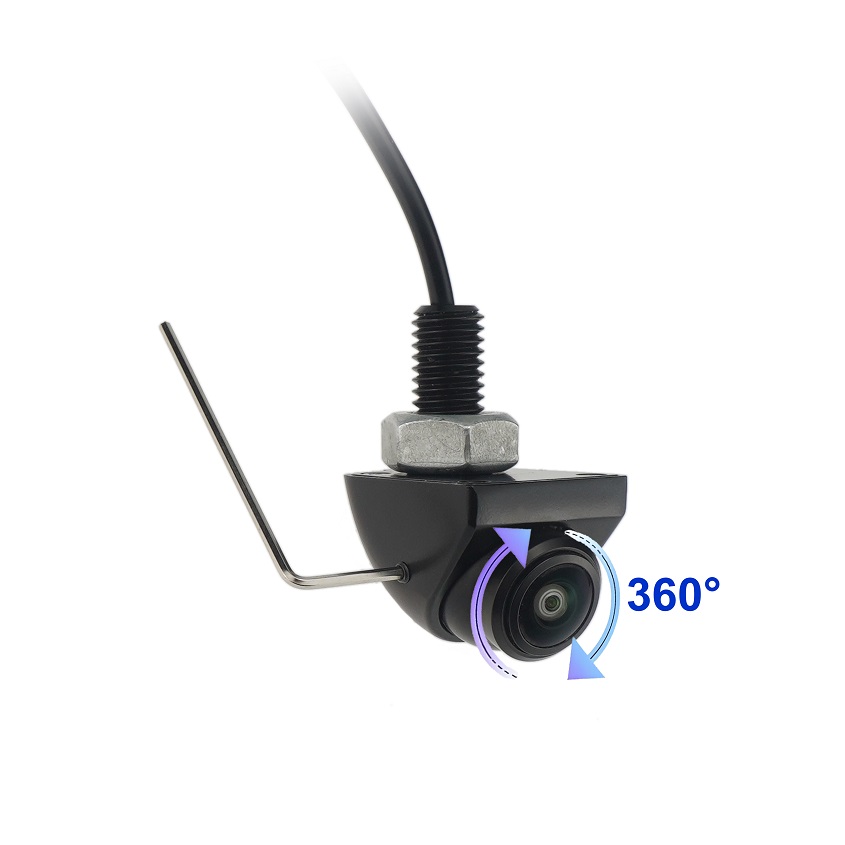

After loosening with a wrench, the angle position can be adjusted.

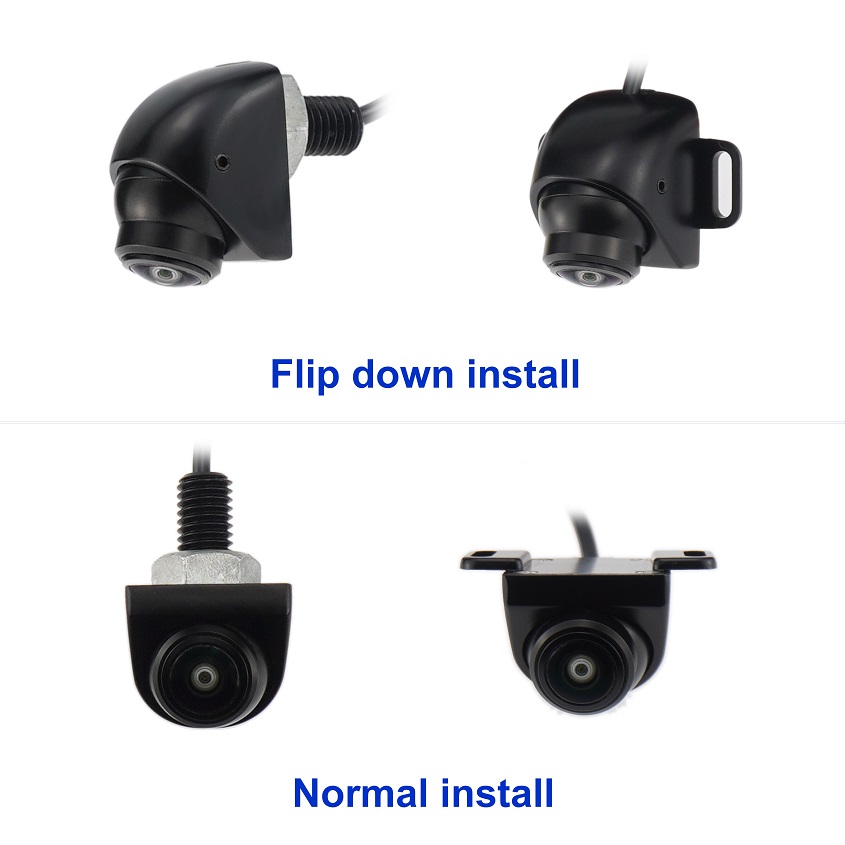

Flip down and Normal 2 mounting method: the usual installation position is near the reverse light,If a higher mounting position is required, such as on Vans or RVs, a flip-down mounting method can be used.

Metal screw tube or Metal lid two types for install: You can choose the one, which ones is better for install, it will be.

Product Specs:

Category	Parameter
Image Sensor	1/2.9" CMOS
Resolution	AHD: 1080p, CVBS: 700TVL
TV System	PAL/NTSC
Viewing angle	AHD: 160 Degree(Horizontal angle), CVBS: 150 Degree
Power supply	DC 12V
Waterproof Level	IP69
Guide Line	Guide line on/off optional
Image	Mirror on/off optional
S/N ratio	Better than 60dB
Minimum Illumination	0.1 Lux
Video Output	1.0 Vp-p/75 Ohm
Length of video cable	Faulty was 6M, 10M or 15M optional
Connector	RCA phono
Operating Temperature	-20℃～70℃, RH 95% MAX
Storage Temperature	-30℃～80℃, RH 95% M
