    Item number: ST-CMOS-360, ECE R10 Certificate, 360 Degree Rotatable Mini Reverse Camera - Adjustable Angle Compact Backup Camera for Precision Parking

    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    • 360 Degree Rotatable Car Mini Reverse Camera
    Inquiry Now

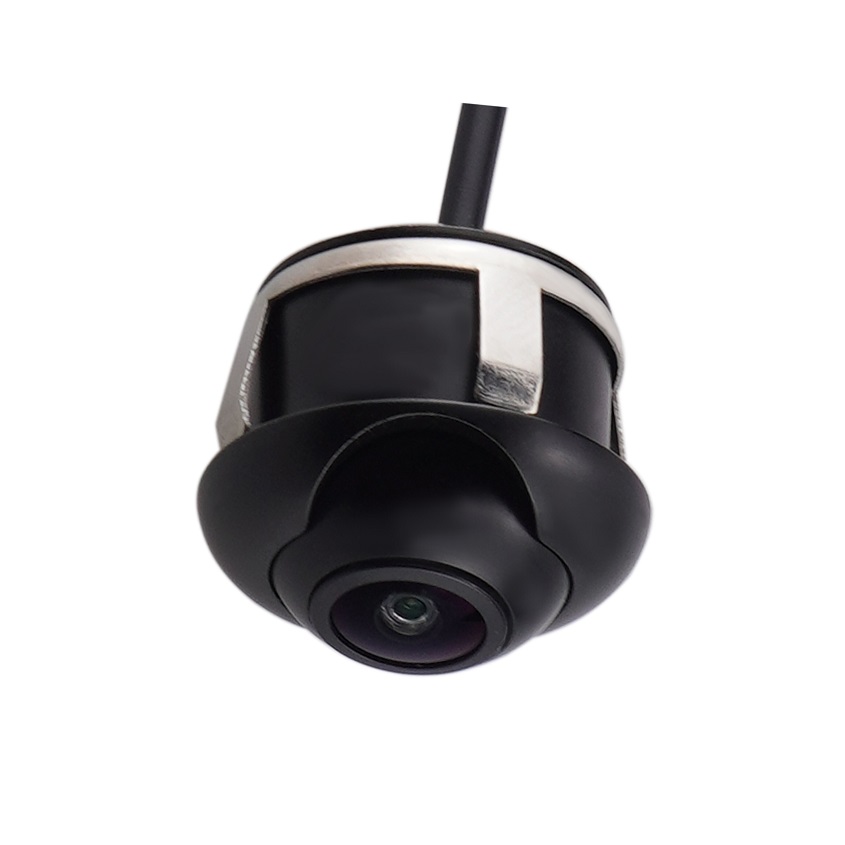

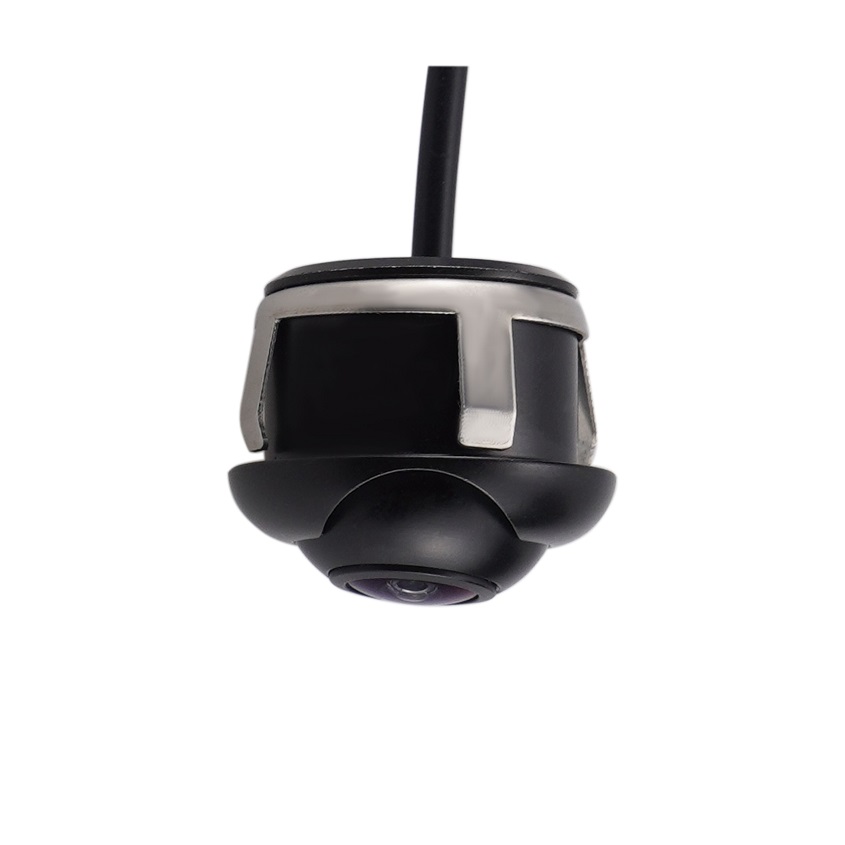

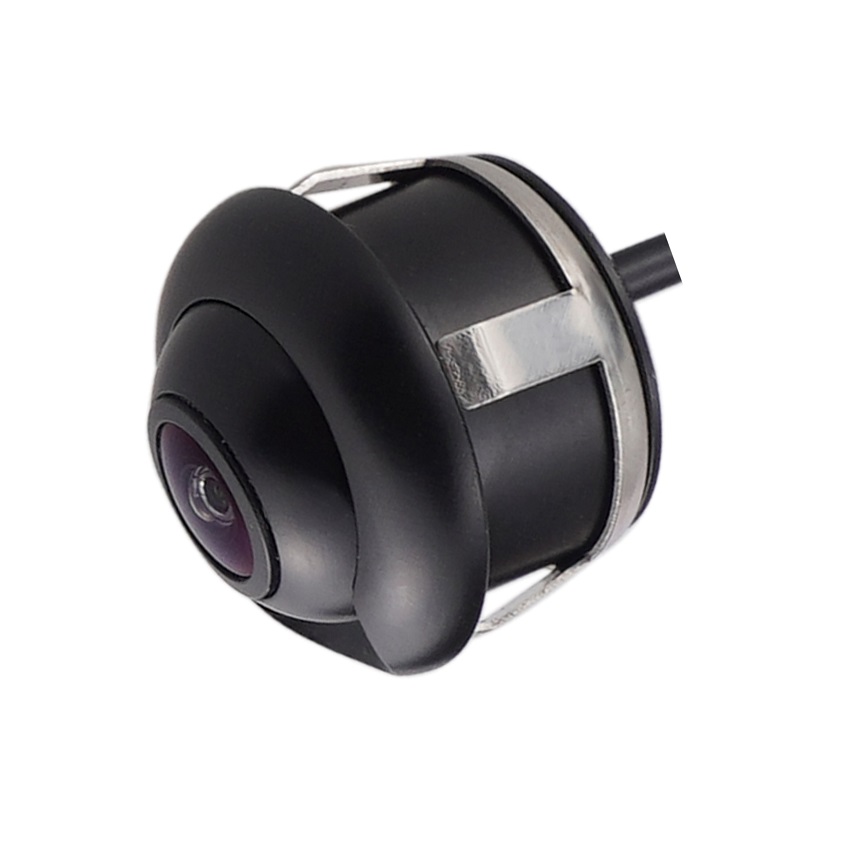

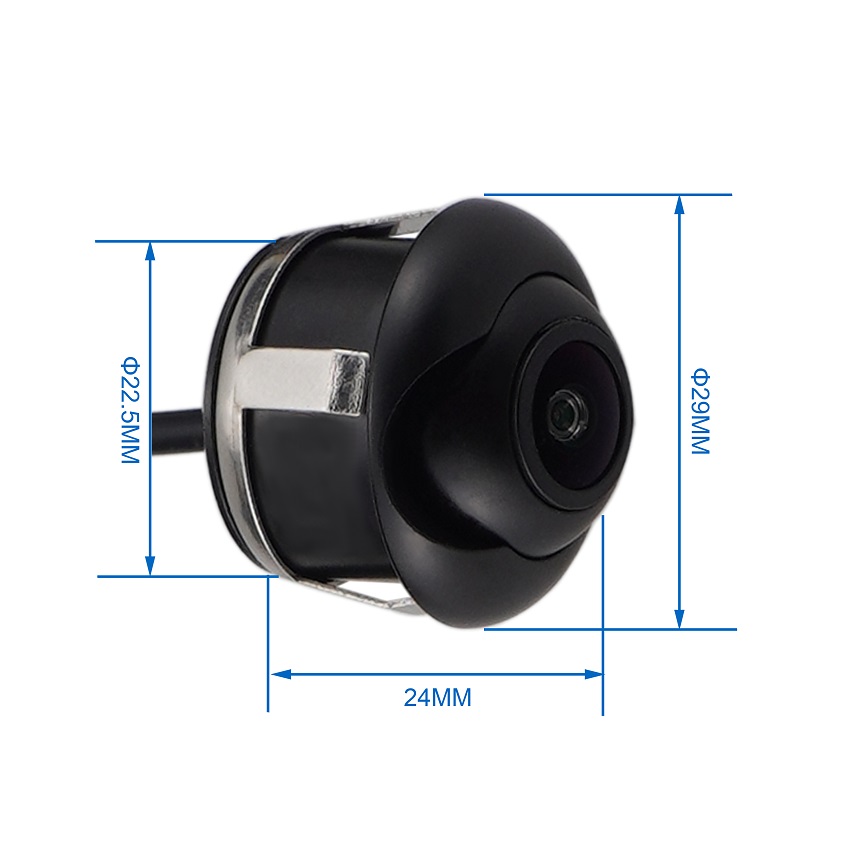

    360 Degree Rotatable Car Mini Reverse Camera

    Key Features:

    • 360° rotatable lens, adjustable viewing direction for complete coverage
    • Mini compact design ,easy to install and blends seamlessly with the vehicle body
    • 700TVL High-definition video output
    • Waterproof & dustproof (IP68 rating) ,suitable for all weather

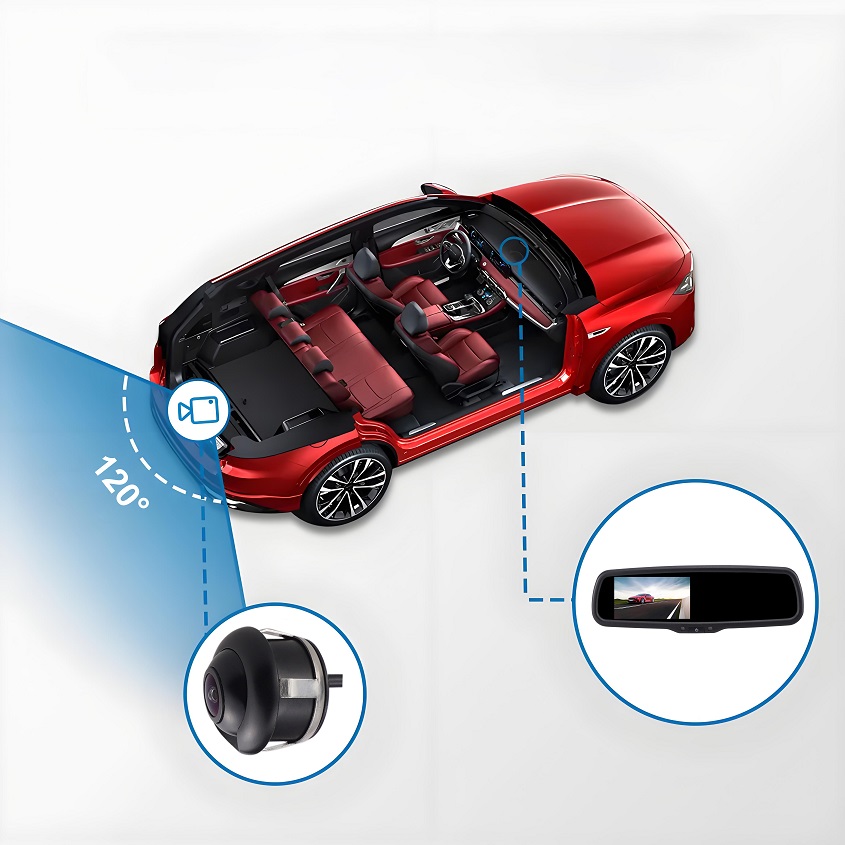

    • Flexible mounting options ,it can be used as a front, rear, or side camera
    • Approvals & Certification: E-Mark & CE

    Product Specs:

    Category Parameter
    Image Sensor 1/3" PC7070 or PC7080 CMOS sensor
    Resolution 700TVL
    TV System PAL/NTSC
    Viewing angle 170 Degree
    Power supply DC 12V
    Waterproof Level IP68

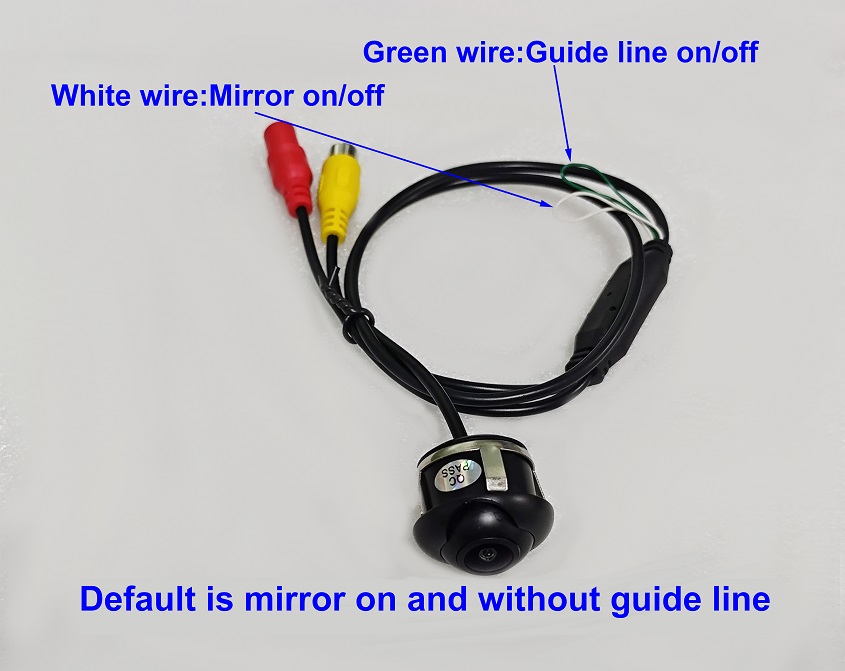

    Guide  Line Guide line on/off optional
    Image  Mirror on/off optional
    S/N ratio  Better than 60dB
    Minimum Illumination 0.1 Lux
    Video Output 1.0 Vp-p/75 Ohm
    Drill Size 22.5MM
    Length of  video cable Faulty was 6M, 10M or 15M optional
    Connector RCA phono
    Operating Temperature  -20℃～70℃, RH 95% MAX
    Storage Temperature -30℃～80℃, RH 95% MAX



    Product Applications:

    For Cars, Pick-up, SUVs,Vans etc.

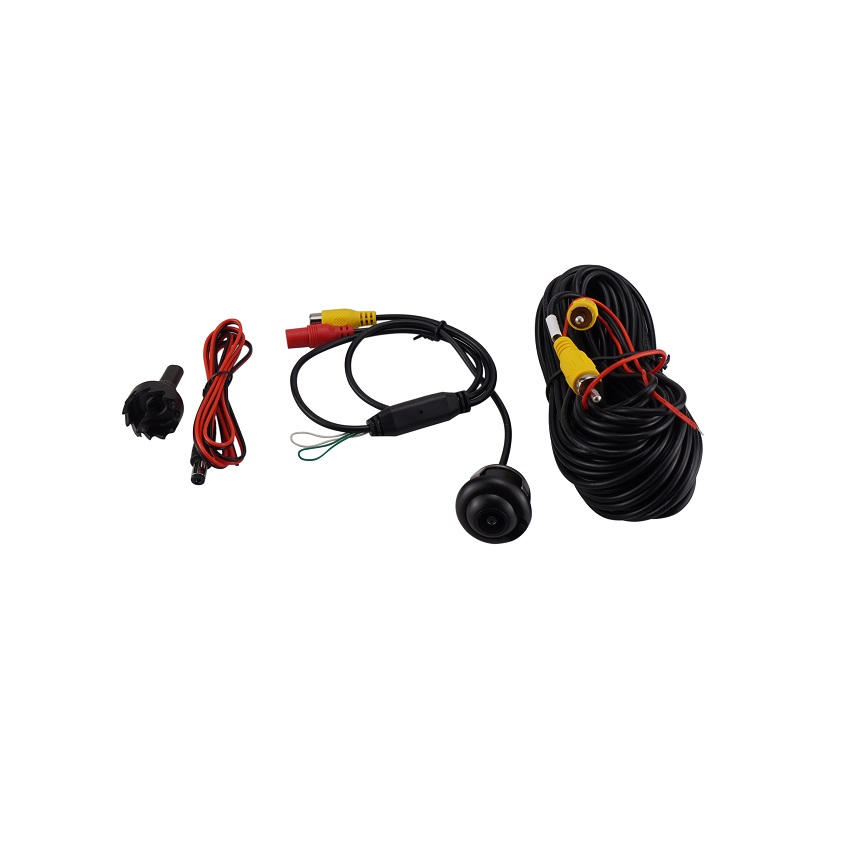

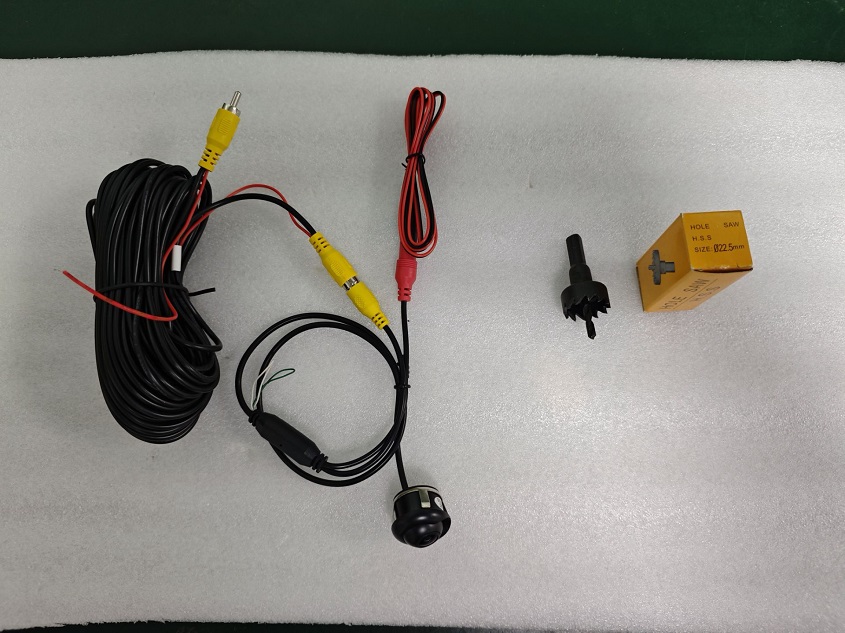

    In the box:

    1 x Car camera
    1 x  Power cable
    1 x 6M length video cable
    1 x 22.5mm drill
